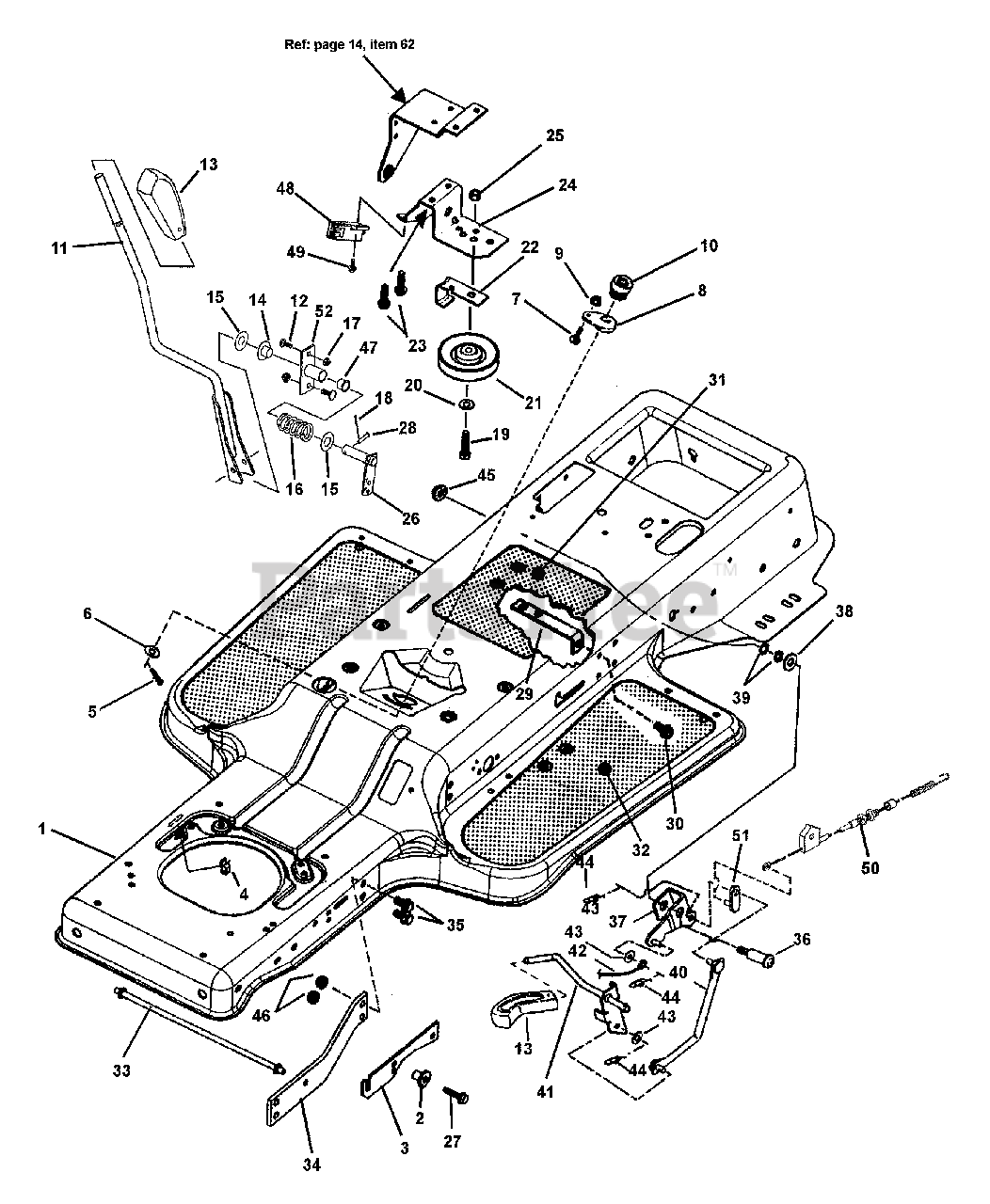

WLT 145H38GBV (84657) - Snapper 38" Lawn Tractor, 14.5hp Blade Engagement & Transmission Controls Parts Diagram

38" Lawn Tractor, 14.5hp

Blade Engagement & Transmission Controls Parts Diagram

  • Title

1

Snapper 7073345

FRAME, Tractor (1 Piece)

$

$

Currently unavailable

2

Snapper 7024616

BUSHING, Flange
(Superseded to 7024616YP)

$

$

Not available

3

Snapper 7033488

BRACKET, Hood Pivot
(Superseded to 7033488YP)

$17.99

$

Usually ships in 2-12 days

0

4

Snapper 7028630

CLIP, Wire

$

$

Currently unavailable

5

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

$4.49

$

In Stock, only 4 left!

0

6

Snapper 7014296

WASHER, 1/2 Shim
(Superseded to 7014296YP)

$4.49

$

In Stock, only 4 left!

0

7

Snapper 7091573

BOLT, 1/4-20 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 7091573YP)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7052562

ASSEMBLY, Steering Adjuster
(Superseded to 7052562YP)

$43.99

$

Usually ships in 2-12 days

0

9

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

10

Snapper 7022368

GEAR, Steering Pinion
(Superseded to 7022368YP)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7058874

LEVER, Shift (Upper)

$

$

Not available

12

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

13

Snapper 7023656

KNOB, Deck Lift Lever
(Superseded to 7023656YP)

$5.99

$

In Stock, Qty 6

0

14

Snapper 7019245

BUSHING, 314 Flange
(Superseded to 7019245YP)

$4.49

$

In Stock, Qty 8

0

15

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 7010754

SPRING, Shift Detent
(Superseded to 7010754YP)

$6.99

$

Usually ships in 2-12 days

0

17

Snapper 7091601

NUT, 5/16-18 Flange Lock
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

Note: Was 90037

$3.99

$

In Stock, Qty 20+

0

19

Snapper 7091497

SCREW, 3/8-16 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

20

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

21

Snapper 7024344

PULLEY, Idler
(Superseded to 7024344YP)

$39.99

$

Usually ships in 2-12 days

0

22

Snapper 7033556

GUIDE, Pulley Belt
(Superseded to 7033556YP)

$9.99

$

Usually ships in 2-12 days

0

23

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Swage
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

24

Snapper 7035524

SUPPORT, PTO Lever
(Superseded to 7035524YP)

$22.99

$

Usually ships in 2-12 days

0

25

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, Grade 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

26

Snapper 7040598

STRUCTURE, Arm
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

27

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tapping
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, only 3 left!

0

28

Snapper 7023914

PIN, 1/4 x 1-5/8" Clevis
(Superseded to 7023914YP)

$

$

Not available

29

Snapper 7033825

ANCHOR, Blade Brake
(Superseded to 7033825YP)

$21.99

$

Usually ships in 2-12 days

0

30

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

31

Snapper 7072756

DECAL, Instruction Frame Top
(Superseded to 7072756YP)

$17.99

$

In Stock, only 1 left!

0

31

Snapper 7072754

DECAL, Instruction Frame Top (Euro)

$

$

Currently unavailable

32

Snapper 7028203

PAD, Foot (Rubber Deluxe)
(Superseded to 7028203YP)

$22.99

$

Usually ships in 2-12 days

0

33

Snapper 7046900

GUIDE, Belt

$

$

Not available

34

Snapper 7046899

BRACE, Frame
(Superseded to 7046899YP)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 7091588

BOLT, 3/8-16 x 3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 6

0

36

Snapper 7024518

BOLT, 1/2-13 Shoulder

$

$

Not available

37

Snapper 7041238

WELDMENT, Bellcrank PTO
(Superseded to 7041238YP)

$31.99

$

In Stock, only 1 left!

0

38

Snapper 7031036

WASHER, Thrust
(Superseded to 7031036YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7090509

WASHER, 1/2" Internal Tooth Lock
(Superseded to 7090509YP)

$4.49

$

In Stock, Qty 10

0

40

Snapper 7041237

WELDMENT, PTO Link
(Superseded to 7041237YP)

$29.99

$

Usually ships in 2-12 days

0

41

Snapper 7042598

WELDMENT, PTO Lever
(Superseded to 7042598YP)

$44.99

$

Usually ships in 2-12 days

0

42

Snapper 7029152

CABLE, 33 Blade (33" Deck)
(Superseded to 7029152YP)

$20.99

$

Usually ships in 2-12 days

0

42

Snapper 7046896

CABLE, PTO (38" Deck)
(Superseded to 7046896YP)

$39.99

$

Usually ships in 2-12 days

0

43

Snapper 7090500

WASHER, 7/16" Flat

$2.99

$

In Stock, Qty 7

0

44

Snapper 7091593

COTTER PIN, 3/8 Self-Lock
(Superseded to 703355)

Note: Was 24159

$3.99

$

In Stock, Qty 14

0

45

Snapper 7090619

NUT, 1/2-13 Hex Flange Lock, Grade 5
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

46

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

47

Snapper 7019246

BUSHING, 3/4 Flange
(Superseded to 7019246YP)

$4.49

$

Usually ships in 2-12 days

0

48

Snapper 7023355

SWITCH, DPDT NC/NO
(Superseded to 7023355YP)

$17.99

$

In Stock, Qty 20+

0

49

Snapper 7091240

SCREW, #10-32 x 5/8" Self-Tap.
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

50

Snapper 7075366

ASSEMBLY, Cable
(Superseded to 7075366YP)

Note: Was 73222

$24.99

$

Usually ships in 2-12 days

0

51

Snapper 7058749

WELDMENT, Bracket
(Superseded to 7058749YP)

$19.99

$

Usually ships in 2-12 days

0

52

Snapper 7058876

WELDMENT, Pivot Plate
(Superseded to 7058876YP)

$29.99

$

Usually ships in 2-12 days

0
