WLT 145H38GBV (84657) - Snapper 38" Lawn Tractor, 14.5hp 38" Cutting Deck, Belts, Brakes Parts Diagram

38" Lawn Tractor, 14.5hp

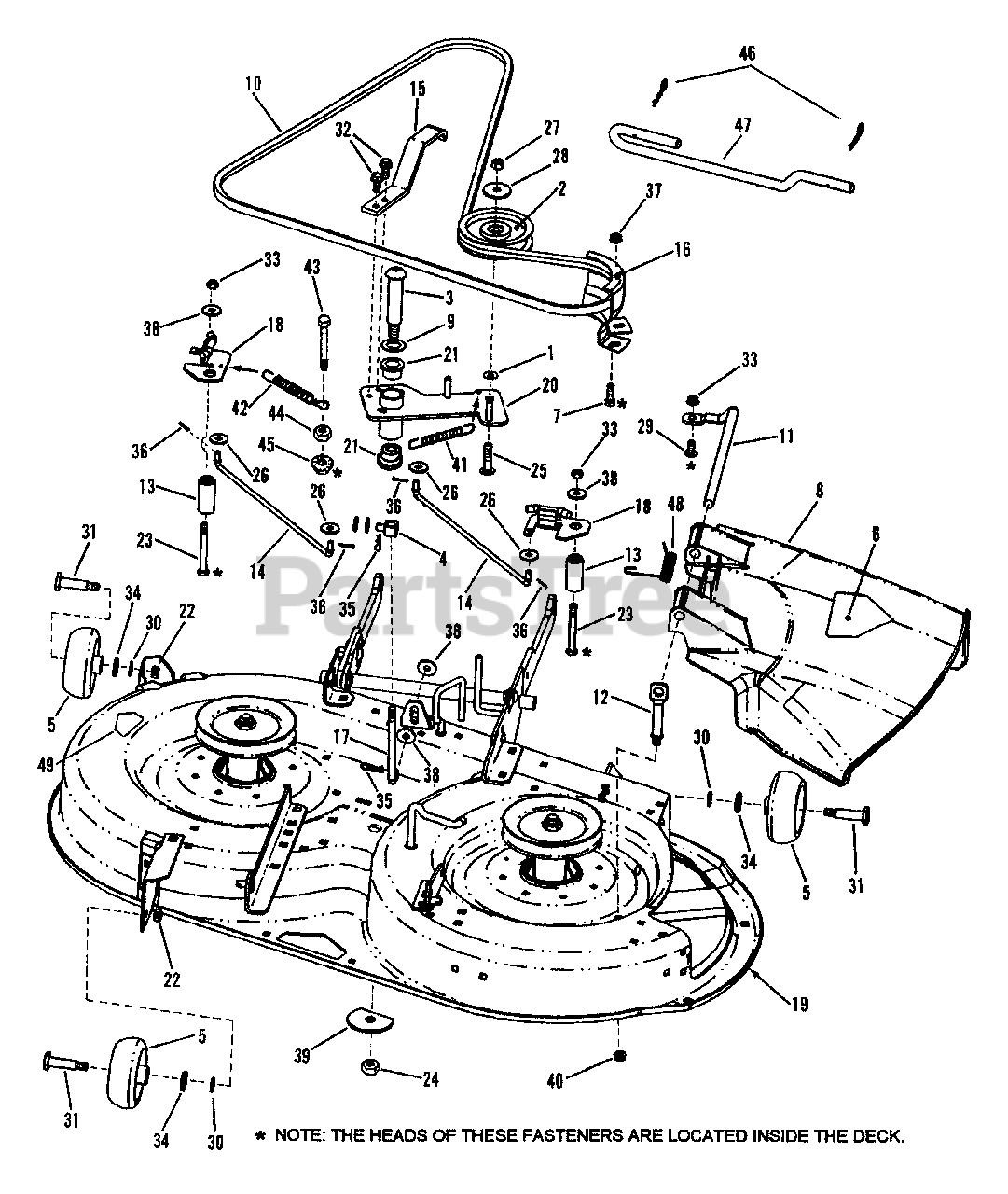

38" Cutting Deck, Belts, Brakes Parts Diagram

  • Title

1

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

2

Snapper 7018574

IDLER, 4-1/8" Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

3

Snapper 7024604

BOLT, 3/4" Dia. X 3.01 Shoulder; 1/2-13 Thread

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7024607

SWIVEL, Brake Link
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

5

Snapper 7026122

WHEEL, Gage 38" Deck
(Superseded to 7026122SM)

$10.99

$

In Stock, only 2 left!

0

6

Snapper 7013010

DECAL, CPSC Cut Finger
(Superseded to 7013010SM)

Note: Was 26831

$9.49

$

In Stock, Qty 11

0

7

Snapper 7027168

SCREW, 5/16-18 x 1" Hex Head Cap, Grade 5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7029425

CHUTE, Discharge 38" Deck
(Superseded to 7104733YP)

$87.99

$

In Stock, Qty 19

0

9

Snapper 7029617

WASHER, 3/4" I.D. Flat
(Superseded to 7029617YP)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7035500

BELT, 38" Deck Dual Spindle Brake
(Superseded to 7035500YP)

$

$

Not available

11

Snapper 7035502

ROD, Pivot, Side Discharge
(Superseded to 7035502SM)

$32.99

$

Usually ships in 2-12 days

0

12

Snapper 7035503

ROD, Mounting, Side Discharge
(Superseded to 7035503SM)

$14.99

$

Usually ships in 2-12 days

0

13

Snapper 7035507

PIVOT, Dual Brake

$

$

Not available

14

Snapper 7035510

BRAKE LINK, Dual Spindle Brake
(Superseded to 7035510YP)

$41.99

$

Usually ships in 2-12 days

0

15

Snapper 7035518

LEVER, Engagement

$54.99

$

Usually ships in 2-12 days

0

16

Snapper 7035529

GUARD, Belt, 38" Dual Spindle Brake

$

$

Not available

17

Snapper 7036586

J-BOLT, 3/8-16 x 6-1/4"

$16.99

$

Usually ships in 2-12 days

0

18

Snapper 7042595

ARM, Brake
(Superseded to 7042595YP)

$153.99

$

Usually ships in 2-12 days

0

19

Snapper 7054096

ASSEMBLY, 38" Dual Brake Deck
(Superseded to 7061951YP)

$1453.99

$

Usually ships in 2-12 days

0

20

Snapper 7042596

ARM, Idler, Dual Brake

$

$

Not available

21

Snapper 7035496

BEARING, 3/4" I.D.
(Superseded to 7035496YP)

$8.99

$

Usually ships in 2-12 days

0

22

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, Grade 5
(Superseded to 703458)

$4.99

$

In Stock, Qty 14

0

23

Snapper 7091830

SCREW, 5/16-18 x 3" Hex Head Cap, Gr. 5
(Superseded to 703870)

Note: Was 90553

$4.49

$

Usually ships in 2-12 days

0

24

Snapper 7090975

NUT, 1/2-13 Hex Center Lock
(Superseded to 703894)

$3.49

$

In Stock, Qty 9

0

25

Snapper 7091810

BOLT, 3/8-16 x 1-3/4" Short Neck Carriage, Gr. 5
(Superseded to 703879)

Note: Was 91158

$3.99

$

In Stock, Qty 5

0

26

Snapper 7091294

WASHER, 1/4" I.D. Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091302

NUT, 3/8-16 Hex, Grade 5
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper 7091331

WASHER, 13/32" I.D. Flat
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

29

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, Gr. 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

30

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091526

BOLT, 5/8" Dia. Shoulder, 3/8-24 Thread
(Superseded to 7091526SM)

$

$

Not available

32

Snapper 7091541

SCREW, 5/16-18 x 3/4" Self-Tapping
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, Grade 5
(Superseded to 703164)

$3.49

$

In Stock, Qty 19

0

34

Snapper 7091587

WASHER, 1/2" I.D. Flat
(Superseded to 704123)

$4.49

$

In Stock, only 3 left!

0

35

Snapper 7091310

PIN, #13 Hair
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

36

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7091601

NUT, 5/16-18 Hex, Grade 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

38

Snapper 7091675

WASHER, 11/32" I.D. Flat
(Superseded to 7091675YP)

$3.99

$

Usually ships in 2-12 days

0

39

Snapper 7091775

WASHER, 1/2" I.D. x 2-1/2" O.D. Special "D"
(Superseded to 7091775SM)

$7.49

$

Usually ships in 2-12 days

0

40

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

41

Snapper 7012264

SPRING
(Superseded to 7012264YP)

$6.99

$

In Stock, Qty 16

0

42

Snapper 7029025

SPRING, Extension
(Superseded to 7029025YP)

$5.99

$

In Stock, only 3 left!

0

43

Snapper 7091732

SCREW, 1/4-20 x 2-3/4" Hex Head Cap, Grade 5

Note: Was 90971

$

$

Not available

44

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5
(Superseded to 703127)

Note: Was 90063

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7091545

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 2 left!

0

46

Snapper 7091596

HAIRPIN
(Superseded to 7091596YP)

$4.49

$

Usually ships in 2-12 days

0

47

Snapper 7027471

PIN, Deck Hanger

$

$

Not available

48

Snapper 7035813

SPRING, Side Discharge
(Superseded to 7035813SM)

$24.99

$

In Stock, only 1 left!

0

49

Snapper 7026154

DECK, 38 Inch
(Superseded to 7026154SM)

$6.49

$

Usually ships in 2-12 days

0
