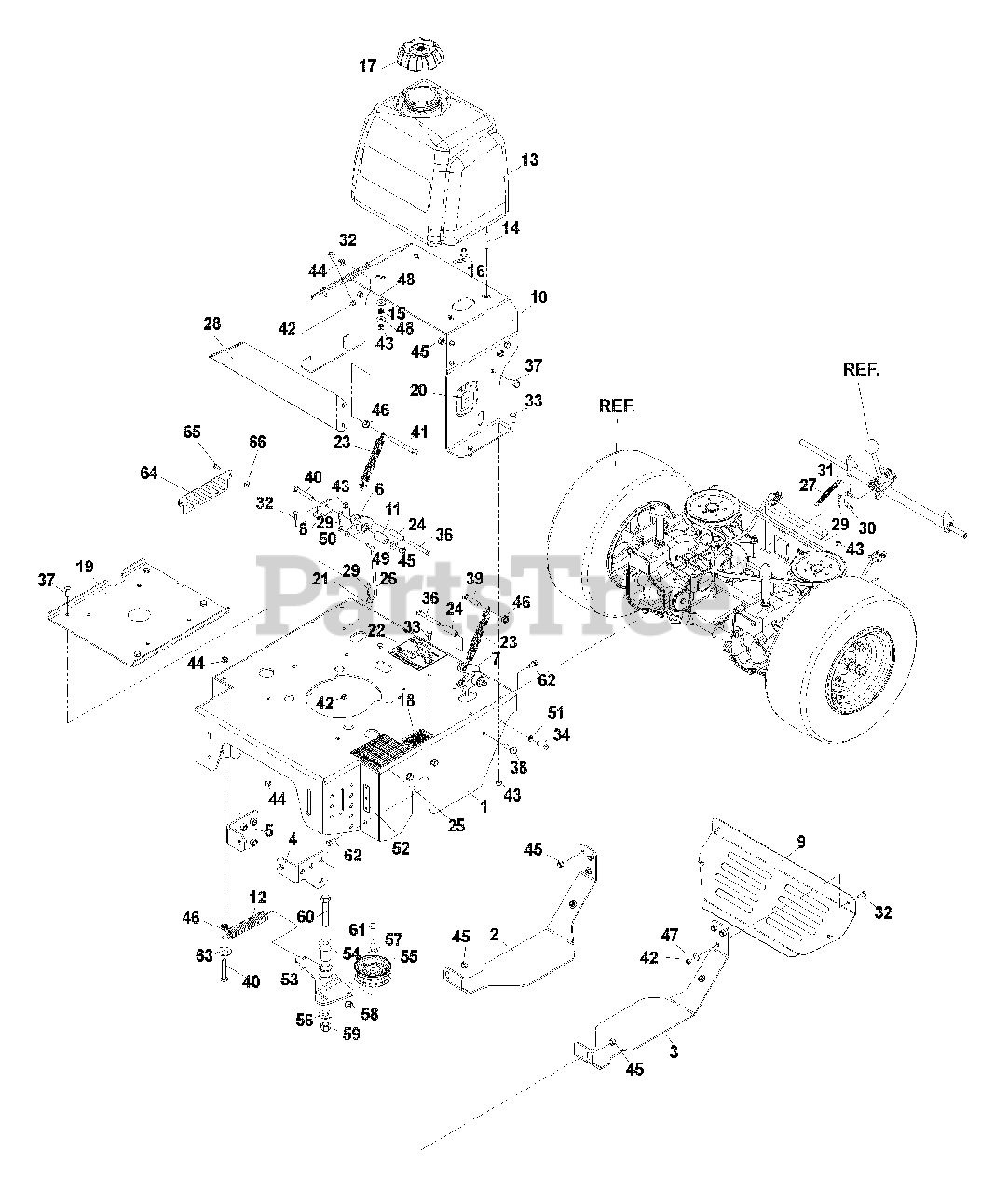

WHT 4817 (968999238) - Husqvarna 48" Walk-Behind Mower (2004-09) Power Unit Parts Diagram

48" Walk-Behind Mower

Power Unit Parts Diagram

  • Title

1

Husqvarna 539110572

REAR DECK W/DECALS

$

$

Not available

2

Husqvarna 539109102

SKID PLATE, RIGHT

$84.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109101

SKID PLATE, LEFT

$133.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539109026

NUT PLATE, LEFT

$17.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109028

NUT PLATE, RIGHT

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539109135

BELLCRANK, RIGHT, ETS

$37.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109122

BELLCRANK, LEFT, ETS

$47.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109039

CONTROL BRACKET

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539109030

REAR GUARD

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539109022

TANK SUPPORT

$133.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101977

TRACTION SPRING

$17.99

$

In Stock, Qty 10

0

13

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

15

Husqvarna 539102845

SPRING, TANK MOUNT

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 539102650

HOSE BARB, 90°

$

$

Not available

17

Husqvarna 539106188

FUEL CAP
(Superseded to 539130394)

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101881

DECAL, PROP 65
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

19

Husqvarna 539109099

PLATE, ENGINE

$

$

Not available

20

Husqvarna 539104789

DECAL, SMALL CROWN

$

$

Not available

21

Husqvarna 539105744

DECAL, DANGER, BELT DRIVES

$6.99

$

In Stock, only 2 left!

0

22

Husqvarna 539109763

DECAL, BYPASS/ BRAKE

$

$

Not available

23

Husqvarna 539916159

SPRING

$7.49

$

In Stock, only 4 left!

0

24

Husqvarna 539109023

SPACER

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109772

DECAL, HEIGHT

$

$

Not available

26

Husqvarna 539109015

CONTROL LINKAGE

$12.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539977250

SPRING

$

$

Not available

28

Husqvarna 539109097

PANEL

$

$

Not available

29

Husqvarna 539976988

HAIRPIN COTTER

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109033

BRAKE ENGAGEMENT LINKAGE

$7.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990037

PIN COTTER, 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990580

HCS, 1/4-20 X 3/4

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539976934

HCS, 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539990209

HCS, 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101721

HCS, 5/16-18 X 2 3/4

$4.99

$

In Stock, Qty 7

0

37

Husqvarna 539990134

HCS, 3/8-16 X 3/4

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990582

HCS, 3/8-16 X 1

$

$

Not available

39

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990629

HCS, 3/8-16 X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102754

HCS, 3/8-16 X 3 1/2, GR8

$4.99

$

In Stock, Qty 13

0

42

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

43

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539990546

NUT, 3/8C, CENTERLOCK

$

$

Not available

45

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539990613

NUT, 3/8C

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

48

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990188

WASHER, 5/16, SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

51

Husqvarna 539990187

LOCK WASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

Husqvarna 539109104

HARNESS, LOWER

Note: (NOT SHOWN)

$

$

Not available

52

Husqvarna 539110508

DECAL, POSITION

$

$

Not available

53

Husqvarna 539111449

IDLER ARM, WELDMENT

$84.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

56

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

58

Husqvarna 539990546

NUT, 3/8C, CENTER LOCK

$

$

Not available

59

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

60

Husqvarna 539101332

HCS, 1/2-13 X 2 3/4

$5.99

$

In Stock, only 3 left!

0

61

Husqvarna 539990730

HCS, 3/8-16 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539990563

HCS, 3/8-16 X 1

$1.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539990250

WASHER, 1/2, SAE

$1.99

$

In Stock, only 2 left!

0

64

Husqvarna 539111017

FAN GUARD

$18.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539991034

SCREW, #10-24 X 5/8, WASHER HEAD

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539105408

WASHER, #10

$3.99

$

In Stock, Qty 12

0

Husqvarna 539109867

CLAMP, DOUBLE TUBE,

Note: (NOT SHOWN)

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

WIRE TIE

Note: (NOT SHOWN)

$5.99

$

Usually ships in 3-10 days

0
