WHF 6123 - Husqvarna 61" Walk-Behind Mower (2009-09) WHEELS & TIRES Parts Diagram

61" Walk-Behind Mower

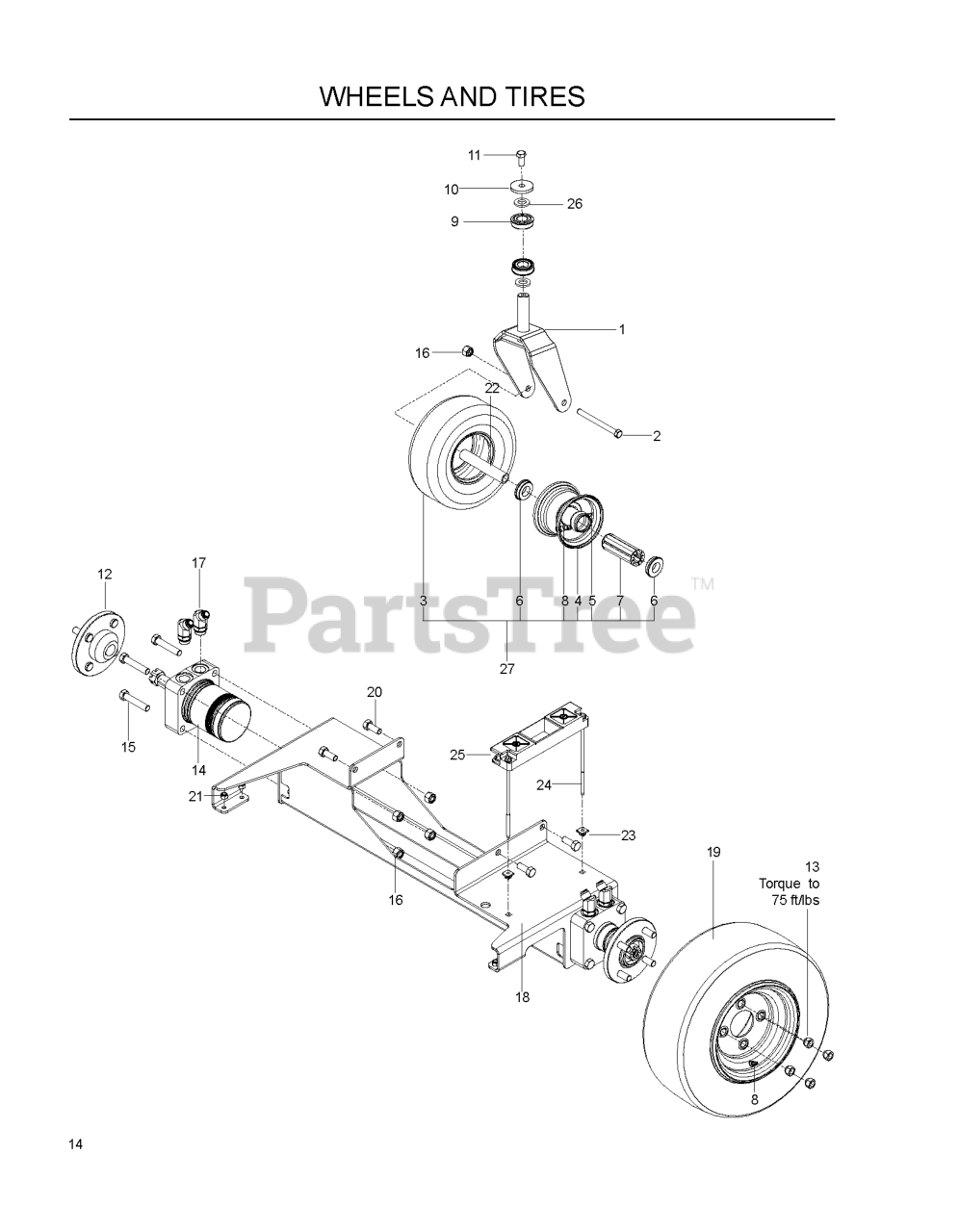

WHEELS & TIRES Parts Diagram

  • Title
9

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539112224

LIFT SHAFT, REAR

$

$

Not available

25

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112220

FRONT LIFT SHAFT

$188.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

8

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539112223

STRUT LINKAGE

$37.99

$

In Stock, Qty 5

0

10

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

17

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

19

$21.99

$

Usually ships in 3-10 days

0

26

$10.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

1

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539112234

PAWL, STOP

$

$

Not available

11

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539110808

CROSS LINK

$27.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

12

Husqvarna 539112230

HEIGHT ADUST PLATE

$21.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539112232

HEIGHT ADJUST PLATE, OUTER

$23.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

22

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105187

ANTI-SKID PAD

$3.49

$

In Stock, only 2 left!

0
