WHF 6123 (966947007) - Husqvarna 61" Walk-Behind Mower (2009-09) Frame Parts Diagram

61" Walk-Behind Mower

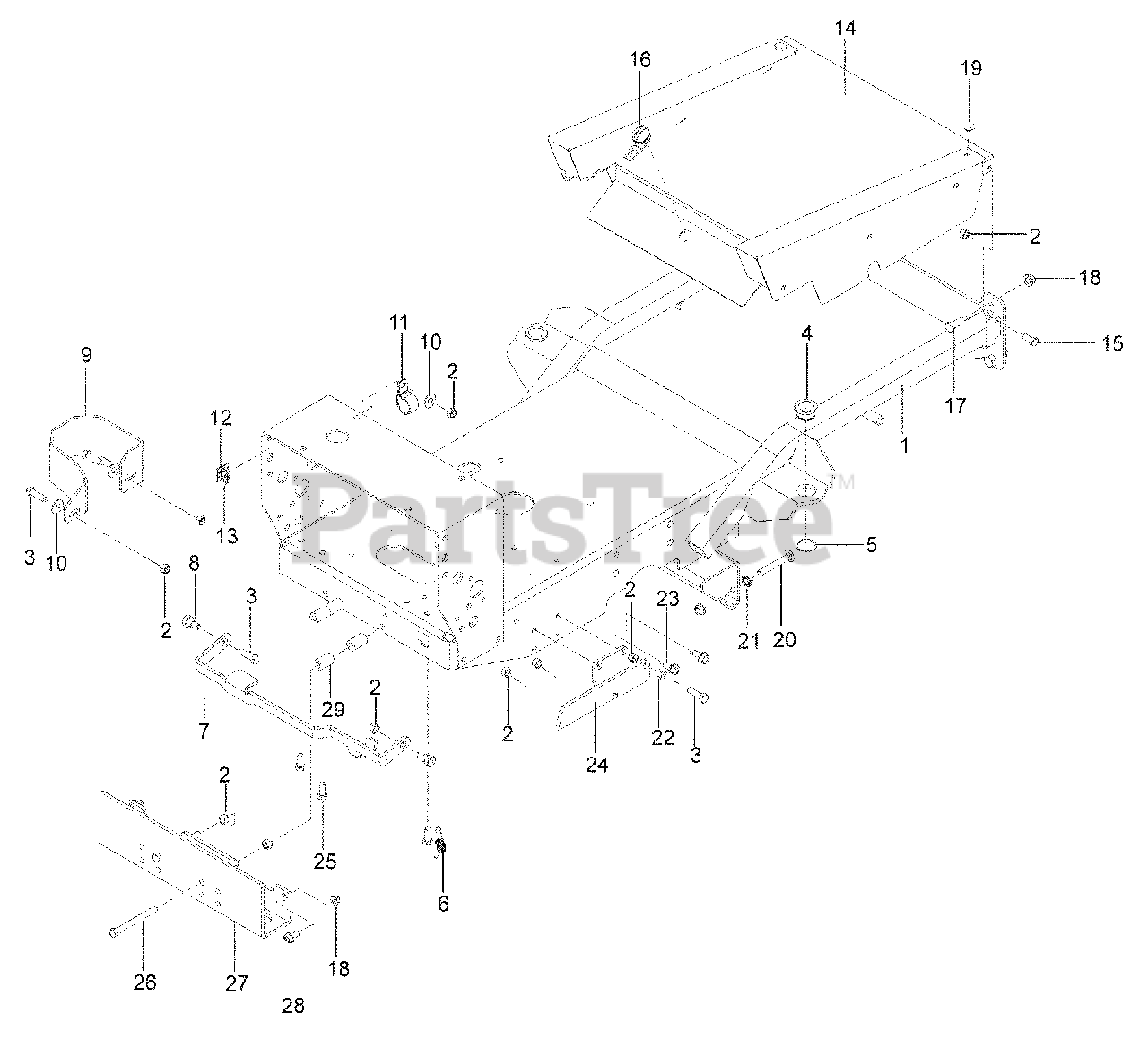

Frame Parts Diagram

  • Title

1

Husqvarna 525811402

CHASSIS

$

$

Not available

2

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 2 left!

0

4

Husqvarna 525344001

BUSHING, HOC

$

$

Not available

5

Husqvarna 522989201

RING, SNAP

$

$

Not available

6

Husqvarna 510206101

SPRING, EXTENSION

$

$

Not available

7

Husqvarna 525851002

BAR, THROW OUT

$

$

Not available

8

Husqvarna 539113621

SB 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505189002

GUARD, FILTER

$

$

Not available

10

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107891

CLIP

$2.99

$

In Stock, only 1 left!

0

12

Husqvarna 539110863

MOUNTING BLOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539976856

WIRE TIE

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 523031601

COVER, CENTER

$

$

Not available

15

Husqvarna 539990134

HCS 3/8-16 x ¾

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 510126701

LATCH, SHORT WING

$

$

Not available

17

Husqvarna 539108369

HCS ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 521991101

NUT ½ HEX FLG NYLOC
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

19

Husqvarna 539102587

GROMMET

$5.99

$

In Stock, Qty 15

0

20

Husqvarna 539130325

RHSNB 3/8-16 x 2¾

$

$

Not available

21

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990130

NUT 3/8-16 HEX

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539107476

BOLT 3/8-16 x 1 THD FRM

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 522983402

PLATE, SUPPORT

$

$

Not available

25

Husqvarna 539108507

Hcs 3/8-16 x 7/8

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539991126

HCS 3/8-16 x 3¾

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574311502

BUMPER

$

$

Currently unavailable

28

Husqvarna 574210601

HFFS ½-13 x 1

$

$

Not available

29

Husqvarna 539103543

SPACER

$7.49

$

In Stock, only 2 left!

0
