WHF 6123 (966947007) - Husqvarna 61" Walk-Behind Mower (2009-09) 61" Mower Deck Parts Diagram

61" Walk-Behind Mower

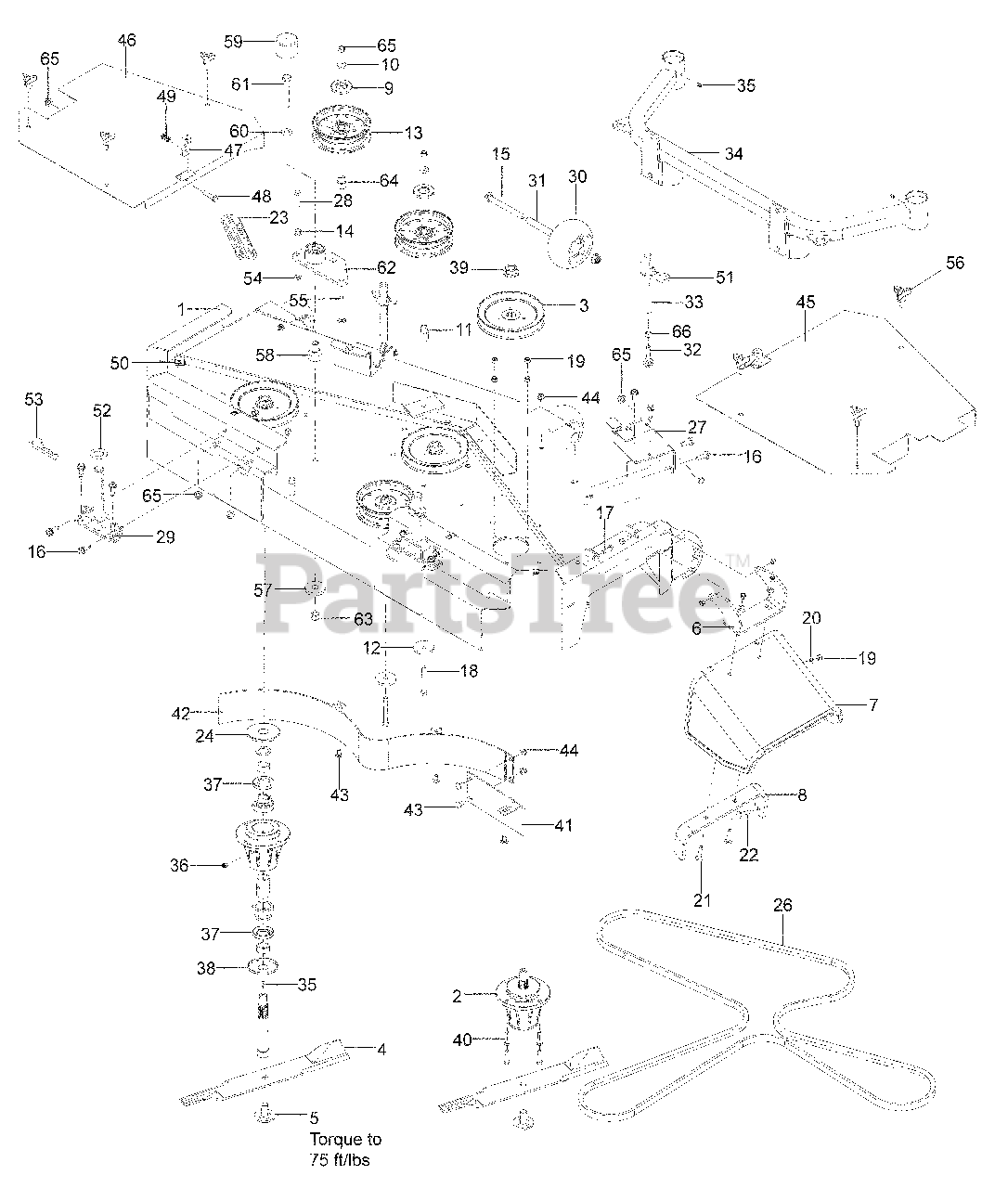

61" Mower Deck Parts Diagram

  • Title

1

Husqvarna 574615401

CUTTER DECK w/DECALS

$

$

Currently unavailable

2

Husqvarna 539131385

HOUSING ASM
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

3

Husqvarna 522023901

PULLEY

$68.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101733

BLADE, 21"

$21.99

$

In Stock, Qty 20+

0

5

Husqvarna 539119007

BLADE BOLT

$10.99

$

In Stock, only 3 left!

0

6

Husqvarna 539132583

HINGE, CHUTE

$

$

Not available

7

Husqvarna 539130903

CHUTE, RUBBER

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130922

REINFORCEMENT, BRCKT

$

$

Not available

9

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

10

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

12

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

13

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 4 left!

0

14

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 510022301

RHSNB ½-13 x 4¾

$

$

Not available

16

Husqvarna 539107476

BOLT 3/8-16 x 1 THD FRM

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

19

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

21

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

22

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539130690

SPRING

$12.99

$

In Stock, only 1 left!

0

24

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

25

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

26

Husqvarna 522811401

BELT, DECK

$102.99

$

Usually ships in 3-10 days

0

27

Husqvarna 505339602

SUPPORT, FRONT, RH

$

$

Not available

Husqvarna 505339502

SUPPORT, FRONT, LH

$

$

Not available

28

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

29

Husqvarna 525854001

PIN ASSEMBLY

$

$

Not available

30

Husqvarna 574169601

ROLLER, GAUGE

$17.99

$

Usually ships in 3-10 days

0

31

Husqvarna 574196401

TUBE, AXLE

$

$

Not available

32

Husqvarna 539113739

ROD END, RH

$14.99

$

Usually ships in 3-10 days

0

33

Husqvarna 525854101

ROD, HOC

$

$

Not available

34

Husqvarna 525853902

SUPPORT, CASTER

$

$

Not available

35

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539977326

POPPET, GREASE

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

38

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

39

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

40

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

41

Husqvarna 539105461

BAFFLE, CENTER

$97.99

$

Usually ships in 3-10 days

0

42

Husqvarna 523024902

BAFFLE, MAIN

$

$

Not available

43

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

44

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

45

Husqvarna 525818602

COVER, RH

$

$

Not available

46

Husqvarna 525818502

COVER, LH

$

$

Not available

47

Husqvarna 525833002

HOOK

$

$

Not available

48

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

49

Husqvarna 539132687

SPRING, COMPRESSION

$

$

Not available

50

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

51

Husqvarna 539109333

WASHER ¾ FLAT SAE

$4.99

$

In Stock, Qty 17

0

52

Husqvarna 539113987

SPACER

$

$

Not available

53

Husqvarna 525305801

HAIR PIN COTTER

$

$

Not available

54

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

55

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

58

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

59

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

60

Husqvarna 539115528

WASHER ½" BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539103433

HCS ½-13 x 3¼

$6.99

$

In Stock, only 4 left!

0

62

Husqvarna 539130391

ARM, IDLER w/ BEARINGS

$

$

Not available

63

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

64

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

65

Husqvarna 521996501

NUT 3/8-16 HEX FLG

$

$

Not available

66

Husqvarna 539990155

NUT 3/8-24 HEX GR 2

$4.99

$

In Stock, Qty 16

0
