WHF 6123 (966947007) - Husqvarna 61" Walk-Behind Mower (2009-09) 52" Mower Deck Parts Diagram

61" Walk-Behind Mower

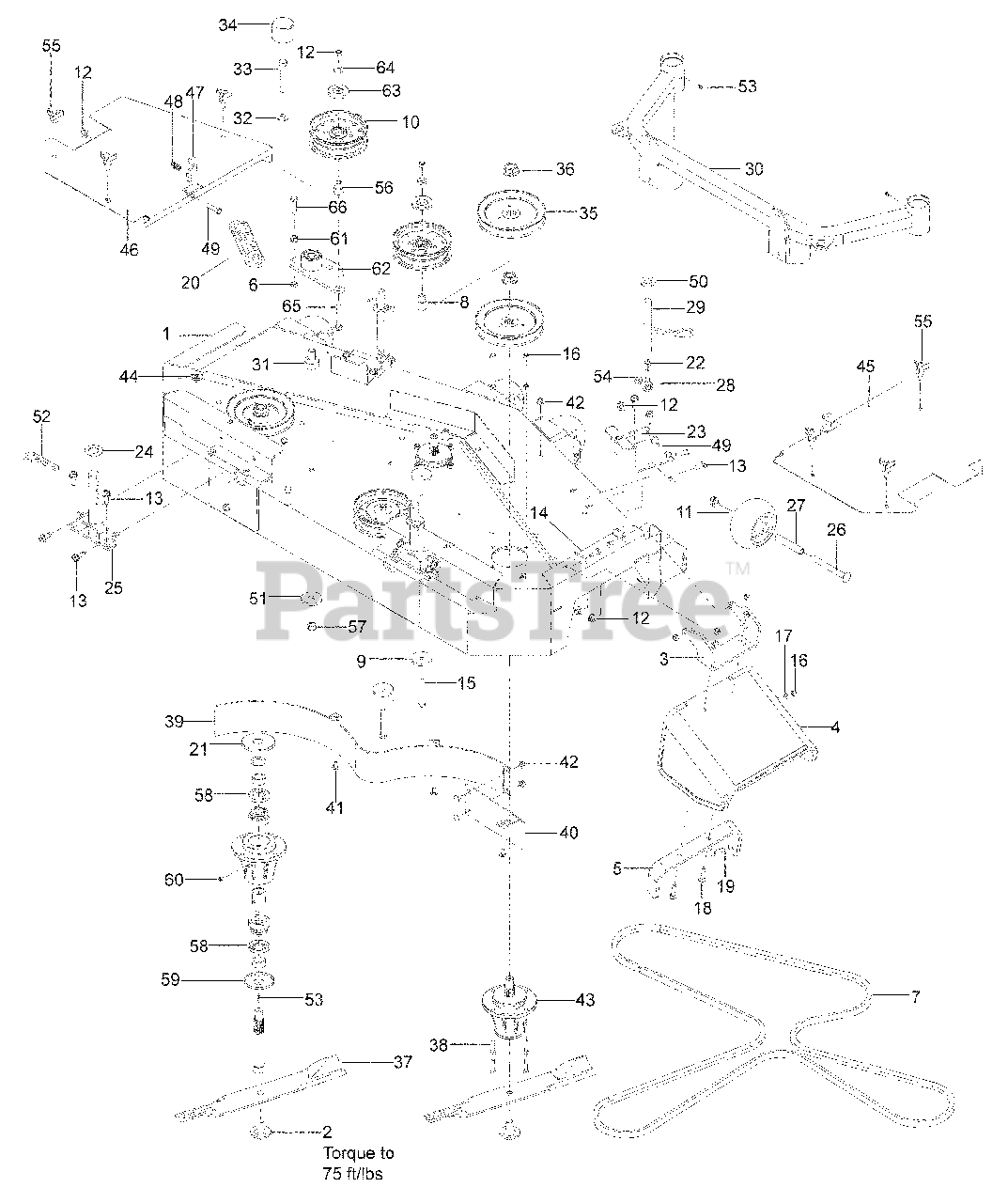

52" Mower Deck Parts Diagram

  • Title
1

Husqvarna 574615301

CUTTER DECK w/DECALS

$

$

Currently unavailable

2

Husqvarna 539119007

BLADE BOLT

$10.99

$

In Stock, only 3 left!

0

3

Husqvarna 539132583

HINGE, CHUTE

$

$

Not available

4

Husqvarna 539130903

CHUTE, RUBBER

$60.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539130922

REINFORCEMENT, BRCKT

$

$

Not available

6

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539106340

BELT, DECK

$133.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

9

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

10

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 4 left!

0

11

Husqvarna 574169601

ROLLER, GAUGE

$17.99

$

Usually ships in 3-10 days

0

12

Husqvarna 521996501

NUT 3/8-16 HEX FLG

$

$

Not available

13

Husqvarna 539107476

BOLT 3/8-16 x 1 THD FRM

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

16

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

18

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

19

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

$12.99

$

In Stock, only 1 left!

0

21

Husqvarna 539108450

SHIELD, DUST

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990155

NUT 3/8-24 HEX GR 2

$4.99

$

In Stock, Qty 16

0

23

Husqvarna 505339502

SUPPORT, FRONT, LH

$

$

Not available

Husqvarna 505339602

SUPPORT, FRONT, RH

$

$

Not available

$

$

Not available

25

Husqvarna 525854001

PIN ASSEMBLY

$

$

Not available

26

Husqvarna 510022301

RHSNB ½-13 x 4¾

$

$

Not available

27

Husqvarna 574196401

TUBE, AXLE

$

$

Not available

28

Husqvarna 539113739

ROD END, RH

$14.99

$

Usually ships in 3-10 days

0

29

$

$

Not available

30

Husqvarna 525853802

SUPPORT, CASTER

$

$

Not available

31

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 539115528

WASHER ½" BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539103433

HCS ½-13 x 3¼

$6.99

$

In Stock, only 4 left!

0

34

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

$

$

Not available

36

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

37

Husqvarna 539100341

BLADE, 18"

$

$

Not available

38

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539105457

BAFFLE, MAIN

$267.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539105453

BAFFLE, CENTER

$

$

Not available

41

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539112899

NUT 5/16-18 HEX FLG NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

43

Husqvarna 539131385

HOUSING ASM, 72
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 12

0

45

$

$

Not available

46

$

$

Not available

$

$

Not available

48

Husqvarna 539132687

SPRING, COMPRESSION

$

$

Not available

49

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 539109333

WASHER ¾ FLAT SAE

$4.99

$

In Stock, Qty 17

0

51

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

52

Husqvarna 525305801

HAIR PIN COTTER

$

$

Not available

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539109562

WASHER 3/8 x ¾

$4.99

$

In Stock, Qty 16

0

55

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

57

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

58

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

59

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

60

Husqvarna 539977326

POPPET, GREASE

$13.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539130391

ARM, IDLER w/ BEARINGS

$

$

Not available

63

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

64

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

65

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0
