WHF 5223 - Husqvarna 52" Walk-Behind Mower (2009-09) FRAME Parts Diagram

52" Walk-Behind Mower

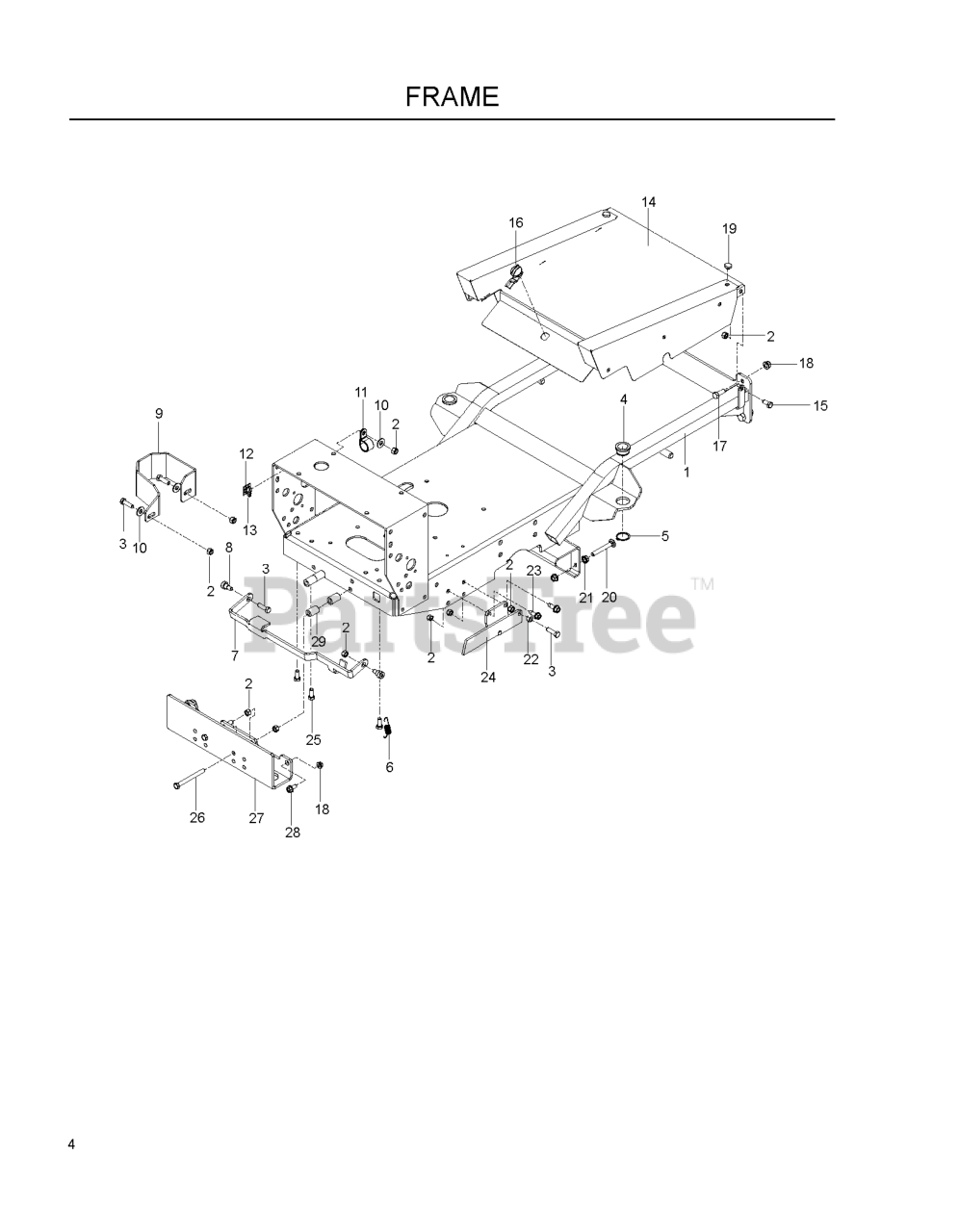

FRAME Parts Diagram

  • Title
4

Husqvarna 525344001

BUSHING, BRONZE HOC

$

$

Not available

23

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

10

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 539130325

RHSNB 3/8-16 x 2¾

$

$

Not available

9

Husqvarna 505189002

GUARD FILTER PAINTED

$

$

Not available

26

Husqvarna 539991126

HCS3/8-16.X

$3.99

$

Usually ships in 3-10 days

0

$2.99

$

In Stock, only 1 left!

0

2

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110863

MOUNTING BLOCK CABLE TIE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525851002

BAR, THROWOUT OR

$

$

Not available

14

Husqvarna 523031601

COVER, ASM, CENTER

$

$

Not available

16

Husqvarna 510126701

LATCH, SHORT WING

$

$

Not available

21

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 574331502

BUMPER, OR

$

$

Not available

22

Husqvarna 539990130

NUT 3/8-16

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

17

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 525811402

CHASSIS WLDT ORANGE

$

$

Not available

5

Husqvarna 522989201

SNAP RING 1.25

$

$

Not available

13

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

24

Husqvarna 522983402

SUPPORT PLATE, P. BRAKE RH BLK

$

$

Not available
