WHF 5218 ETS (968999130) - Husqvarna 52" Walk-Behind Mower (2002-02) 52" Front Deck Assembly Parts Diagram

52" Walk-Behind Mower

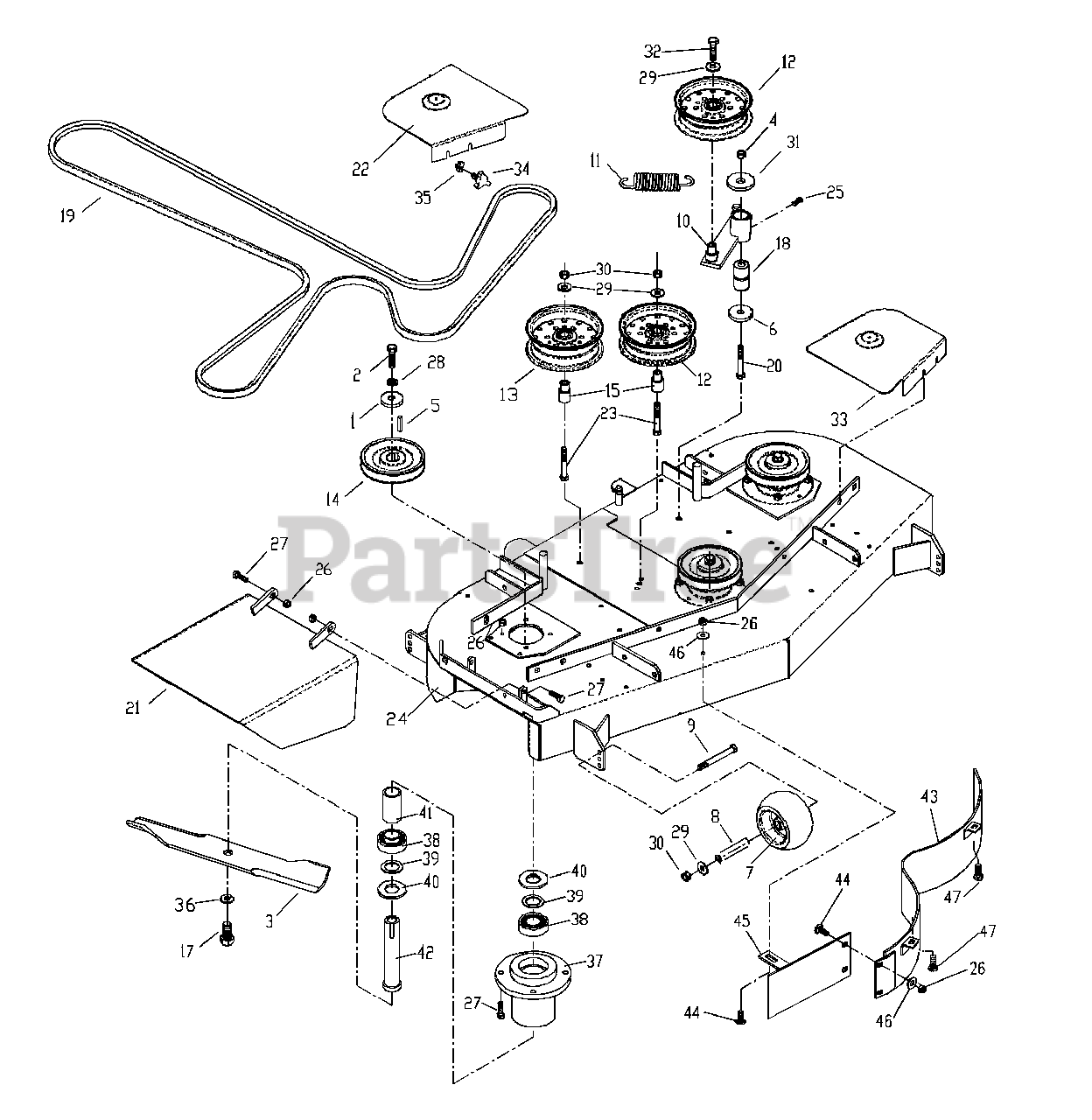

52" Front Deck Assembly Parts Diagram

  • Title
1

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

2

Husqvarna 539100141

HCS 7/16 X 1.500

$

$

Not available

3

Husqvarna 539100341

BLADE 18.00

$

$

Not available

4

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539101995

KEY 1/4 X 1.125

$

$

Not available

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

$

$

Not available

9

Husqvarna 539102754

HCS 3/8 X 3.500

$4.99

$

In Stock, Qty 13

0

10

$

$

Not available

$

$

Not available

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539103258

IDLER PULLEY

$53.99

$

In Stock, only 1 left!

0

$

$

Not available

15

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539104403

COMPLETE HOUSING
(Superseded to 539107408)

$512.99

$

In Stock, only 1 left!

0

17

Husqvarna 539103299

HCS 5/16 X 1.250

$

$

Not available

18

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

19

Husqvarna 539105643

BELT
(Superseded to 539109242)

$103.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103433

HCS 1/2 X 3.250

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 539106514

DEFLECTOR CHUTE
(Superseded to 539107312)

$399.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539106448

BELT SHIELD

$

$

Not available

23

Husqvarna 539990637

HCS 3/8 X 2.500

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539106582

DECK W/DECALS

$

$

Not available

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990184

NUT 5/16 CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990209

HCS 5/16 X 1.000

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

29

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990546

NUT 3/8 CTR. LOCK

$

$

Not available

31

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990582

HCS 3/8 X 1.00 SERR. HD.

$

$

Not available

33

Husqvarna 539106449

BELT SHIELD

$

$

Not available

34

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 9

0

36

Husqvarna 539990333

WASHER 5/8 LOCK

$1.99

$

In Stock, Qty 6

0

37

$

$

Not available

38

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

39

Husqvarna 539102244

MACH. BUSHING

$5.99

$

In Stock, only 3 left!

0

40

Husqvarna 539102675

MACH. BUSHING

$10.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 4 left!

0

42

$

$

Not available

43

Husqvarna 539105457

MAIN BAFFLE

$267.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990799

RHSNB 5/16 X .625
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539105453

CENTER BAFFLE

$

$

Not available

46

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0
