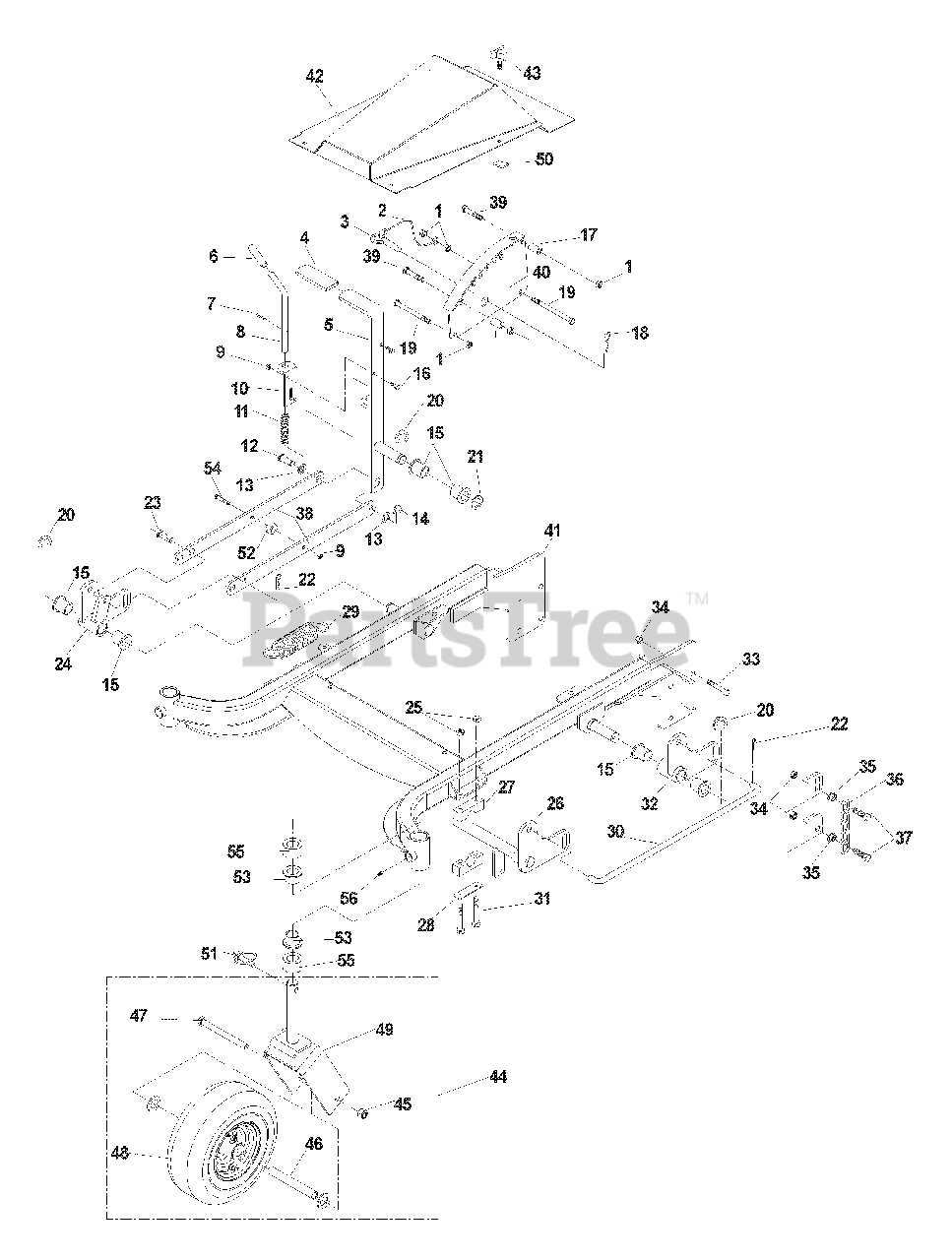

WHF 4817 (968999252) - Husqvarna 48" Walk-Behind Mower (2004-09) Frame Assembly Parts Diagram

48" Walk-Behind Mower

Frame Assembly Parts Diagram

  • Title
1

Husqvarna 539990546

NUT, 3/8, CENTER LOCK

$

$

Not available

$9.99

$

Usually ships in 3-10 days

0

3

$21.99

$

Usually ships in 3-10 days

0

$

$

Not available

5

Husqvarna 539105604

LIFT LEVER

$70.99

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 4 left!

0

$3.99

$

In Stock, Qty 5

0

$

$

Not available

9

Husqvarna 539990761

NUT, 1/4, CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

10

$27.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539991043

BUSHING, 5/8, MACHINE

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105069

E-RING, 5/8

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101232

BUSHING, 7/8, FLANGED

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 539990580

HCS 1/4C X 3/4

$3.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539976989

HAIRPIN, 2 1/2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990591

HCS, 3/8C X 4 1/2

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101802

E-RING, 7/8

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539923787

BUSHING, MACHINE

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990654

COTTER PIN, 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539977703

CLEVIS PIN, 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

24

Husqvarna 539107032

BELLCRANK, RIGHT

$51.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990184

NUT, 5/16, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539107030

LIFTARM, FRONT

$84.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539104807

REINF. PLATE
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

$31.99

$

In Stock, only 1 left!

0

30

Husqvarna 539108358

LINK, DECK LIFT

$

$

Not available

31

Husqvarna 539991046

HCS, 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 539107031

BELLCRANK, LEFT

$33.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539100143

HCS, 7/16C X 1

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990839

NUT, 7/16C, CENTER LOCK

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 539102582

NUT, 7/16C, WHIZ

$

$

Not available

36

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101175

HCS, 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106622

FLAT LINKAGE

$

$

Not available

39

Husqvarna 539990588

HCS, 3/8C X 2

$4.99

$

In Stock, Qty 10

0

40

Husqvarna 539105582

HEIGHT ADJ. PLATE

$70.99

$

Usually ships in 3-10 days

0

$755.99

$

Usually ships in 3-10 days

0

$

$

Not available

43

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539106685

CASTER ASSEMBLY, COMPLETE

$

$

Not available

45

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

$10.99

$

In Stock, only 2 left!

0

47

Husqvarna 539101907

HCS, 1/2C X 5 1/2

$11.99

$

In Stock, Qty 10

0

48

Husqvarna 539106993

TIRE, COMPLETE

$121.99

$

In Stock, only 2 left!

0

48

Husqvarna 539106995

TIRE
(Superseded to 539114697)

$

$

Not available

$

$

Not available

48

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

48

Husqvarna 539102484

BEARING, FLANGE

$5.99

$

In Stock, only 1 left!

0

48

Husqvarna 539105307

BEARING, ROLLER, 3 1/4

$11.99

$

In Stock, only 2 left!

0

$4.99

$

In Stock, Qty 18

0

49

Husqvarna 539106588

FORK, CASTER

$

$

Not available

$6.49

$

In Stock, Qty 9

0

51

Husqvarna 539101874

LYNCH PIN, 7/16

$6.49

$

In Stock, Qty 5

0

$5.99

$

In Stock, only 1 left!

0

53

Husqvarna 539106656

BUSHING, CASTER

$4.99

$

In Stock, only 1 left!

0

54

Husqvarna 539100266

HCS, 1/4C X 1 1/4

$3.99

$

Usually ships in 3-10 days

0

$24.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0
