WHF 4817 (968999252) - Husqvarna 48" Walk-Behind Mower (2004-09) Engines 17 HP And 19 HP Parts Diagram

48" Walk-Behind Mower

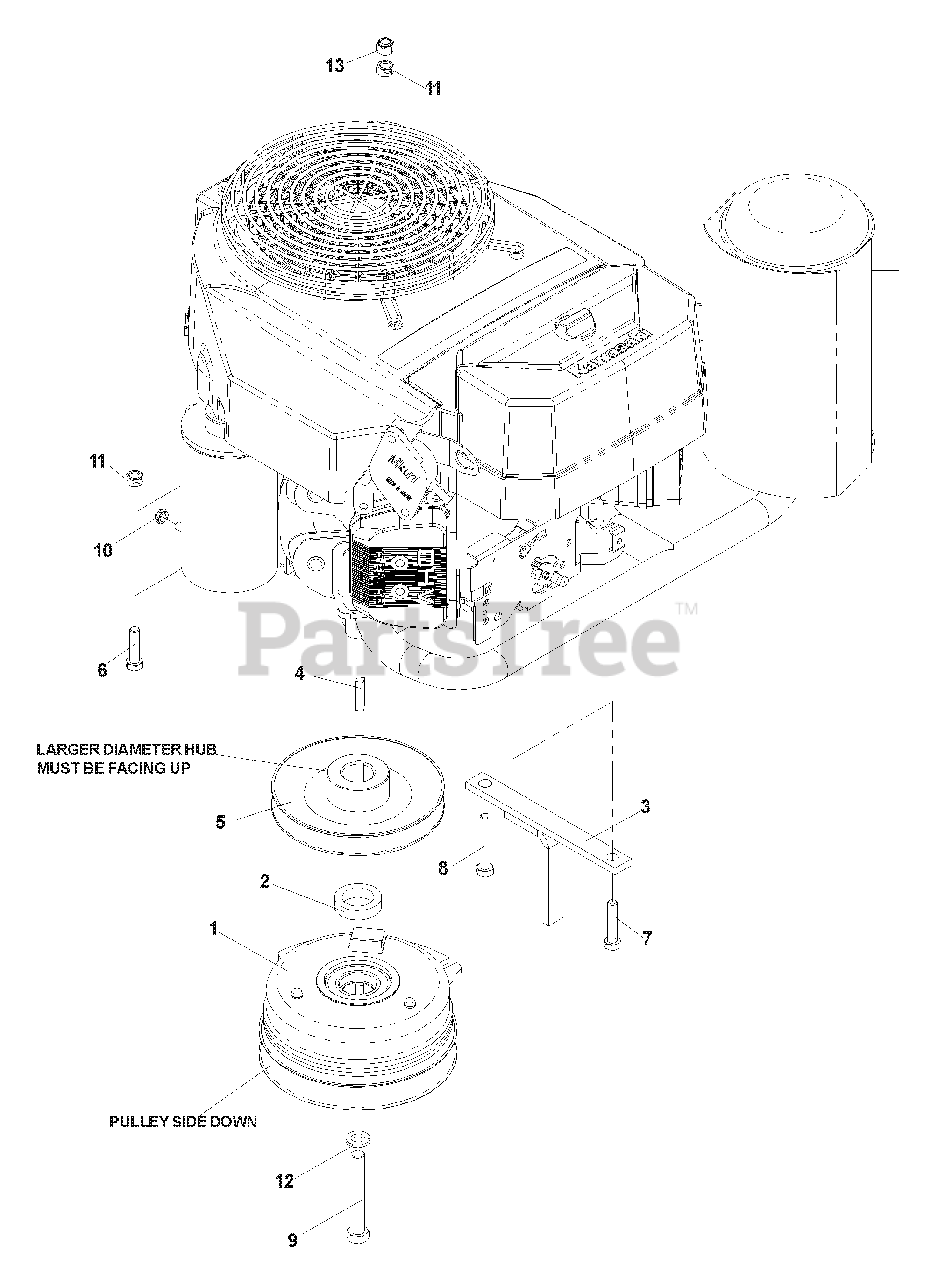

Engines 17 HP And 19 HP Parts Diagram

  • Title

1

Husqvarna 539109245

CLUTCH, 125 FT/LBS

$364.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539109703

SPACER

$

$

Not available

3

Husqvarna 539106819

TIE DOWN, CLUTCH

$

$

Not available

4

Husqvarna 539101995

KEY, 1/4" SQ. X 1 1/8"

$

$

Not available

5

Husqvarna 539105610

PULLEY, PUMP

$35.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990627

HCS, 5/16-18 X 1 1/4

$4.99

$

In Stock, Qty 9

0

7

Husqvarna 539976935

HCS, 5/16-18 X 1 1/2

$

$

Not available

8

Husqvarna 539976937

HCS, 5/16-18 X 2

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539923388

HCS, 7/16-20 X 3

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539108120

NUT, 1/4C, THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990184

NUT, 5/16C, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

13

Husqvarna 539990717

NUT, 5/16, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539110662

LOWER HARNESS (NOT SHOWN)

$56.99

$

Usually ships in 3-10 days

0
