WHF 4215 ETS (968999127) - Husqvarna 42" Walk-Behind Mower (2001-12) 42" Front Deck Assembly Parts Diagram

42" Walk-Behind Mower

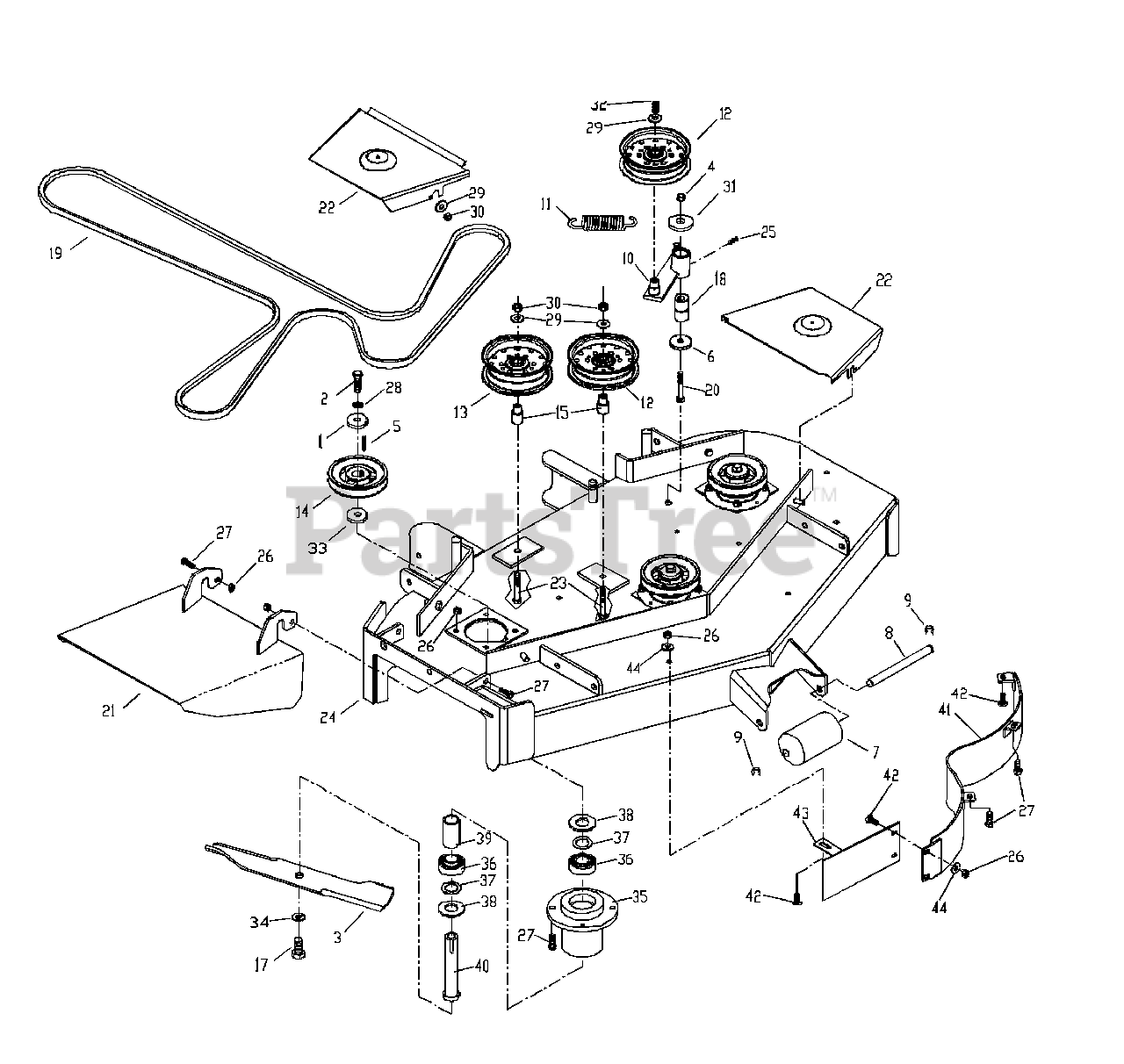

42" Front Deck Assembly Parts Diagram

  • Title
1

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

2

Husqvarna 539100141

HCS 7/16 X 1.500

$

$

Not available

3

Husqvarna 539103274

BLADE 14.875

$21.99

$

In Stock, only 3 left!

0

4

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539101995

KEY 1/4 X 1.125

$

$

Not available

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539976828

ANTI-SCALP ROLLER

$

$

Not available

8

Husqvarna 539103437

ROLLER AXLE

$

$

Not available

9

Husqvarna 539101949

E-RING 1/2

$3.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

$12.99

$

In Stock, Qty 5

0

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

13

Husqvarna 539103258

IDLER PULLEY

$53.99

$

In Stock, only 1 left!

0

$93.99

$

In Stock, Qty 5

0

15

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539104403

COMPLETE HOUSING
(Superseded to 539107408)

$512.99

$

In Stock, only 1 left!

0

17

Husqvarna 539103299

HCS 5/16 X 1.250

$

$

Not available

18

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, Qty 8

0

19

Husqvarna 539105642

BELT
(Superseded to 539109244)

$

$

Not available

20

Husqvarna 539103433

HCS 1/2 X 3.250

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 539105361

DEFLECTOR CHUTE

$

$

Not available

22

Husqvarna 539105363

BELT SHIELD

$

$

Not available

23

Husqvarna 539990637

HCS 3/8 X 2.500

$1.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539106575

DECK W/DECALS

$

$

Not available

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990184

NUT 5/16 CTR. LOCK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990209

HCS 5/16 X 1.000

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

29

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990546

NUT 3/8 CTR. LOCK

$

$

Not available

31

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990582

HCS 3/8 X 1.00 SERR. HD.

$

$

Not available

33

Husqvarna 539102675

MACH. BUSHING

$10.99

$

In Stock, only 3 left!

0

34

Husqvarna 539990333

WASHER 5/8 LOCK

$1.99

$

In Stock, Qty 6

0

35

$

$

Not available

36

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

37

Husqvarna 539102244

MACH. BUSHING

$5.99

$

In Stock, only 3 left!

0

38

Husqvarna 539102675

MACH. BUSHING

$10.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 4 left!

0

40

$

$

Not available

41

Husqvarna 539105439

MAIN BAFFLE

$218.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990799

RHSNB 5/16 X .625
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539105435

CENTER BAFFLE

$72.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
