WHF 3617 - Husqvarna 36" Walk-Behind Mower (2009-09) WHEELS & TIRES Parts Diagram

36" Walk-Behind Mower

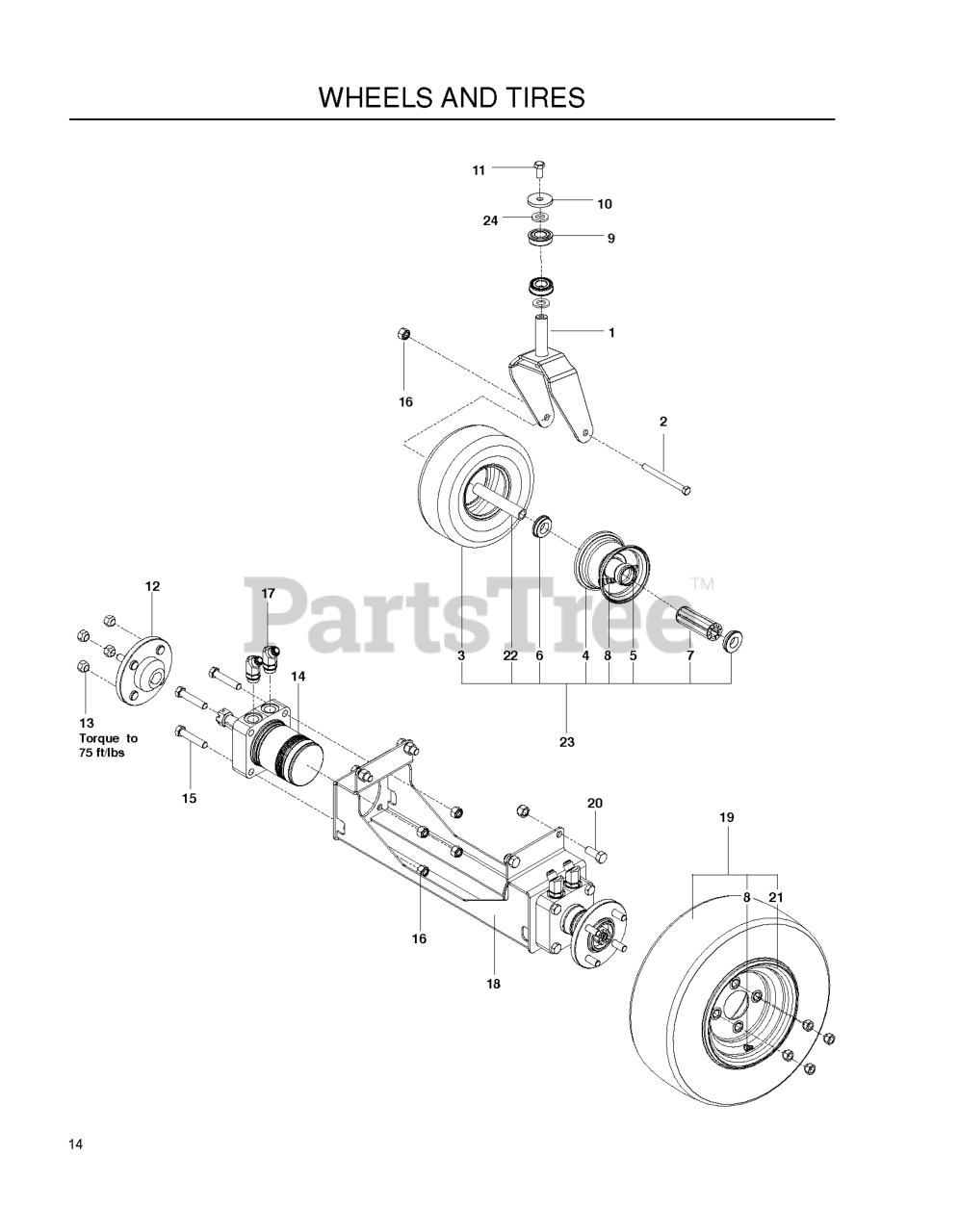

WHEELS & TIRES Parts Diagram

  • Title

13

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

24

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539103527

WHEEL MOTOR

$

$

Not available

15

Husqvarna 539108346

HEX SCREW 1/2-13 X 2.5" GR 5

$5.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

3

Husqvarna 539106995

TIRE - CASTER
(Superseded to 539114697)

$

$

Not available

18

Husqvarna 506006602

AXLE, BLK

$

$

Not available

19

Husqvarna 523112701

WHEEL ASSY, 18 X 6.50-8

$

$

Not available

23

Husqvarna 539106993

TIRE/WHEEL.CASTER

$121.99

$

In Stock, only 2 left!

0

5

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 539132561

45 DEG STRAIGHT THD ELBOW 8-10

$39.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105543

SPACER

$10.99

$

In Stock, only 2 left!

0

16

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539106994

RIM

$

$

Not available

Husqvarna 521911601

MOTOR, TE0230 REVERSE PORTED

$

$

Not available

9

Husqvarna 525853101

BEARING 1" X 2"

$

$

Not available

10

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 10

0

2

Husqvarna 539101907

HCS 1/2C X 5 1/2

$11.99

$

In Stock, Qty 10

0

7

Husqvarna 539105307

ROLLER BEARING-CAGED 3 1/4'

$11.99

$

In Stock, only 2 left!

0

11

Husqvarna 539990646

HHCS 1/2-13 X 1

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539113444

CASTER YOKE - PAINTED

$

$

Not available

12

Husqvarna 539132689

HUB, WHEEL

$

$

Not available

8

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

20

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0
