WHF 3617 - Husqvarna 36" Walk-Behind Mower (2009-09) PARKING BRAKE Parts Diagram

36" Walk-Behind Mower

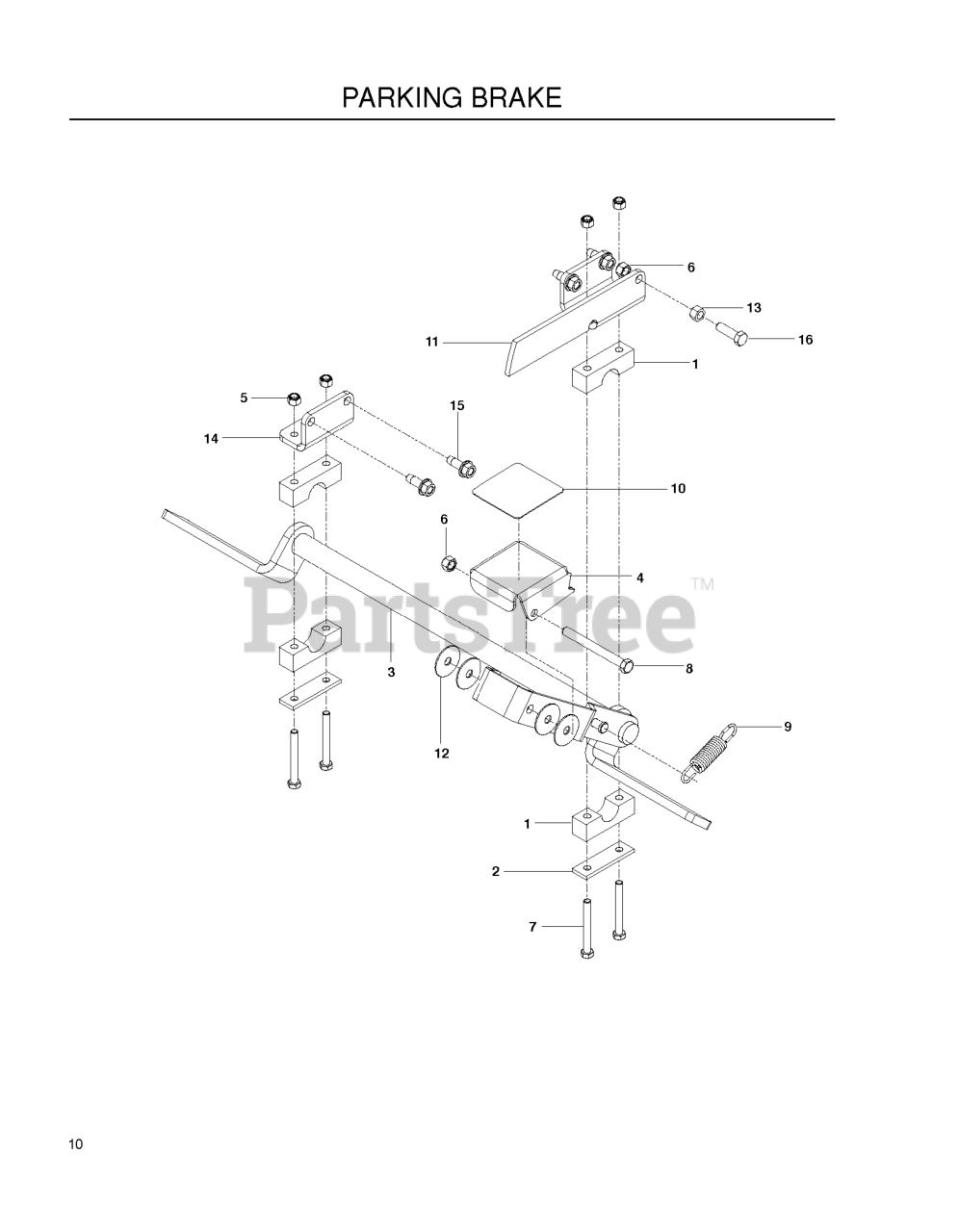

PARKING BRAKE Parts Diagram

  • Title

13

Husqvarna 539990130

NUT 3/8-16

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 1 left!

0

4

Husqvarna 510283402

PEDAL, BLACK

$

$

Not available

14

Husqvarna 522983502

SUPPORT PLATE, P. BRAKE LH BLK

$

$

Not available

8

Husqvarna 539991126

HCS3/8-16.X

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539132685

PARK BRAKE

$236.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

11

Husqvarna 522983402

SUPPORT PLATE, P. BRAKE RH BLK

$

$

Not available

10

Husqvarna 539105187

ANTI-SKID PAD

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 510136301

SPRING, EXTENSION

$

$

Not available

12

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0

15

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

2

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0
