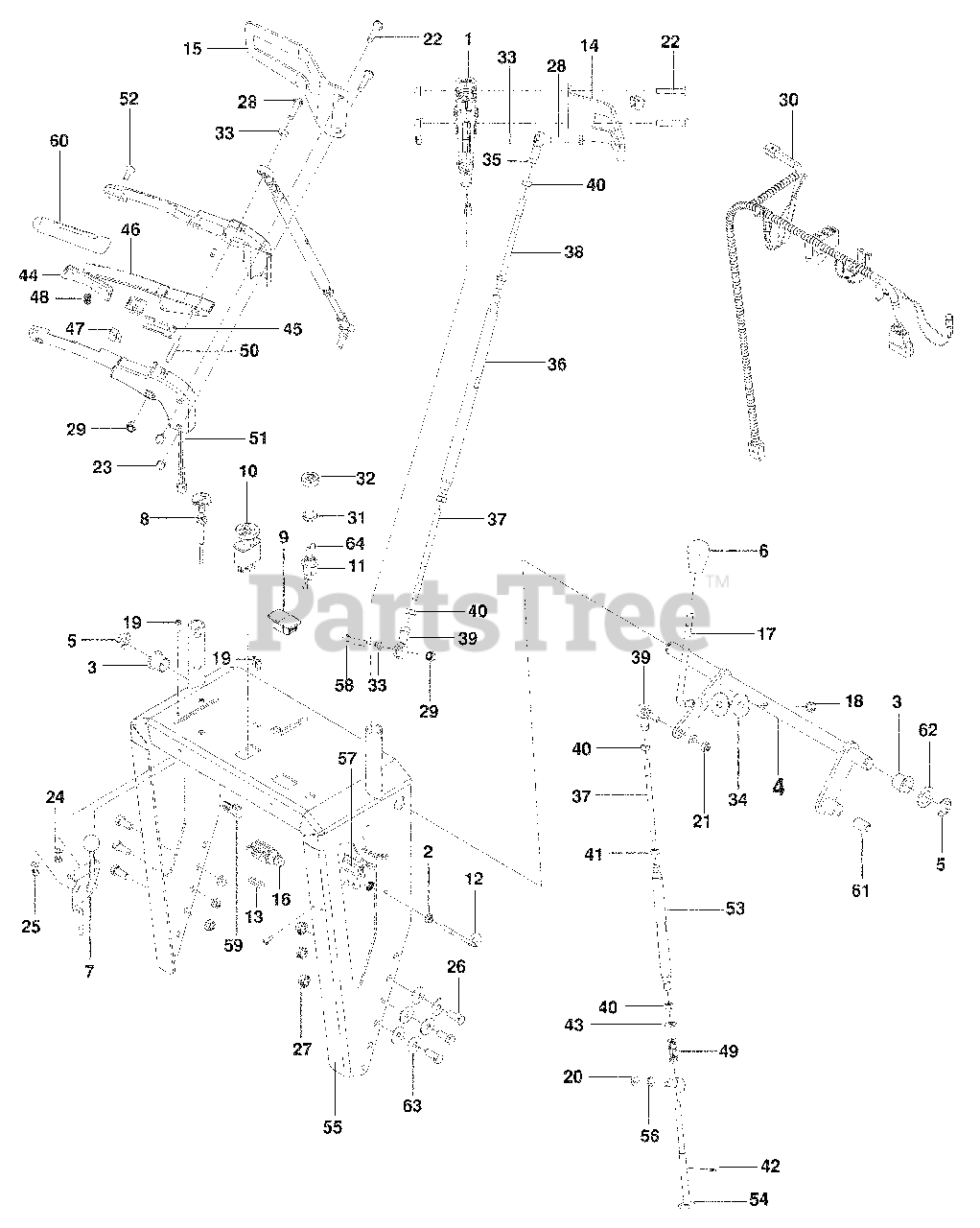

WHF 3617 (966947008) - Husqvarna 36" Walk-Behind Mower (2009-09) Handle And Controls Parts Diagram

36" Walk-Behind Mower

Handle And Controls Parts Diagram

  • Title

1

Husqvarna 539132623

GRIP ASSY

$

$

Not available

2

Husqvarna 539990585

NUT 5/16-18 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539132520

BEARING, FLANGE

$

$

Not available

4

Husqvarna 574454301

SPEED CONTROL

$

$

Not available

5

Husqvarna 539132629

E RING, 20MM

$

$

Not available

6

Husqvarna 539132624

KNOB, SHIFT

$7.99

$

In Stock, Qty 5

0

7

Husqvarna 539132688

CONTROL, THROTTLE

$60.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130208

CONTROL, CHOKE
(Superseded to 539109954)

$45.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532404951

PLUG, DASH, SVC MINDER
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539101768

SWITCH, CLUTCH
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

11

Husqvarna 539911853

SWITCH, IGNITION w/KEY

$

$

Not available

12

Husqvarna 539132676

GUIDE, ROPE

$

$

Not available

13

Husqvarna 539102678

PLATE, NUT

$15.99

$

In Stock, Qty 9

0

14

Husqvarna 522421802

GUARD, HAND RH

$

$

Not available

15

Husqvarna 522421702

GUARD, HAND LH

$

$

Not available

16

Husqvarna 522559601

SWITCH

$

$

Not available

17

Husqvarna 522676001

ROD, SHIFT

$

$

Not available

18

Husqvarna 539200282

NUT 3/8-16 HEX JAM NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 7

0

19

Husqvarna 539990411

SCREW #10-24 x ½ HEX

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539103153

NUT M8 x 1.25 NYLOC

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 525841401

SCREW, PAN HD 5/16-18 x 1¾

$

$

Not available

23

Husqvarna 505203401

NUT, ACORN 5/16-18

$

$

Not available

24

Husqvarna 539105408

WASHER #10 FLAT

$3.99

$

In Stock, Qty 12

0

25

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

26

Husqvarna 539108507

HCS 3/8-16 x 7/8

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK NYL

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990669

HCS 5/16-18 x 1¾
(Superseded to 874780528)

$

$

Not available

29

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 522446801

HARNESS, UPPER HANDLE

$56.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539103177

NUT, IGNITION SWITCH

$3.99

$

In Stock, only 3 left!

0

32

Husqvarna 539103178

CAP, IGNITION SWITCH NUT

$5.99

$

In Stock, Qty 6

0

33

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 539912063

WASHER, CONE

$7.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539132602

ROD END 8 MM, RH

$

$

Not available

36

Husqvarna 539132601

TUBE, ADJUSTING

$

$

Not available

37

Husqvarna 539132605

STUD, LH

$

$

Not available

38

Husqvarna 539132604

STUD, RH

$

$

Not available

39

Husqvarna 539132603

ROD END 8 MM

$

$

Not available

40

Husqvarna 539132607

NUT .8MM x 1.25 HEX

$

$

Not available

41

Husqvarna 510098701

NUT .8MM x 1.25 LH

$

$

Not available

42

Husqvarna 539132614

ROLL PIN 3 MM

$

$

Not available

43

Husqvarna 510098601

WASHER, 10 MM

$

$

Not available

44

Husqvarna 539132674

ACTUATOR, OPC

$11.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539132617

LOCK, NEUTRAL

$

$

Not available

46

Husqvarna 539132618

LEVER

$

$

Not available

47

Husqvarna 539132620

SWITCH

$

$

Not available

48

Husqvarna 539132599

SPRING

$

$

Not available

49

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

50

Husqvarna 539132635

PIN, GROOVE 7MM x 38MM

$

$

Not available

51

Husqvarna 539132675

HARNESS, SWITCH

$

$

Not available

52

Husqvarna 539132677

SCREW, OVAL HEAD 6MM

$

$

Not available

53

Husqvarna 539132609

TUBE, ADJUSTING

$

$

Not available

54

Husqvarna 539132608

ROD, HEADED

$

$

Not available

55

Husqvarna 522478101

UPPER HANDLE w/DECAL

$

$

Not available

56

Husqvarna 539132613

E-RING, 10MM

$

$

Not available

57

Husqvarna 539101781

MODULE

$

$

Not available

58

Husqvarna 539100469

HCS 5/16-18 x 1¼
(Superseded to 539990627)

$4.99

$

In Stock, only 3 left!

0

59

Husqvarna 539109867

CLAMP

$7.99

$

Usually ships in 3-10 days

0

60

Husqvarna 522950501

GRIP, FOAM

$

$

Not available

61

Husqvarna 574454601

DETENT

$

$

Not available

62

Husqvarna 539923787

BUSHING

$3.99

$

In Stock, only 1 left!

0

63

Husqvarna 539112483

WASHER, SPRING

$8.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539104812

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

Husqvarna 539109104

HARNESS, LOWER

Note: NOT SHOWN

$

$

Not available
