WH208-0004 - Kohler Snow PRO Engine, Basic Version, 7hp, 5.2kW Engine Controls Group Parts Diagram

Snow PRO Engine, Basic Version, 7hp, 5.2kW

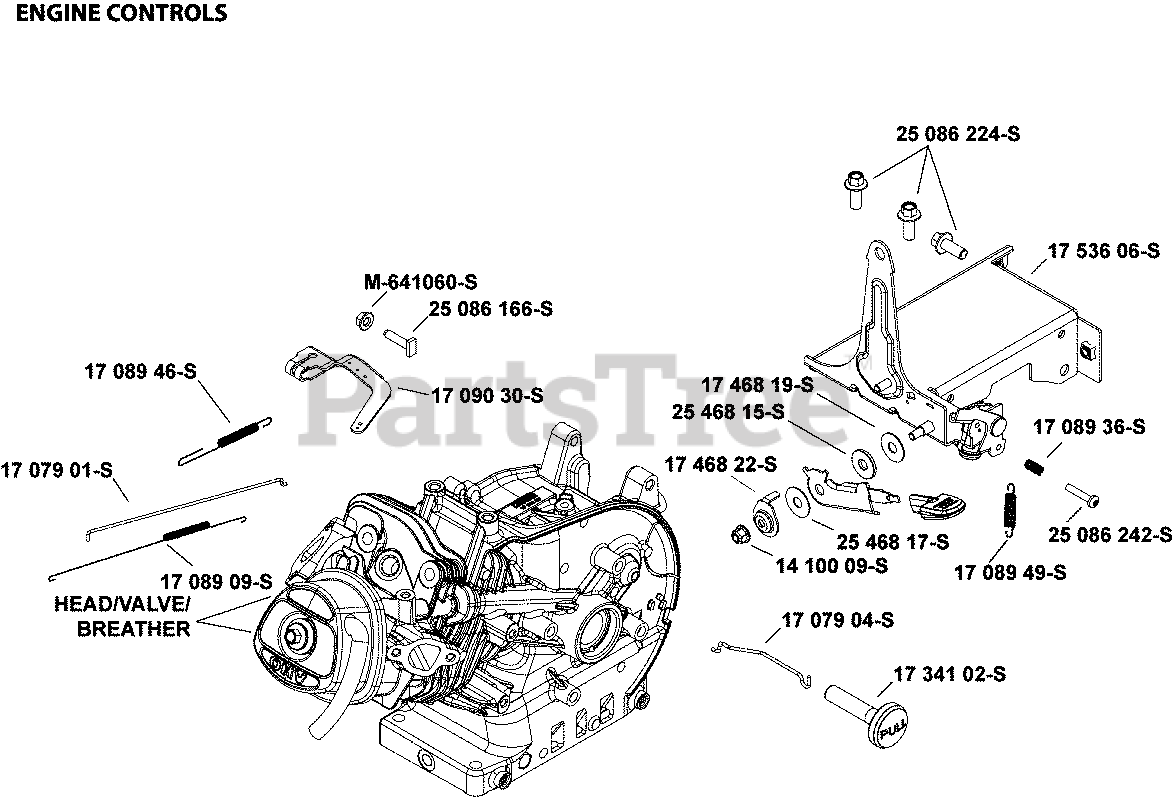

Engine Controls Group Parts Diagram

  • Title

1707904-S

Kohler 17 079 04-S

LINKAGE, CHOKE

$2.99

$

Usually ships in 2-5 days

0

1734102-S

Kohler 17 341 02-S

KNOB, CHOKE

$4.49

$

Usually ships in 2-5 days

0

1753606-S

Kohler 17 536 06-S

CONTROL ASSY, ENGINE - USE 17 536 07-S
(Superseded to 17 536 07-S)

$

$

Not available

25086242-S

Kohler 25 086 242-S

SCREW, SPEED ADJUSTING

$2.49

$

Usually ships in 2-5 days

0

1708936-S

Kohler 17 089 36-S

SPRING, COMPRESSION

$5.49

$

Usually ships in 2-5 days

0

1746819-S

Kohler 17 468 19-S

WASHER, FLAT

$2.49

$

In Stock, only 1 left!

0

2546815-S

Kohler 25 468 15-S

WASHER, NYLON CONTROL LEVER

$2.49

$

In Stock, only 2 left!

0

1746822-S

Kohler 17 468 22-S

WASHER, CONTROL LEVER - USE 17 468 34-S
(Superseded to 17 468 34-S)

$2.49

$

In Stock, only 2 left!

0

2546817-S

Kohler 25 468 17-S

WASHER, SPRING

$2.49

$

Usually ships in 2-5 days

0

1410009-S

Kohler 14 100 09-S

NUT, HEX FLANGE LOCK (M6)

$2.49

$

In Stock, only 2 left!

0

1708949-S

Kohler 17 089 49-S

SPRING, EXTENSION

$3.49

$

Usually ships in 2-5 days

0

25086224-S

Kohler 25 086 224-S

SCREW, M8 X 20

$2.49

$

Usually ships in 2-5 days

0

1709030-S

Kohler 17 090 30-S

KIT, GOVERNOR LEVER

$

$

Not available

25086166-S

Kohler 25 086 166-S

SCREW, RECTANGLE HEAD (M6)

$2.49

$

In Stock, only 1 left!

0

M-641060-S

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 8

0

1707901-S

Kohler 17 079 01-S

LINKAGE, GOVERNOR

$3.49

$

Usually ships in 2-5 days

0

1708946-S

Kohler 17 089 46-S

SPRING, GOVERNOR

$

$

Not available

1708909-S

Kohler 17 089 09-S

SPRING, LINKAGE

$5.99

$

Usually ships in 2-5 days

0

1709032-S

Kohler 17 090 32-S

KIT, CONTROL LEVER

Note: (includes Lever Control, 17 468 19-S, 17 468 22-S, 25 468 15-S, 25 468 17-S)

$14.99

$

Usually ships in 2-5 days

0
