WH15 XT2 A/A (WAJT) - Honda Water Pump, Made in Thailand (SN: WAJT-3000001 - WAJT-9999999) CASING Parts Diagram

Water Pump, Made in Thailand

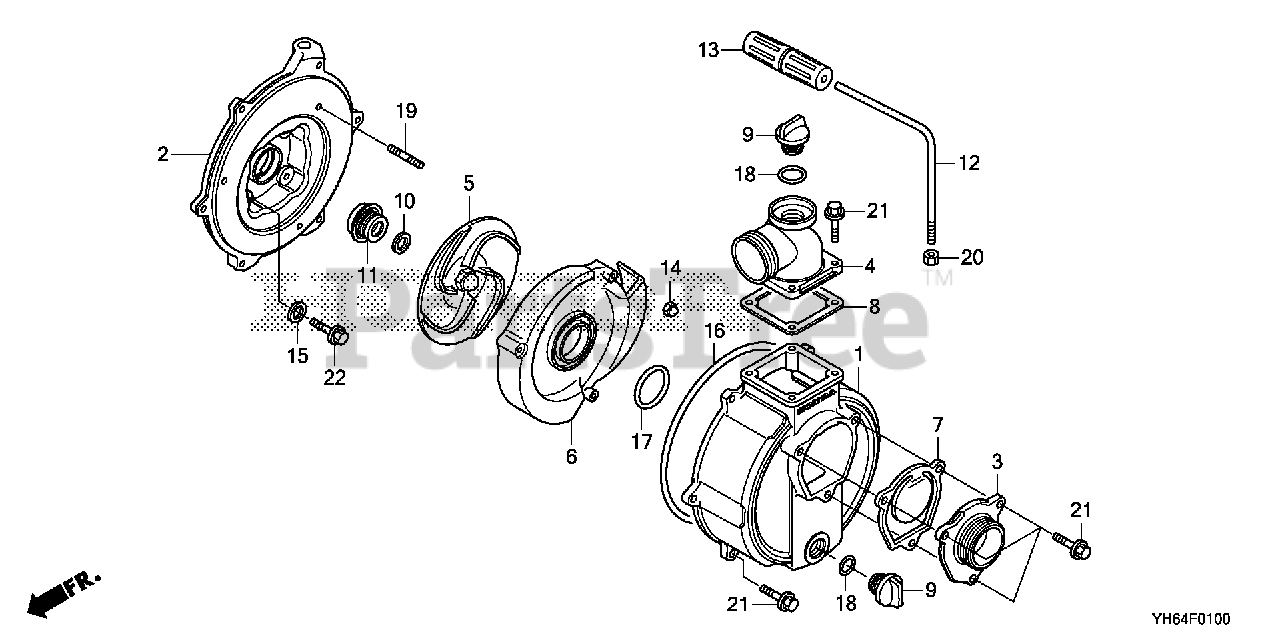

CASING Parts Diagram

  • Title

1

Honda 78101-YH6-000

CASING

$314.99

$

Usually ships in 3-6 days

0

2

Honda 78102-YH6-000

COVER, CASING

$164.99

$

Usually ships in 3-6 days

0

3

Honda 78103-YH6-740

SEE PART DETAILS - PRI; INLET (NPTF1 1/2)

$56.99

$

Usually ships in 3-6 days

0

4

Honda 78104-YH6-740

OUTLET (NPTF1 1/2)

$114.99

$

Usually ships in 3-6 days

0

5

Honda 78106-YH6-000

SEE PART DETAILS - PRI; IMPELLER

$18.99

$

In Stock, only 1 left!

0

6

Honda 78107-YH6-000

SEE PART DETAILS - PRI; CASE, VOLUTE

$40.99

$

Usually ships in 3-6 days

0

7

Honda 78110-YB3-000

VALVE, IN.

$31.99

$

In Stock, only 4 left!

0

8

Honda 78114-YB3-000

GASKET, OUTLET

$13.99

$

In Stock, only 3 left!

0

9

Honda 78117-YB3-K10

CAP, FILLER

$15.99

$

In Stock, Qty 6

0

10

Honda 78122-YB3-000

SHIM, ADJUSTER

$4.99

$

In Stock, only 2 left!

0

11

Honda 78130-YH6-003

SEAL ASSY., MECHANICAL

$113.99

$

In Stock, only 1 left!

0

12

Honda 78206-YH6-640

HANDLE

$21.99

$

Usually ships in 3-6 days

0

13

Honda 78207-YH6-640

GRIP, HANDLE

$8.99

$

Usually ships in 3-6 days

0

14

Honda 90281-YB4-000

NUT, CAP (6MM)

$2.49

$

In Stock, only 3 left!

0

15

Honda 90474-333-000

WASHER, SEALING (8MM)

$5.49

$

In Stock, only 4 left!

0

16

Honda 91351-YG3-000

O-RING (217.5X3.5)

$1.49

$

In Stock, Qty 20+

0

17

Honda 91352-YG4-000

O-RING (49X5.7)

$0.99

$

In Stock, Qty 7

0

18

Honda 91354-YH4-610

O-RING (23.7X3.5)

$0.99

$

In Stock, Qty 20+

0

19

Honda 92900-06035-0B

BOLT, STUD (6X35)

$2.49

$

In Stock, only 3 left!

0

20

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.99

$

Usually ships in 3-6 days

0

21

Honda 95701-08025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25) (Honda Code 2545325).

$2.49

$

In Stock, only 4 left!

0

22

Honda 95701-08028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X28) (Honda Code 2581387).

$1.99

$

In Stock, Qty 5

0
