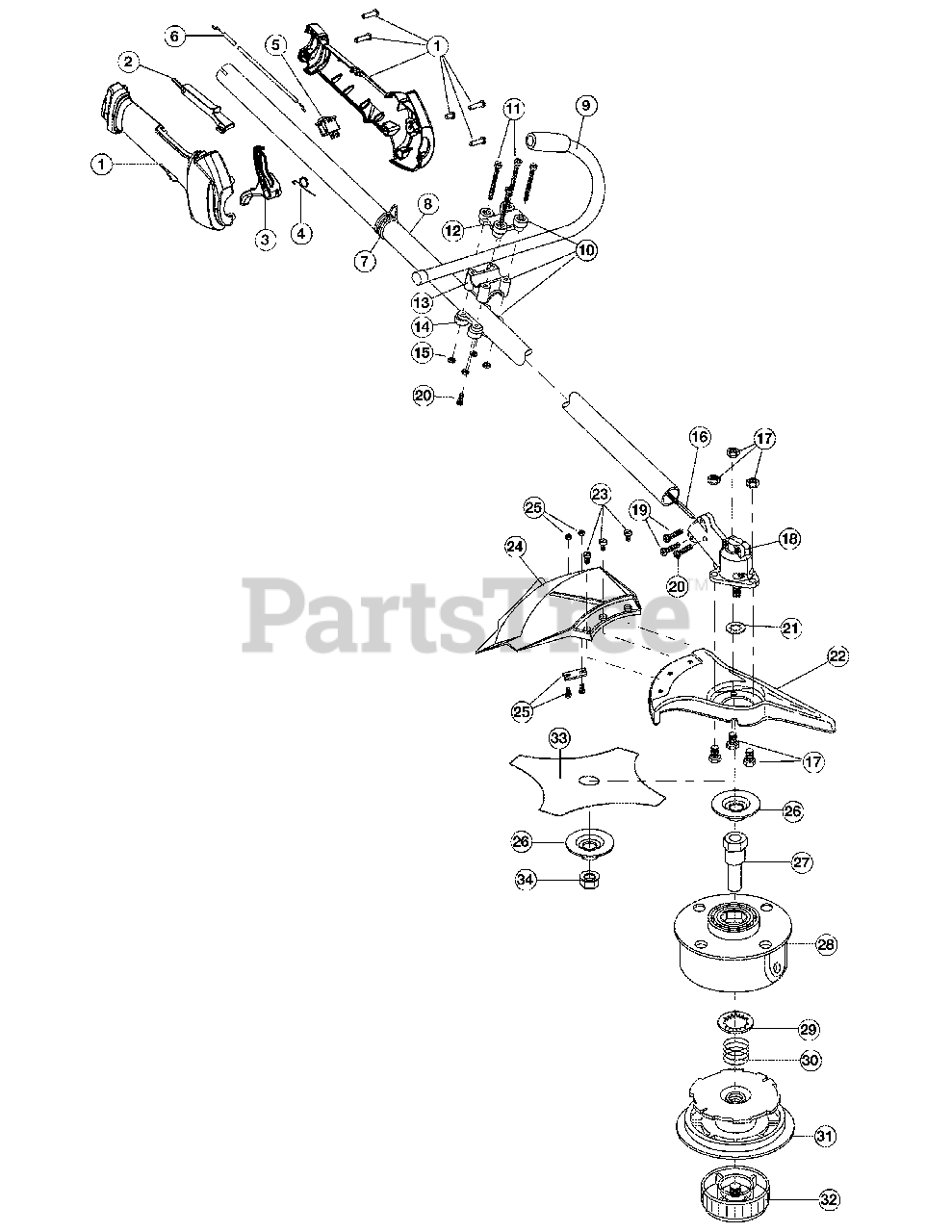

WH 80 BC (41ADW80G990) - White Outdoor Brush Cutter General Assembly Parts Diagram

Brush Cutter

General Assembly Parts Diagram

  • Title

1

White Outdoor 753-05178

Throttle Housing Assembly

Note: (Incl. Ref No.2-4)

$

$

Not available

2

White Outdoor 753-05171

Throttle Trigger Lock-Out
(Superseded to 731-04971C-10)

$5.49

$

In Stock, only 1 left!

0

3

White Outdoor 753-05293

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

4

White Outdoor 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 2 left!

0

5

White Outdoor 791-182405

Switch Assembly

Note: (Incl. Ref No. 6)

$10.99

$

In Stock, Qty 12

0

6

White Outdoor 753-05172

Throttle Cable Assembly
(Superseded to 946-04262A)

$

$

Not available

7

White Outdoor 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

White Outdoor 791-181808

Drive Shaft Housing Assembly

$

$

Not available

9

White Outdoor 791-181099

J-Handle Assembly

$

$

Not available

10

White Outdoor 791-683295

Handle Bracket Assembly

Note: (Incl. Ref No. 13-15 & 20)

$45.99

$

Usually ships in 3-6 days

0

11

White Outdoor 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

12

White Outdoor 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

White Outdoor 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

White Outdoor 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

White Outdoor 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

16

White Outdoor 791-181817

Flexible Drive Shaft

$70.99

$

Usually ships in 3-6 days

0

17

White Outdoor 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

18

White Outdoor 791-182193

2 piece Gearbox Assembly

Note: (Incl. Ref No. 19-21)

$99.99

$

In Stock, only 2 left!

0

19

White Outdoor 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

20

White Outdoor 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

21

White Outdoor 753-04348

Palnut

$6.99

$

In Stock, only 1 left!

0

22

White Outdoor 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

23

White Outdoor 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

24

White Outdoor 791-683299

Shield Assembly

Note: (Incl. Ref No. 25)

$

$

Not available

25

White Outdoor 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

26

White Outdoor 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

27

White Outdoor 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

28

White Outdoor 791-683301

Outer Spool Assembly

$48.99

$

In Stock, Qty 6

0

29

White Outdoor 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

30

White Outdoor 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

31

White Outdoor 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

32

White Outdoor 791-180814

Bump Head Knob Assembly
(Superseded to 791-180814B)

$21.99

$

In Stock, Qty 20+

0

33

White Outdoor 791-145873

4-Tooth Blade
(Superseded to 791-145873B)

$42.99

$

In Stock, only 3 left!

0

34

White Outdoor 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

White Outdoor 791-180014B

Blade Retaining Kit

Note: (Not Shown)(Incl. Ref No. 26 & 34)

$12.99

$

In Stock, only 1 left!

0

White Outdoor 791-613226

Locking Rod Tool

Note: (Not Shown)

$14.99

$

In Stock, only 1 left!

0

White Outdoor 791-682075B

Shoulder Harness

Note: (Not Shown)

$38.99

$

Usually ships in 3-6 days

0

White Outdoor 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: (Not Shown)

$31.99

$

In Stock, only 1 left!

0

791-147345

Reel and Line Assembly

Note: (Not Shown)

$

$

Not available

White Outdoor 791-147498

Bump Head Assembly

Note: (Not Shown)(Incl. Ref No. 28-32)

$117.99

$

In Stock, only 1 left!

0
