WH 5221 EFQ - Husqvarna 52" Walk-Behind Mower (2008-08) 52"/132CM CUTTING DECK Parts Diagram

52" Walk-Behind Mower

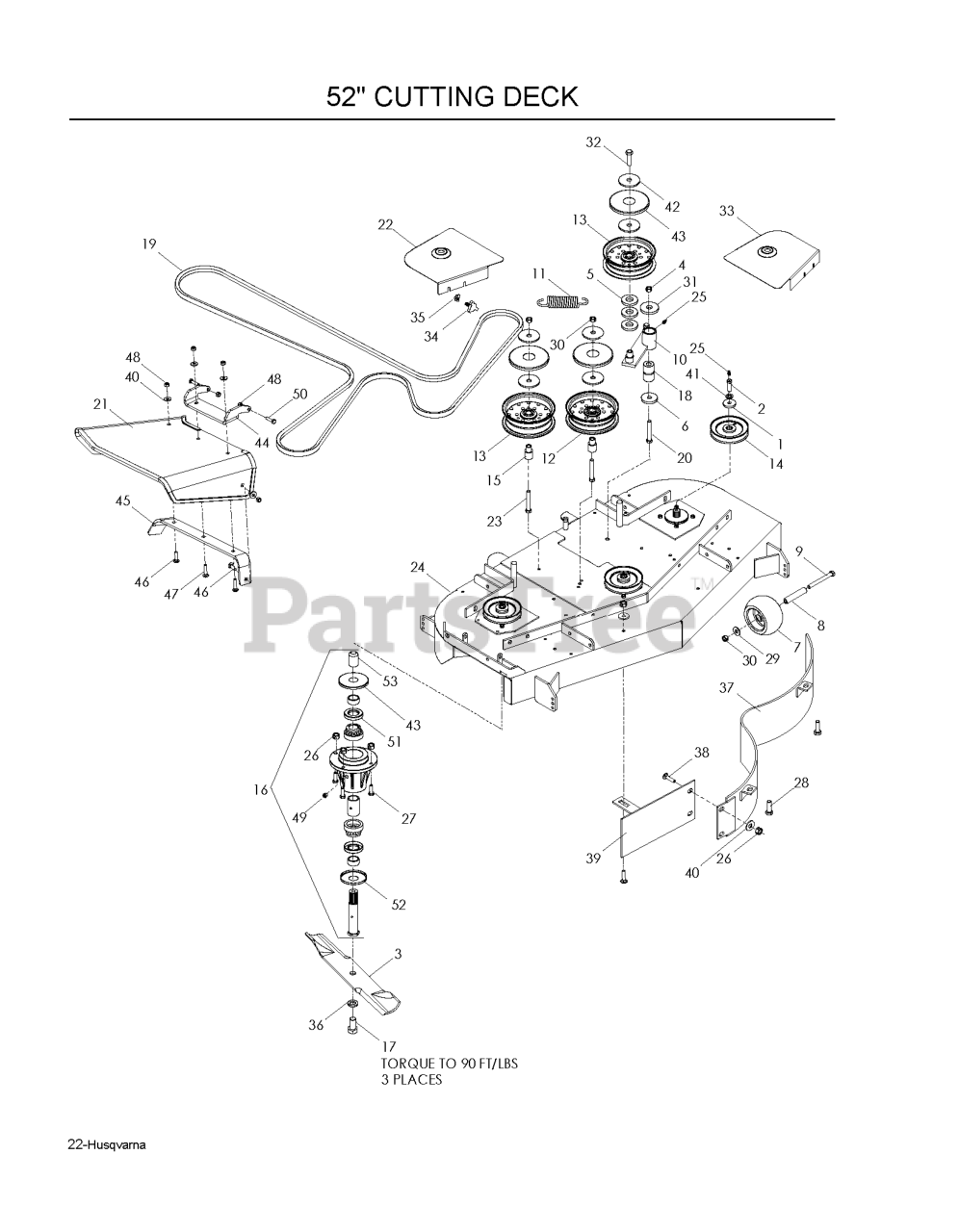

52"/132CM CUTTING DECK Parts Diagram

  • Title

39

Husqvarna 539105453

CENTER BAFFLE - 52"

$

$

Not available

48

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539105192

DECK SPRING

$

$

Not available

43

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

32

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

52

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

53

Husqvarna 539107419

VINYL CAP

$

$

Not available

7

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

46

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

41

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

16

Husqvarna 539112934

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

17

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

14

Husqvarna 539112124

PULLEY, 52

$45.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

51

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

30

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

24

Husqvarna 539106582

DECK W/DECALS 52" HUS

$

$

Not available

49

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

8

Husqvarna 539102698

BUSHING

$

$

Not available

27

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

23

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

22

Husqvarna 539108908

RT 52 SHIELD, ORANGE
(Superseded to 539114202)

$103.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

2

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

31

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105457

MAIN BAFFLE 52"

$267.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

50

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539103230

IDLER ARM

$

$

Not available

45

Husqvarna 539130920

BRKT, REINF - CHUTE 52/61"
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

15

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

19

Husqvarna 539109242

BELT, DECK 52"

$103.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 539130901

CHUTE, RUBBER DISCHARGE 52/61"

$91.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

34

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539130917

PIVOT BRACKET - CHUTE

$148.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

28

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

33

Husqvarna 539108910

LT 52 SHIELD ORANGE
(Superseded to 539114204)

$103.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available
