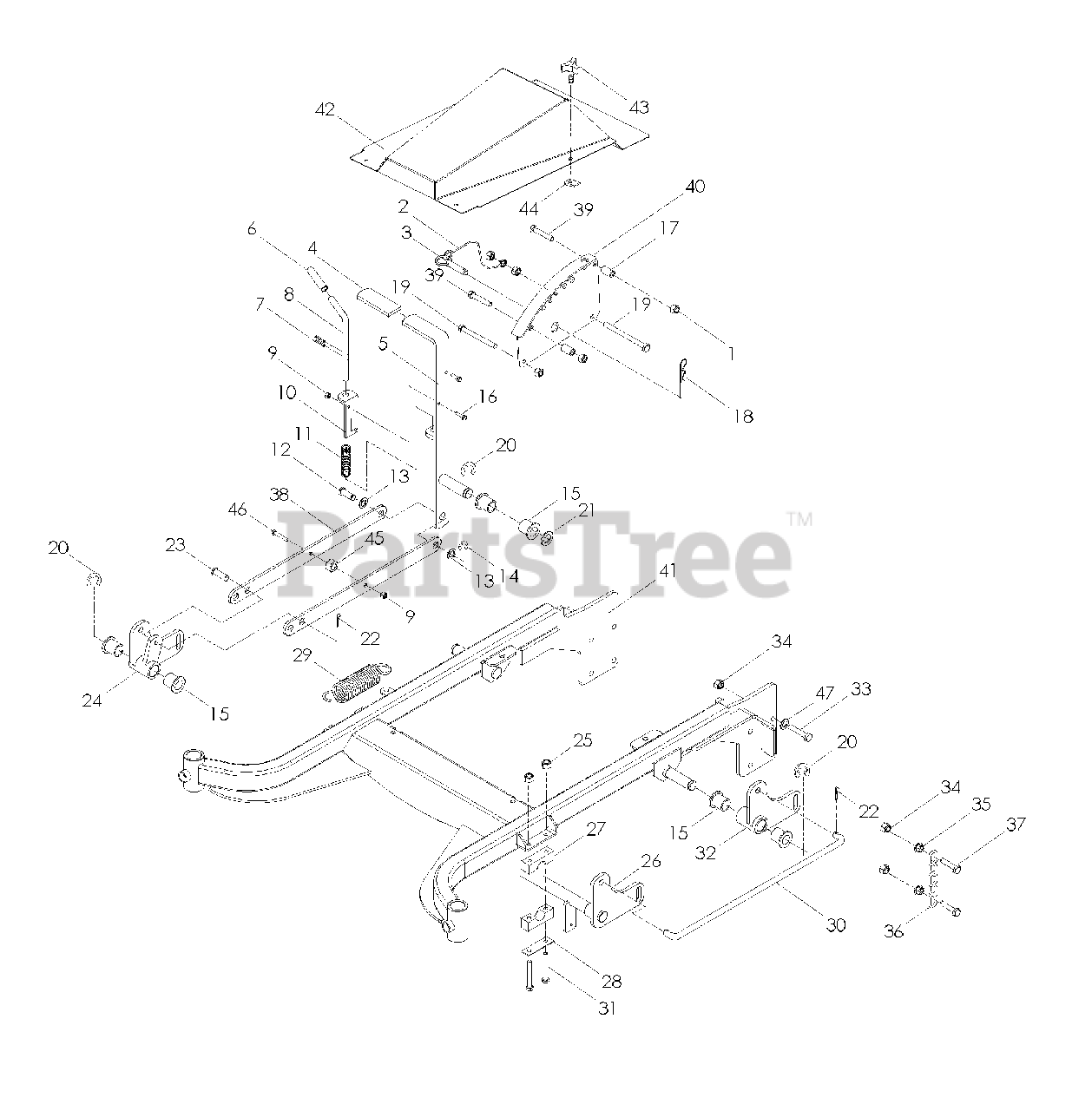

WH 5221 EFQ (968999599) - Husqvarna 52" Walk-Behind Mower (2006-12) Frame Parts Diagram

52" Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

2

Husqvarna 539102563

LANYARD

$9.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102526

PIN, LIFT

$21.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102515

GRIP, LIFT LEVER

$

$

Not available

5

Husqvarna 539105604

LEVER, LIFT

$70.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101050

GRIP, PIN

$3.99

$

In Stock, only 4 left!

0

7

Husqvarna 539106532

PIN, GROOVED

$3.99

$

In Stock, Qty 5

0

8

Husqvarna 539104523

PIN, LIFT LEVER

$

$

Not available

9

Husqvarna 539990761

NUT 1/4-20 CNTRLK

$4.99

$

In Stock, only 4 left!

0

10

Husqvarna 539103534

MOUNT, PIN

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101058

SPRING

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539991043

BUSHING 5/8 MACHINERY

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101232

BUSHING 7/8 FLANGED

$13.99

$

In Stock, Qty 7

0

16

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539104530

SPACER

$7.49

$

Usually ships in 3-10 days

0

18

Husqvarna 539976989

HAIRPIN 2 1/2

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990591

HCS 3/8-16 x 4 1/2

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539923787

BUSHING, MACHINE

$3.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990654

PIN, COTTER 5/32 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539977703

PIN, CLEVIS 3/8 x 1 1/8

$5.99

$

In Stock, Qty 11

0

24

Husqvarna 539107032

BELLCRANK, RIGHT

$51.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539107030

LIFT ARM, FRONT

$84.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104808

BLOCK, PILLOW

$9.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539104807

PLATE, REINFORCEMENT
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

29

Husqvarna 539102642

SPRING

$31.99

$

In Stock, only 1 left!

0

30

Husqvarna 539108358

LINK, DECK LIFT

$

$

Not available

31

Husqvarna 539991046

HCS 5/16-18 x 2 1/2

$4.99

$

In Stock, Qty 8

0

32

Husqvarna 539107031

BELLCRANK, LEFT

$33.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539100143

HCS 7/16-14 x 1

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990839

NUT 7/16-14 CNTRLK

$3.99

$

In Stock, only 3 left!

0

35

Husqvarna 539102582

NUT 7/16-14 WHIZ

$

$

Not available

36

Husqvarna 539102641

CHAIN, LIFT

$8.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101175

HCS 7/16-14 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106622

LINKAGE, FLAT

$

$

Not available

39

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

40

Husqvarna 539105582

PLATE, HEIGHT ADJUST

$70.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539106595

FRAME

$755.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539106064

HOOD

$

$

Not available

43

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

44

Husqvarna 539104763

U-CLIP

$6.49

$

In Stock, Qty 12

0

45

Husqvarna 539923515

SPACER

$5.99

$

In Stock, only 2 left!

0

46

Husqvarna 539100266

HCS 1/4-20 x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
