WH 5221 EFQ (968999599) - Husqvarna 52" Walk-Behind Mower (2006-12) 52" Cutting Deck Parts Diagram

52" Walk-Behind Mower

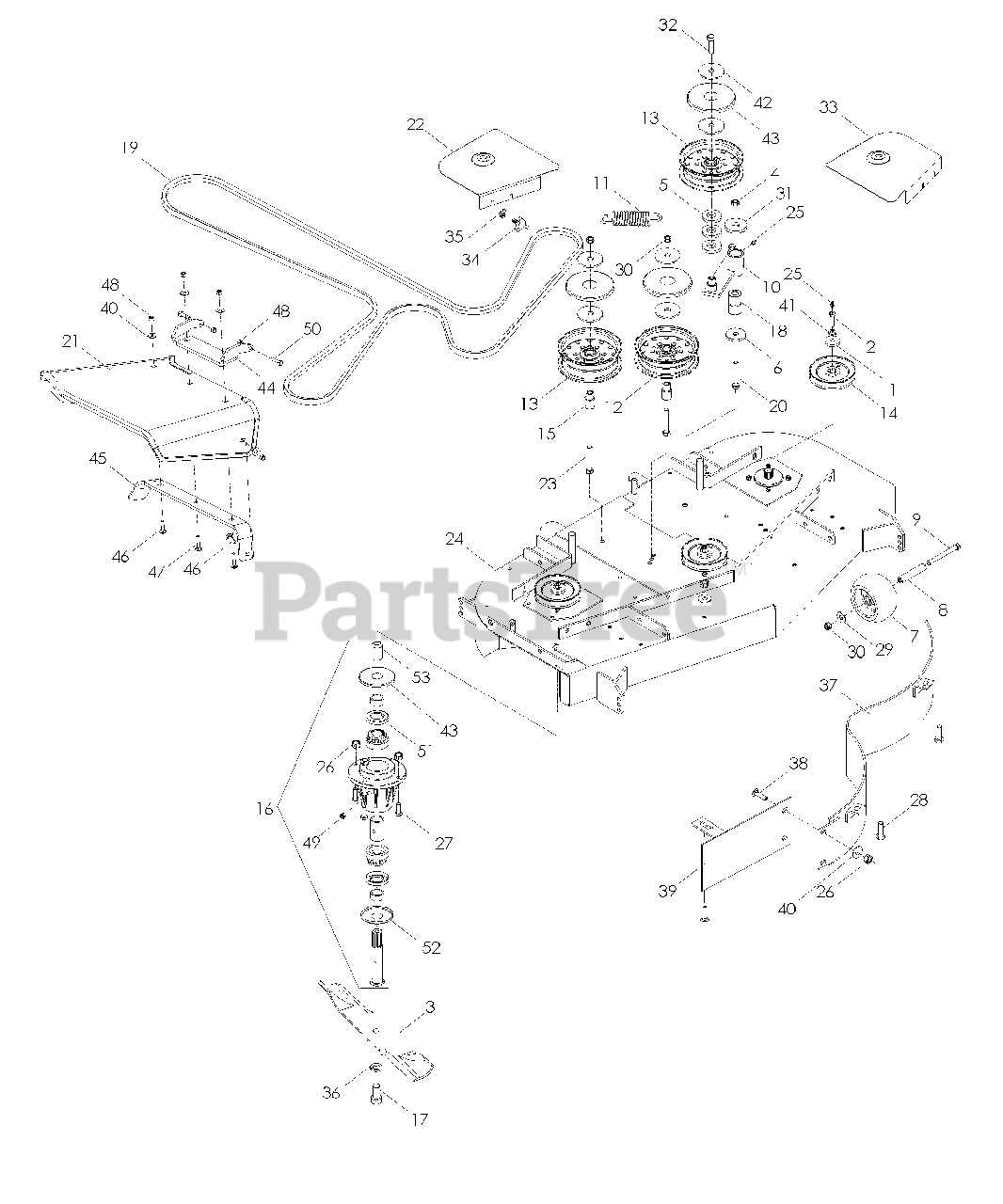

52" Cutting Deck Parts Diagram

  • Title
1

Husqvarna 539106504

WASHER, HEAVY

$

$

Not available

2

Husqvarna 539112120

HCS 7/16-20 x 1 1/2 GR8 SPEC

$30.99

$

In Stock, only 1 left!

0

3

Husqvarna 539100341

BLADE, 18"

$

$

Not available

4

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539991043

BUSHING 5/8 MACHINERY

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

7

Husqvarna 539102643

ROLLER, ANTI-SCALP

$

$

Not available

$

$

Not available

9

Husqvarna 539102754

HCS 3/8-16 x 3 1/2 GR8

$4.99

$

In Stock, Qty 13

0

10

Husqvarna 539103230

ARM, IDLER

$

$

Not available

$

$

Not available

12

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539103258

PULLEY, IDLER

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539112934

SPINDLE ASM
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

17

Husqvarna 539103299

HCS 5/8-18 x 1 1/4

$

$

Not available

18

Husqvarna 539103427

BUSHING, PIVOT

$9.49

$

In Stock, only 2 left!

0

19

Husqvarna 539109242

BELT, DECK

$103.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539103433

HCS 1/2-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

21

Husqvarna 539130901

CHUTE, RUBBER

$91.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539108908

SHIELD, RT
(Superseded to 539114202)

$103.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

24

Husqvarna 539106582

DECK W/DECALS

$

$

Not available

25

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

31

Husqvarna 539990550

WASHER 1/2 STD FLT

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 539108910

SHIELD LT
(Superseded to 539114204)

$103.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

$6.49

$

In Stock, Qty 9

0

36

Husqvarna 539990333

WASHER 5/8 SLW

$1.99

$

In Stock, Qty 6

0

37

Husqvarna 539105457

MAIN WLDMT

$267.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539105453

CENTER WLDMT

$

$

Not available

40

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

41

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

42

Husqvarna 539111897

WASHER 3/8 SPECIAL

$

$

Not available

43

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

44

Husqvarna 539130917

BRACKET, PIVOT

$148.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539130920

REINFORCEMENT, BRACKT
(Superseded to 592964402)

$31.99

$

In Stock, only 2 left!

0

46

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

47

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

48

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

49

Husqvarna 539977326

GREASE POPPET

$13.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539108754

SEAL, SHAFT

$7.99

$

In Stock, Qty 7

0

52

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

53

Husqvarna 539107419

CAP, VINYL

$

$

Not available
