WH 5219 EFQ (968999253) - Husqvarna 52" Walk-Behind Mower (2006-12) Handle and Controls Parts Diagram

52" Walk-Behind Mower

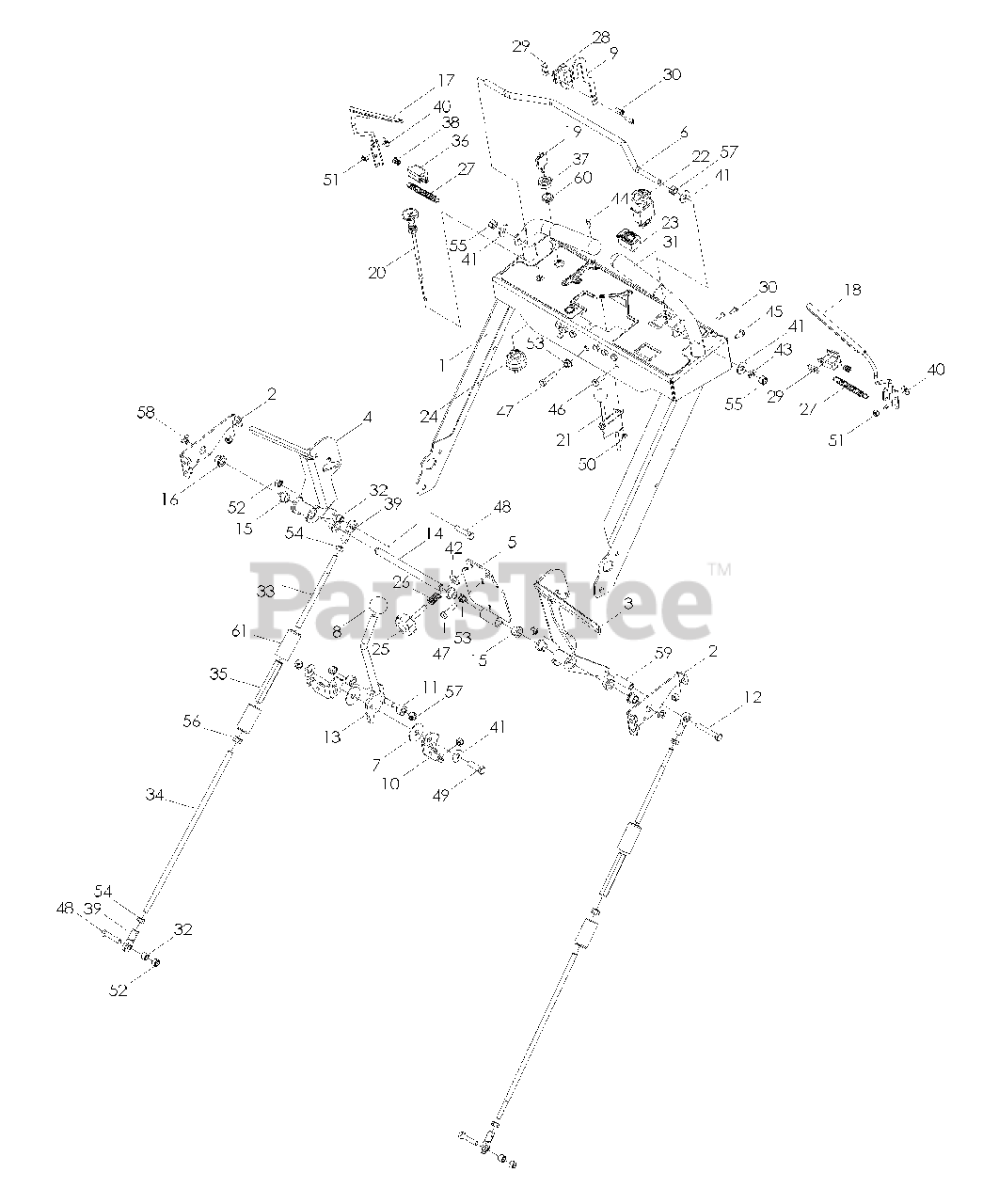

Handle and Controls Parts Diagram

  • Title
1

Husqvarna 539110580

HANDLE W/DECALS

$

$

Not available

$8.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539112289

DRIVE LEVER, LEFT

$

$

Not available

4

Husqvarna 539112291

DRIVE LEVER, RIGHT

$51.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109816

TRACKING PLATE

$28.99

$

Usually ships in 3-10 days

0

$18.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102998

WASHER, FRICTION

$8.99

$

In Stock, Qty 8

0

8

Husqvarna 539100147

KNOB, SHIFT

$8.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539109817

ARM, NEUTRAL

$

$

Not available

10

Husqvarna 539109614

PLATE, FRICTION

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

12

Husqvarna 539101721

HCS 5/16-18 x 2 3/4

$4.99

$

In Stock, Qty 7

0

13

Husqvarna 539109820

LEVER, GROUND SPEED

$26.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539109821

SHAFT, CROSS

$

$

Not available

15

Husqvarna 539100032

BUSHING, NYLON FLANGED

$

$

Not available

16

Husqvarna 539110552

BUSHING, FLANGED

$7.49

$

Usually ships in 3-10 days

0

17

$

$

Not available

18

$

$

Not available

19

Husqvarna 539104812

KEY, PADDED GRIP

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102733

CONTROL, CHOKE

$56.99

$

In Stock, Qty 5

0

21

Husqvarna 539102732

CABLE, THROTTLE

$

$

Not available

22

Husqvarna 539101768

SWITCH, CLUTCH
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

23

Husqvarna 539110074

METER, HOUR
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

24

Husqvarna 539101770

SWITCH, IGNITION

$

$

Not available

25

Husqvarna 539103003

KNOB, ADJUSTMENT

$

$

Not available

$22.99

$

In Stock, only 1 left!

0

$

$

Not available

28

Husqvarna 539101080

SWITCH, N.C.

$17.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102678

PLATE, TAPPED

$15.99

$

In Stock, Qty 9

0

30

Husqvarna 539976952

SCREW, #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

$

$

Not available

32

Husqvarna 539102827

SPACER, PULLEY

$6.49

$

In Stock, only 2 left!

0

33

Husqvarna 539109615

LINKAGE, SHORT

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539109773

LINKAGE, LOWER

$24.99

$

In Stock, only 2 left!

0

35

Husqvarna 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539923408

SWITCH N.C.

$10.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539103178

CAP, IGNITION SWITCH NUT

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539110509

SPRING, SWITCH

$

$

Not available

39

Husqvarna 539102590

BALL END, RIGHT

$27.99

$

In Stock, only 1 left!

0

40

Husqvarna 539990598

WASHER 1/4

$

$

Not available

41

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

43

Husqvarna 539990118

LOCKWASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 539990411

HCS #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990072

HCS 1/4-20 x 5/8

$3.99

$

In Stock, only 1 left!

0

46

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539100469

HCS 5/16-18 x 1 1/4
(Superseded to 539990627)

$4.99

$

In Stock, only 1 left!

0

48

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$

$

Not available

49

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

50

Husqvarna 539976977

NUT #10-24 HEX NYLOC

$

$

Not available

51

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

52

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

53

Husqvarna 539990585

NUT 5/16-18 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539990223

NUT 5/16-24

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 539990155

NUT 3/8-24 HEX GR 2

$4.99

$

In Stock, Qty 16

0

57

Husqvarna 539990546

NUT 3/8-16 HEX CNTRLK

$

$

Not available

58

Husqvarna 539101949

E-RING 1/2

$3.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539103177

NUT, IGNITION SWITCH

$3.99

$

In Stock, only 3 left!

0

$

$

Not available

Husqvarna 539110663

HARNESS, UPPER

Note: NOT SHOWN

$109.99

$

Usually ships in 3-10 days

0

Husqvarna 539976856

PLASTIC TIE

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
