WH 5219 EFQ (968999253) - Husqvarna 52" Walk-Behind Mower (2005-08) Deck 52" Parts Diagram

52" Walk-Behind Mower

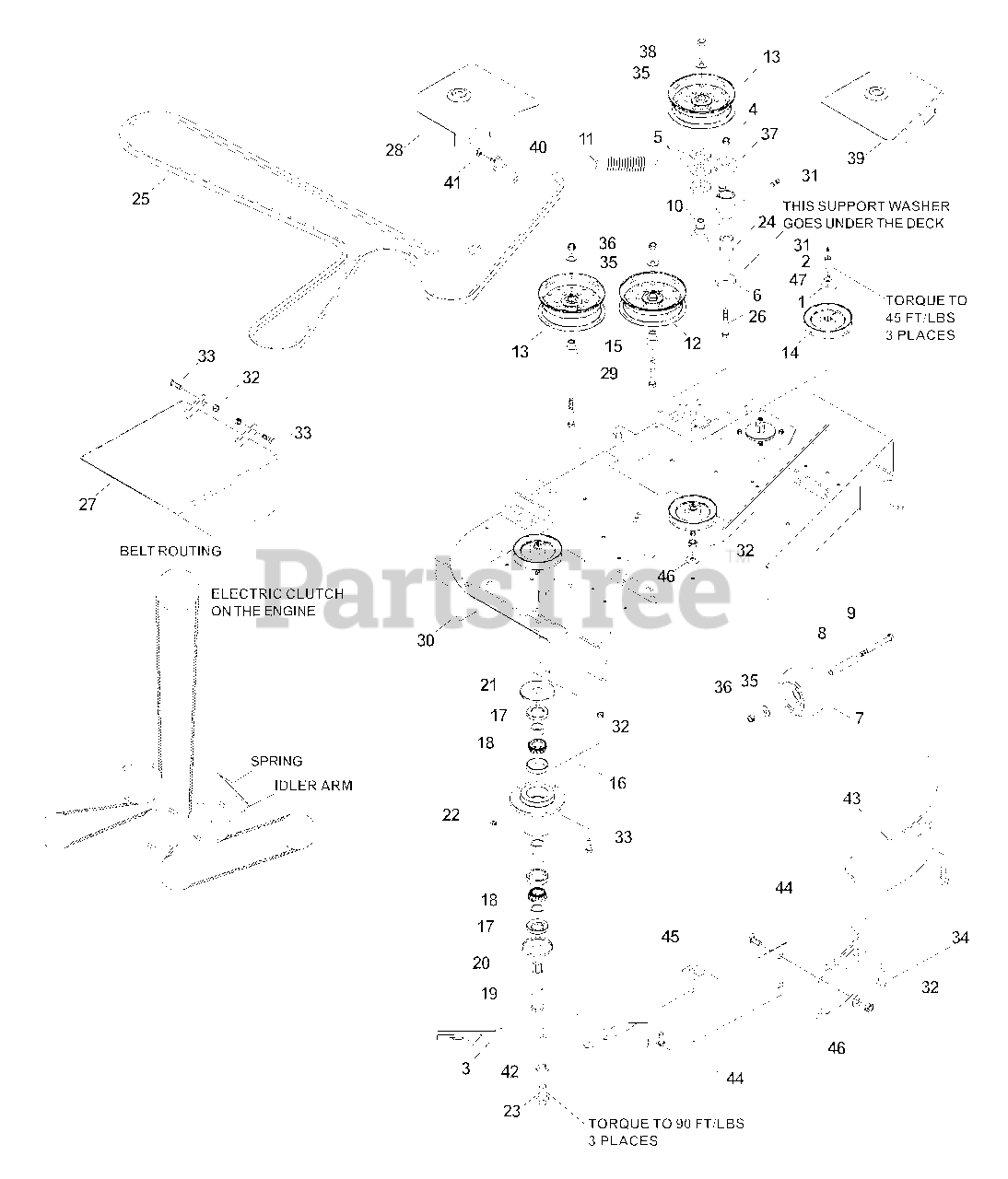

Deck 52" Parts Diagram

  • Title

1

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

2

Husqvarna 539112120

HCS 7/16-20 X 1 1/2, SPECIAL

$30.99

$

In Stock, only 1 left!

0

3

Husqvarna 539100341

BLADE 18"

$

$

Not available

4

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539991043

BUSHING, MACHINE

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

8

Husqvarna 539102698

BUSHING

$

$

Not available

9

Husqvarna 539102754

HCS, 3/8-16 X 3 1/2

$4.99

$

In Stock, Qty 13

0

10

Husqvarna 539103230

IDLER ARM

$

$

Not available

11

Husqvarna 539105192

SPRING

$

$

Not available

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

14

Husqvarna 539107277

PULLEY
(Superseded to 539112124)

$45.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539108773

SPINDLE, COMPLETE
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

17

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

18

Husqvarna 539108758

SPACER

$

$

Not available

19

Husqvarna 539108760

SPINDLE
(Superseded to 539112122)

$

$

Not available

20

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 539977326

GREASE POPET

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103299

HCS, 5/8-18 X 1 1/4

$

$

Not available

24

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

25

Husqvarna 539109242

BELT

$103.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 539107312

DEFLECTOR CHUTE

$399.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539108908

SHIELD, RIGHT
(Superseded to 539114202)

$103.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539106582

DECK W/DECALS

$

$

Not available

31

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990184

NUT, 5/16-18, CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS, 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539976934

HCS, 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990546

NUT, 3/8-16 CENTER LOCK

$

$

Not available

37

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990582

HCS, 3/8-16 X 1, SERR. HD.

$

$

Not available

39

Husqvarna 539108910

SHIELD, LEFT
(Superseded to 539114204)

$103.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539104411

KNOB
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

41

Husqvarna 539104763

U-CLIP

$6.49

$

In Stock, Qty 9

0

42

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

43

Husqvarna 539105457

BAFFLE, MAIN

$267.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990799

RHSNB, 5/16-18 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539105453

BAFFLE, CENTER

$

$

Not available

46

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available
