WH 5218 (966638601) - Husqvarna 52" Walk-Behind Mower (2010-09) FRAME Parts Diagram

52" Walk-Behind Mower

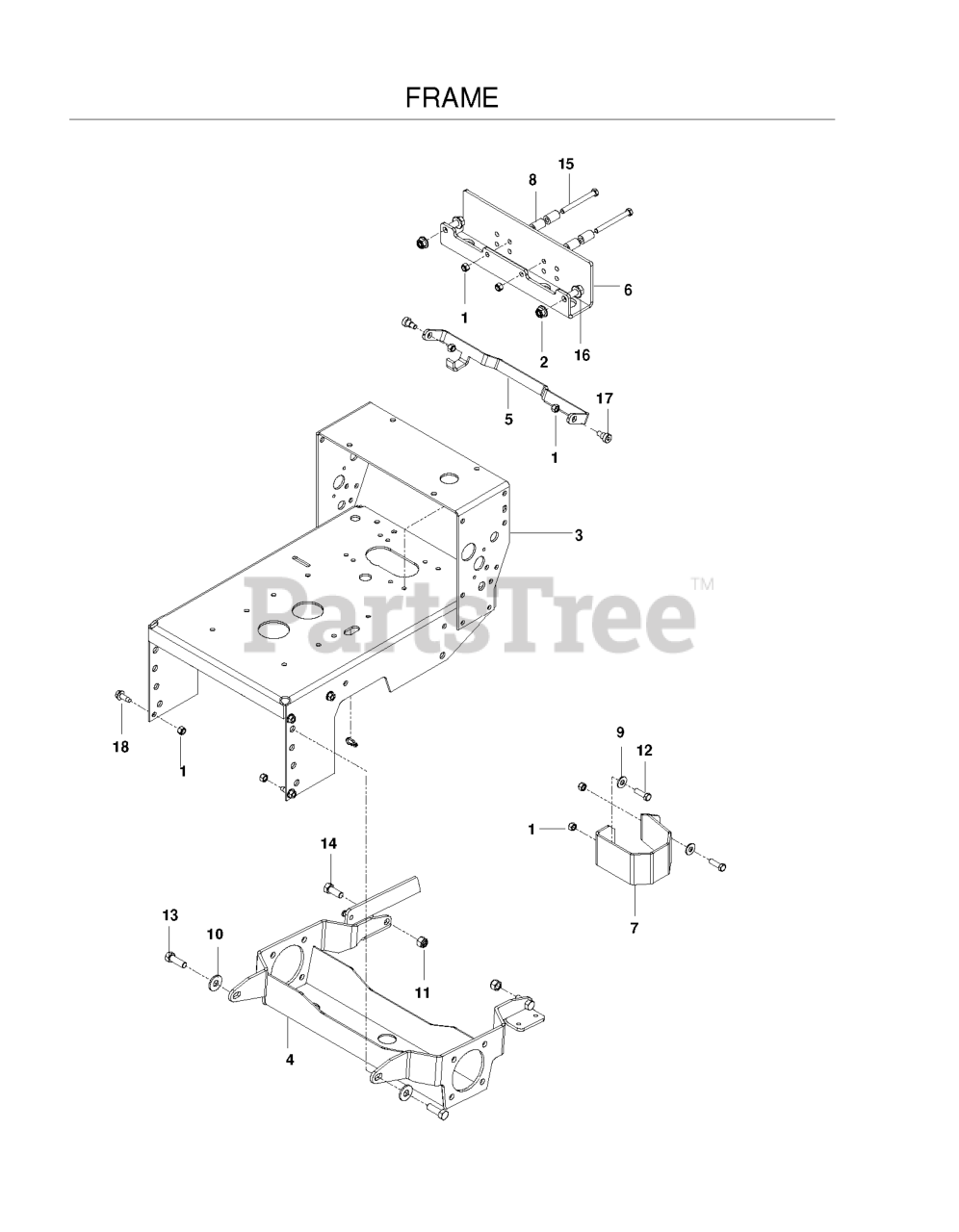

FRAME Parts Diagram

  • Title

13

Husqvarna 539108374

HCS 1/2-13 X 1-1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 539132509

AXLE HYDRO

$

$

Not available

8

Husqvarna 539103543

SPACER

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 522478001

ENGINE CHASSIS W/DECAL

$

$

Not available

1

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

5

Husqvarna 525851002

BAR, THROWOUT OR

$

$

Not available

18

Husqvarna 539107476

BOLT 3/8-16 X 1.0

$6.49

$

In Stock, only 1 left!

0

7

Husqvarna 505189002

GUARD FILTER PAINTED

$

$

Not available

2

Husqvarna 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

17

Husqvarna 539113621

SB 3/8-16 X 3/8 SKT HD ZD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 574331502

BUMPER, OR

$

$

Not available

10

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

14

Husqvarna 539108369

HCS 1/2-13 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539991126

HCS3/8-16.X

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539109104

LOWER HARNESS

Note: NOT SHOWN

$

$

Not available
