WH 5217 (966947003) - Husqvarna 52" Walk-Behind Mower (2008-10) 48" Mower Deck and Upper Deck Parts Diagram

52" Walk-Behind Mower

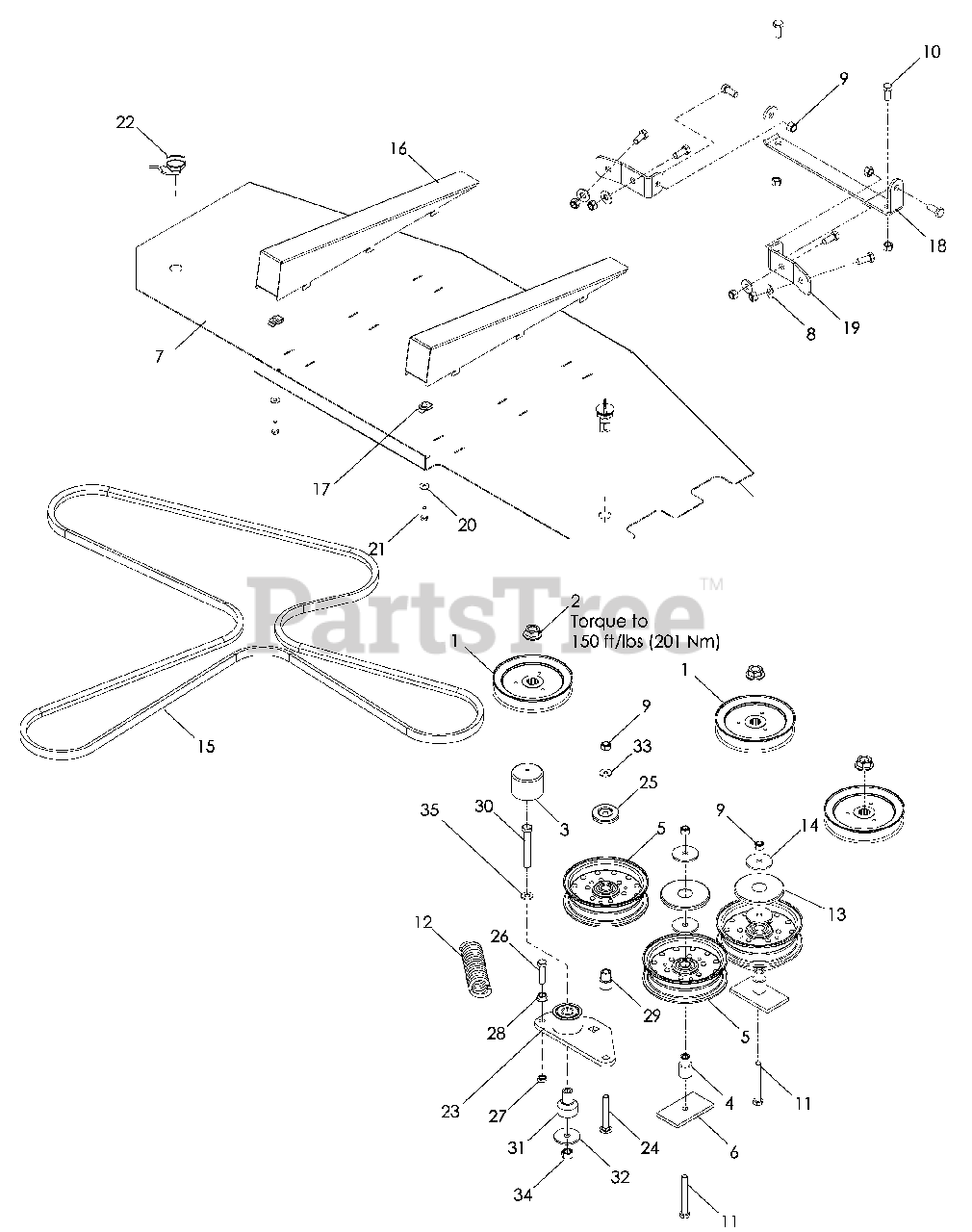

48" Mower Deck and Upper Deck Parts Diagram

  • Title

$

$

Not available

2

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

3

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

4

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

5

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

6

Husqvarna 539103303

PAD, PAINTED
(Superseded to 539106504)

$

$

Not available

7

Husqvarna 505290202

COVER, BELT, 48

$

$

Not available

8

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539108507

HCS 3/8-16 x 7/8

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 10

0

$14.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 539111897

WASHER, 3/8 SPECIAL

$

$

Not available

15

Husqvarna 539109244

BELT, DECK

$

$

Not available

$

$

Not available

17

Husqvarna 539110813

RETAINER ¼-20 "U" TYPE

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539132581

HINGE, BIN

$

$

Not available

19

Husqvarna 539132579

BASE, HINGE

$

$

Not available

20

Husqvarna 539990055

WASHER, ¼ FLAT SAE

$3.99

$

In Stock, Qty 19

0

21

Husqvarna 539990580

HCS ¼-20 x ¾

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 510126701

LATCH, SHORT WING

$

$

Not available

23

Husqvarna 539130391

ARM, IDLER, W/BEARINGS

$

$

Not available

24

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

26

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

27

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

28

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 5

0

30

Husqvarna 539103433

HCS ½-13 x 3¼

$6.99

$

In Stock, only 4 left!

0

31

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

33

Husqvarna 522023401

WASHER, THICK 3/8

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539115528

WASHER, BELLEVILLE ½

$3.99

$

Usually ships in 3-10 days

0
