WH 4817 - Husqvarna 48" Walk-Behind Mower (2008-08) HANDLE & CONTROLS Parts Diagram

48" Walk-Behind Mower

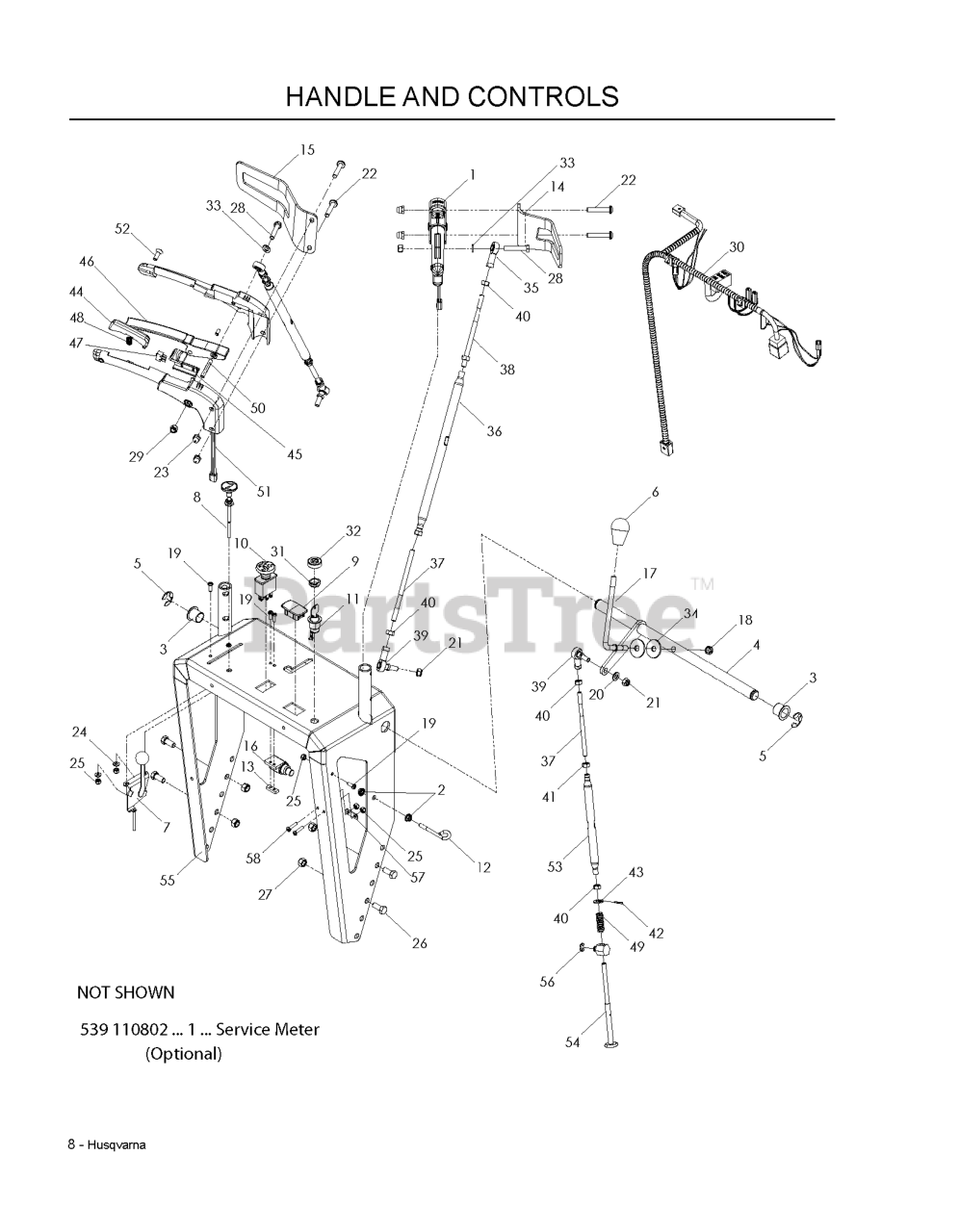

HANDLE & CONTROLS Parts Diagram

  • Title

48

Husqvarna 539132599

SPRING

$26.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539132614

ROLL PIN - 3 MM

$

$

Not available

14

Husqvarna 522421802

GUARD, HAND - OFFSET RH, PTD

$

$

Not available

34

Husqvarna 539912063

CONE WASHER

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132688

THROTTLE CONTROL

$60.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539132607

NUT 8MM X 1.25 HEX ZD

$

$

Not available

57

Husqvarna 510417602

MODULE
(Superseded to 539101781)

$

$

Not available

15

Husqvarna 522421702

GUARD, HAND - OFFSET LH, PTD

$

$

Not available

20

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

56

Husqvarna 539132613

E-RING, 10MM

$

$

Not available

58

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 505203401

NUT ACORN 5/16-18

$

$

Not available

4

Husqvarna 539132628

SPEED CONTROL

$54.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539132618

LEVER

$

$

Not available

16

Husqvarna 539020017

SWITCH, NC PLUNGER

$28.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539103153

NUT M8-1.25 TOP NYL GR10 ZD

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 522950501

GRIP, FOAM

Note: NOT SHOWN

$

$

Not available

12

Husqvarna 539132676

GUIDE - ROPE

$

$

Not available

36

Husqvarna 539132601

TUBE - ADJUSTING

$

$

Not available

55

Husqvarna 522478101

HANDLE W/DECAL

$

$

Not available

35

Husqvarna 539132602

ROD END 8 MM, RH

$

$

Not available

19

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

44

Husqvarna 539132674

OPC ACTUATOR

$11.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539132635

PIN - GROOVE 1/4 X 1-1/2

$

$

Not available

45

Husqvarna 539132617

LOCK - NEUTRAL

$

$

Not available

53

Husqvarna 539132609

TUBE - ADJUSTING

$

$

Not available

33

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

3

Husqvarna 539132520

BEARING - FLANGE, 20MM

$

$

Not available

25

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

24

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

10

Husqvarna 539101768

RP.SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 9

0

32

Husqvarna 539103178

CAP IGNITION NUT

$4.99

$

Usually ships in 3-10 days

0

22

Husqvarna 505203301

SCR. PAN HD - 5/16-18 X 1.75 L

$

$

Not available

47

Husqvarna 539132620

SWITCH

$

$

Not available

1

Husqvarna 539132623

GRIP ASM

$

$

Not available

2

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539130208

CONTROL-CHOKE 51"
(Superseded to 539109954)

$43.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539132675

HARNESS - SWITCH

$

$

Not available

29

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 7

0

13

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

11

Husqvarna 539911853

KEY SWITCH, COMPLETE

$

$

Not available

31

Husqvarna 539103177

DNO IGNITION NUT

$3.99

$

In Stock, only 3 left!

0

39

Husqvarna 539132603

ROD END 8 MM, W/STUD

$

$

Not available

18

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

17

Husqvarna 539132626

ROD-SHIFT R/B 522676001
(Superseded to 522676001)

$

$

Not available

27

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 510366901

HARNESS, UPPER HANDLE

$

$

Currently unavailable

5

Husqvarna 539132629

E-RING, 20MM

$

$

Not available

--

Husqvarna 539110802

SPRING, SEAT LEVER

Note: NOT SHOWN

$

$

Not available

9

Husqvarna 532404951

PLUG DASH
(Superseded to 532439976)

$6.49

$

Usually ships in 3-10 days

0

52

Husqvarna 539132677

SCREW - OVAL HEAD 6MM

$

$

Not available

28

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0
