WH 4817 ETS (968999123) - Husqvarna 48" Walk-Behind Mower (2006-02) Front Deck Assembly 48" Parts Diagram

48" Walk-Behind Mower

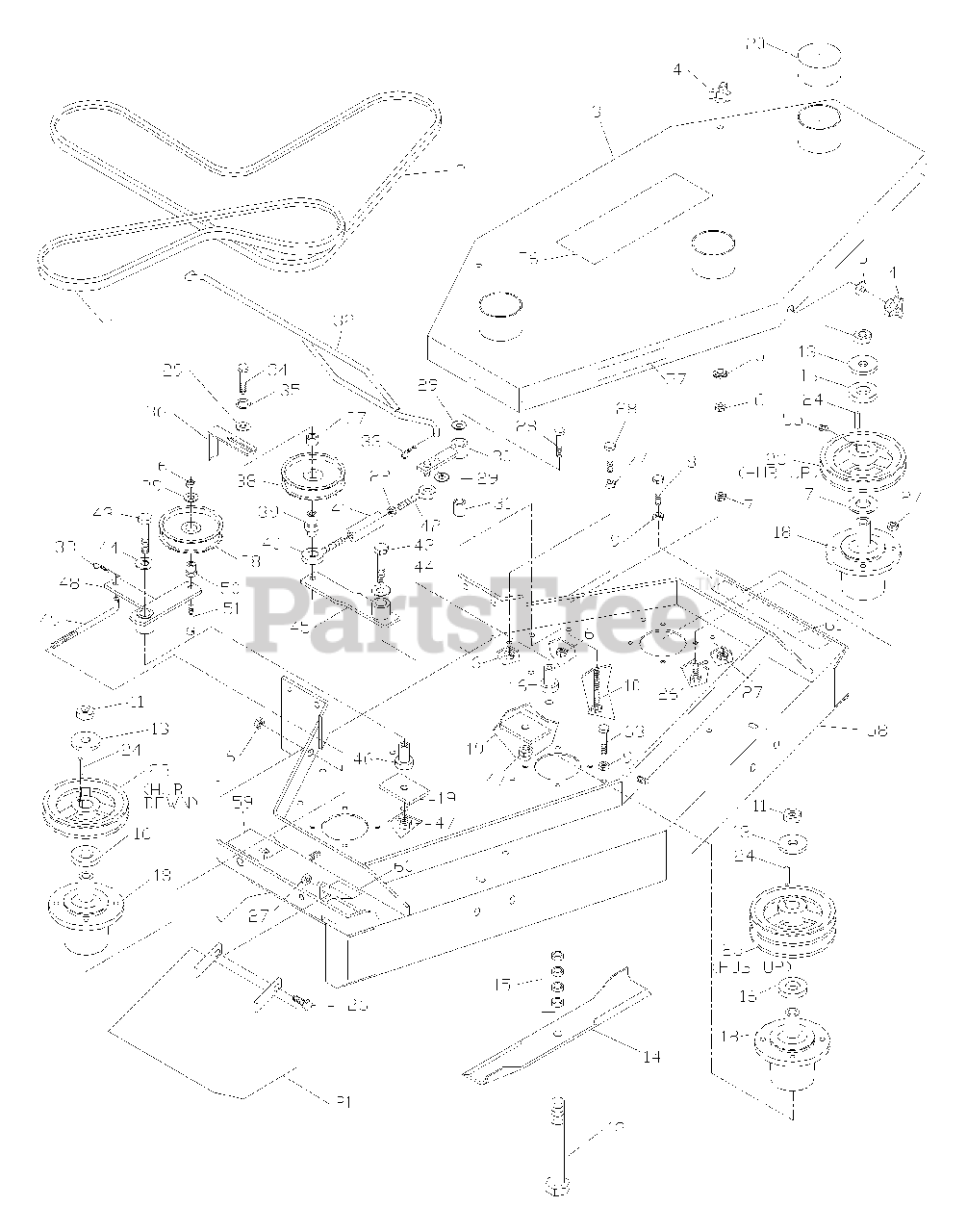

Front Deck Assembly 48" Parts Diagram

  • Title
1

Husqvarna 539100024

AUX. BLADE BELT

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 539101958

BLADE BELT 48

$121.99

$

In Stock, only 1 left!

0

3

Husqvarna 539104562

48" BELT SHIELD

$364.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102070

THREE PRONG KNOB

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 539102056

3/8 SEALING WASHER

$3.99

$

Usually ships in 3-10 days

0

6

$

$

Not available

7

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990553

HCS 5/16CX3

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990585

HFLN 5/16C

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102334

TAPBOLT-3/8C X 4 1/2

$3.99

$

Usually ships in 3-10 days

0

11

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 539102332

HCS 5/8F X 8 1/2

$

$

Not available

12

Husqvarna 539101100

HCS 5/8F X 9(CENTER)

$20.99

$

In Stock, only 1 left!

0

13

Husqvarna 539106504

SUPPORT WASHER

$

$

Not available

14

Husqvarna 539100340

BLADE 16 1/4"

$26.99

$

In Stock, only 3 left!

0

15

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

$

$

Not available

17

Husqvarna 539102675

MACH. BUSHING

$10.99

$

In Stock, only 3 left!

0

18

Husqvarna 539102440

HOUSINGASM.
(Superseded to 539107418)

$

$

Not available

$27.99

$

Usually ships in 3-10 days

0

20

$7.99

$

In Stock, Qty 9

0

21

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990196

5/16C HEX NUT

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976398

PULLEY W/SETSCRS

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539101995

1/4SQ. KEY X 1 1/8

$

$

Not available

25

Husqvarna 539101819

DOUBLE PULLEY

$148.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

27

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990517

FW 3/8 STD

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101979

ENGAGEMENT ARM

$62.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102031

BLADE ROD 48"

$

$

Not available

33

Husqvarna 539976988

#2 HAIRPIN

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990118

3/8 LOCK WASHER
(Superseded to 596238701)

$4.99

$

In Stock, Qty 14

0

36

$37.99

$

Usually ships in 3-10 days

0

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

39

Husqvarna 539101980

EYEBOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101981

LEFT HAND EYEBOLT

$13.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101982

RH. EYEBOLT

$43.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 539990550

1/2 FLAT WASHER

$3.99

$

Usually ships in 3-10 days

0

45

$103.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539101331

1/2C NYLOC NUT
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539102237

AUX. IDLER ARM

$96.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539102337

TENSION ROD

$13.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

51

Husqvarna 539990730

HCS 3/8C X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990247

7/16 LOCK WASHER

$

$

Not available

54

Husqvarna 539990449

7/16C HEX NUT

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539976956

5/16 NYLOC SETSCREW

$

$

Not available

56

Husqvarna 539104790

DECAL, HUSQVARNA

$

$

Not available

57

Husqvarna 539105071

DECAL, NASCAR

$

$

Not available

58

Husqvarna 539104564

48" DECK W/DECALS

$

$

Not available

59

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

60

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

63

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

64

Husqvarna 539106599

DECAL, ETS

$

$

Not available
