WH 4817 EFQ - Husqvarna 48" Walk-Behind Mower (2008-08) FRAME Parts Diagram

48" Walk-Behind Mower

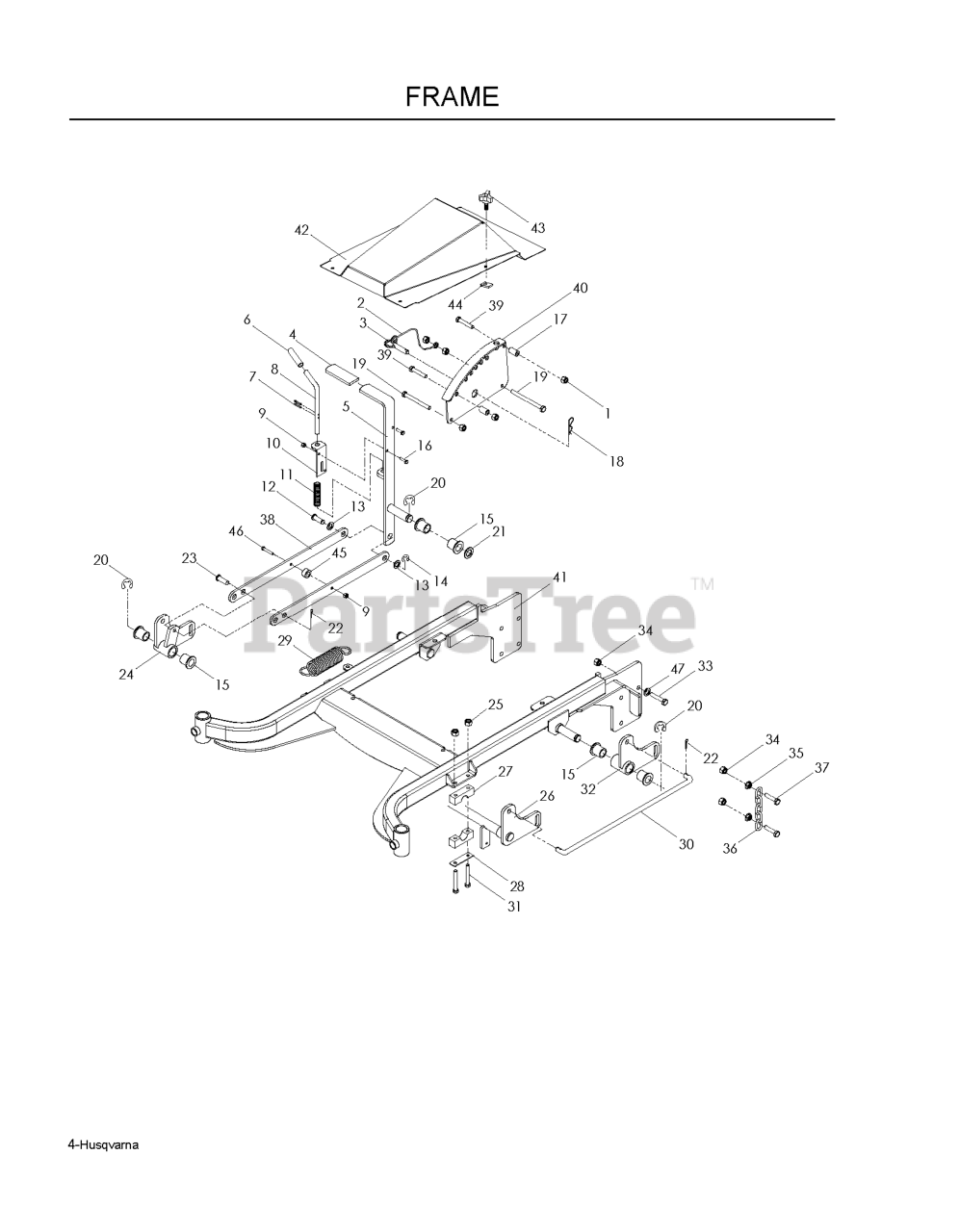

FRAME Parts Diagram

  • Title

12

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102526

HITCH PIN

$21.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

31

Husqvarna 539991046

BOLT 5/16C X 2 1/2

$4.99

$

In Stock, Qty 8

0

13

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

29

Husqvarna 539102642

SPRING

$31.99

$

In Stock, only 1 left!

0

36

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539103534

PIN MT, UPPER

$27.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539105604

LIFT LEVER

$70.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

1

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

40

Husqvarna 539105582

HEIGHT ADJ PLATE

$70.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539106064

HOOD

$

$

Not available

37

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539108358

DECK ROD

$

$

Not available

17

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

38

Husqvarna 539106622

FLAT LINKAGE

$

$

Not available

15

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

45

Husqvarna 539923515

SPACER

$5.99

$

In Stock, only 2 left!

0

24

Husqvarna 539107032

BELLCRANK, RR-BLACK

$51.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539100266

BOLT HEX 1/4 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990591

HCS 3/8C X 4 1/2

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539107031

BELCRANK, LR

$33.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101050

GRIP

$3.99

$

In Stock, only 4 left!

0

27

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539102515

GRIP

$

$

Not available

23

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$5.99

$

In Stock, Qty 11

0

39

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

26

Husqvarna 539107030

FRONT LIFT ARM

$84.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102563

LANYARD

$9.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539106595

FRONT FRAME (ORANGE)

$755.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539104523

PIN

$

$

Not available

43

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

7

Husqvarna 539106532

ROLL PIN

$3.99

$

In Stock, Qty 5

0

44

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

47

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101058

SPRING

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0
