WH 4817 EFQ - Husqvarna 48" Walk-Behind Mower (2008-08) 48"/122CM CUTTING DECK Parts Diagram

48" Walk-Behind Mower

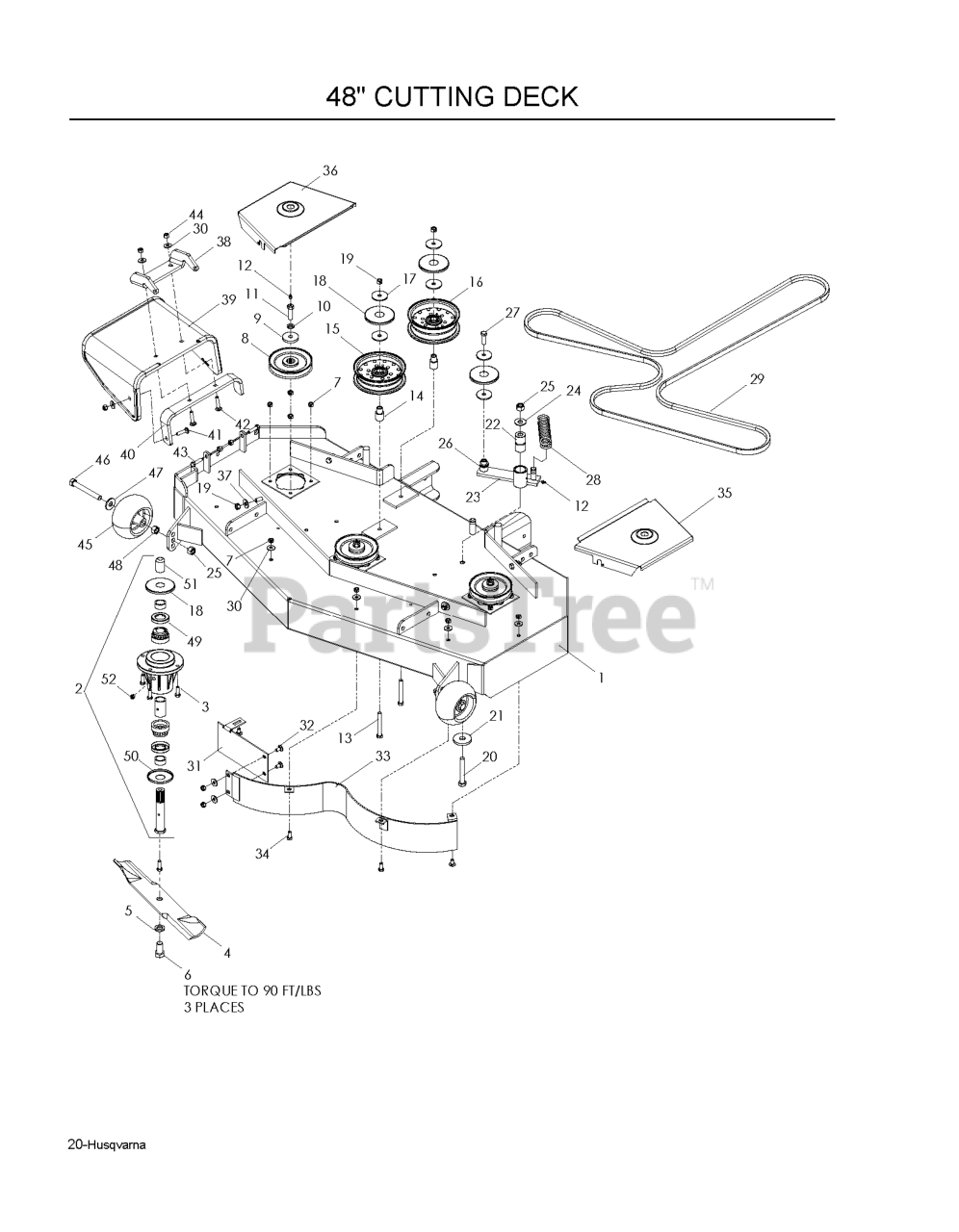

48"/122CM CUTTING DECK Parts Diagram

  • Title

35

Husqvarna 539108904

LT 48 SHIELD, ORG

$

$

Not available

20

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

5

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

46

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

7

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

12

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

14

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

27

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

52

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

49

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

31

Husqvarna 539105444

CENTER BAFFLE 48"

$

$

Not available

50

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

33

Husqvarna 539105448

MAIN BAFFLE - 48" DECK BLK

$364.99

$

In Stock, only 1 left!

0

11

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

39

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$60.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539109243

BELT, DECK

$85.99

$

In Stock, only 1 left!

0

1

Husqvarna 539106576

DECK W/DECALS 48"

$755.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539112934

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

9

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

22

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 3 left!

0

40

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available

42

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

26

Husqvarna 539991043

BUSHING

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

16

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

36

Husqvarna 539108902

RT 48 SHIELD, ORG

$

$

Not available

24

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 539130916

PIVOT BRACKET - CHUTE

$36.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

6

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

15

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

41

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

48

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

37

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539112141

PULLEY 42-48

$43.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103230

IDLER ARM

$

$

Not available

30

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539107419

VINYL CAP

$

$

Not available

4

Husqvarna 539100340

BLADE OEM 16 1/4"

$26.99

$

In Stock, only 3 left!

0

19

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

18

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0
