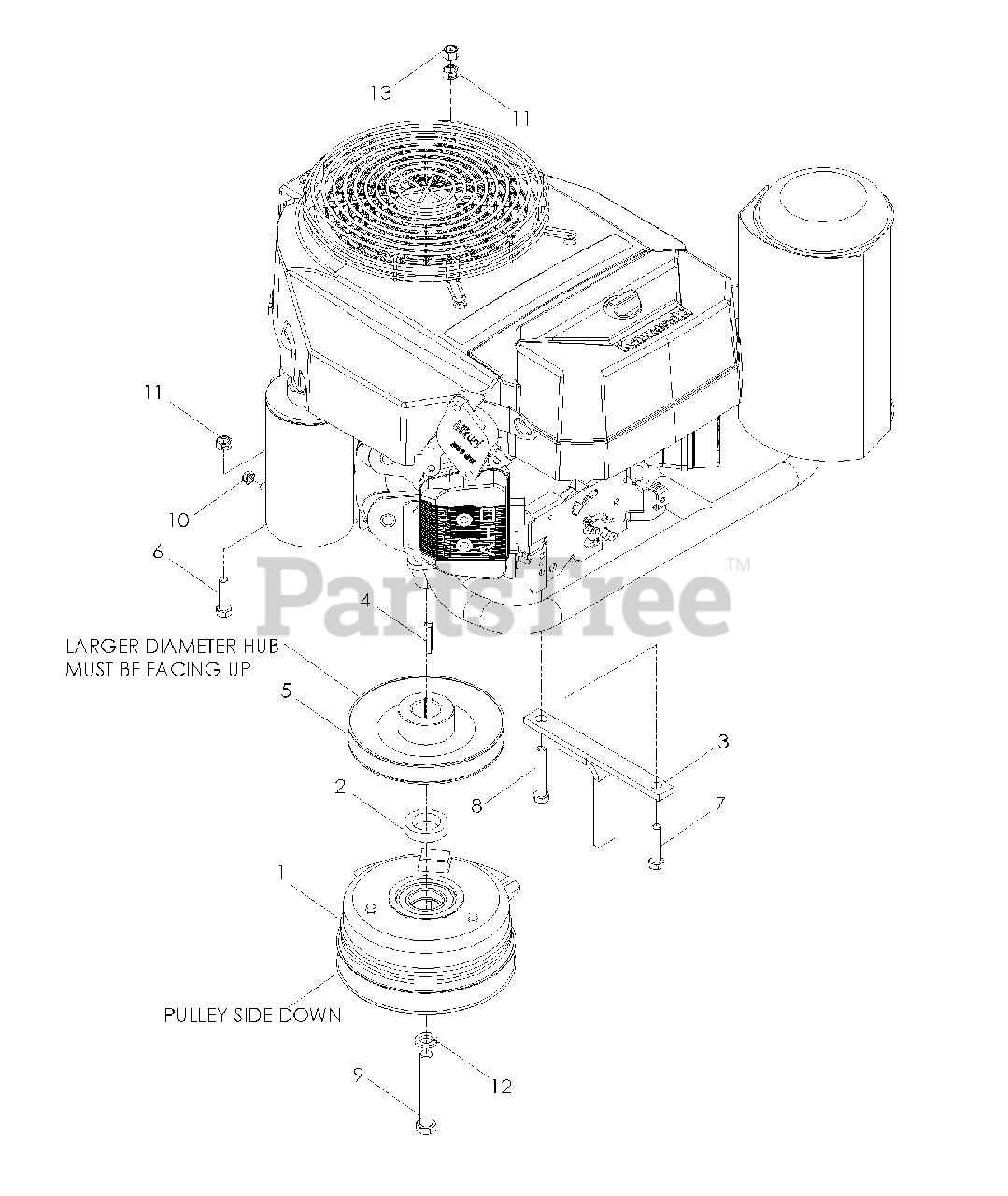

WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2008-08) Engine 17HP and 19HP) Parts Diagram

48" Walk-Behind Mower

Engine 17HP and 19HP) Parts Diagram

  • Title

1

Husqvarna 539109245

CLUTCH, 125 FT/LBS

$364.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539109703

SPACER

$

$

Not available

3

Husqvarna 539106819

TIE DOWN, CLUTCH

$

$

Not available

4

Husqvarna 539101995

KEY1/4 SQ x 1 1/8

$

$

Not available

5

Husqvarna 539105610

PULLEY, PUMP

$35.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 539976935

HCS 5/16-18 x 1 1/2

$

$

Not available

8

Husqvarna 539976937

HCS 5/16-18 x 2

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539923388

HCS 7/16-20 x 3

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539108120

NUT 1/4-20 THIN NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

11

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990247

WASHER 7/16 SLW

$

$

Not available

13

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

Husqvarna 539110662

HARNESS, LOWER

Note: NOT SHOWN

$56.99

$

Usually ships in 3-10 days

0
