WH 4817 EFQ (968999252) - Husqvarna 48" Walk-Behind Mower (2005-08) Deck 48" Parts Diagram

48" Walk-Behind Mower

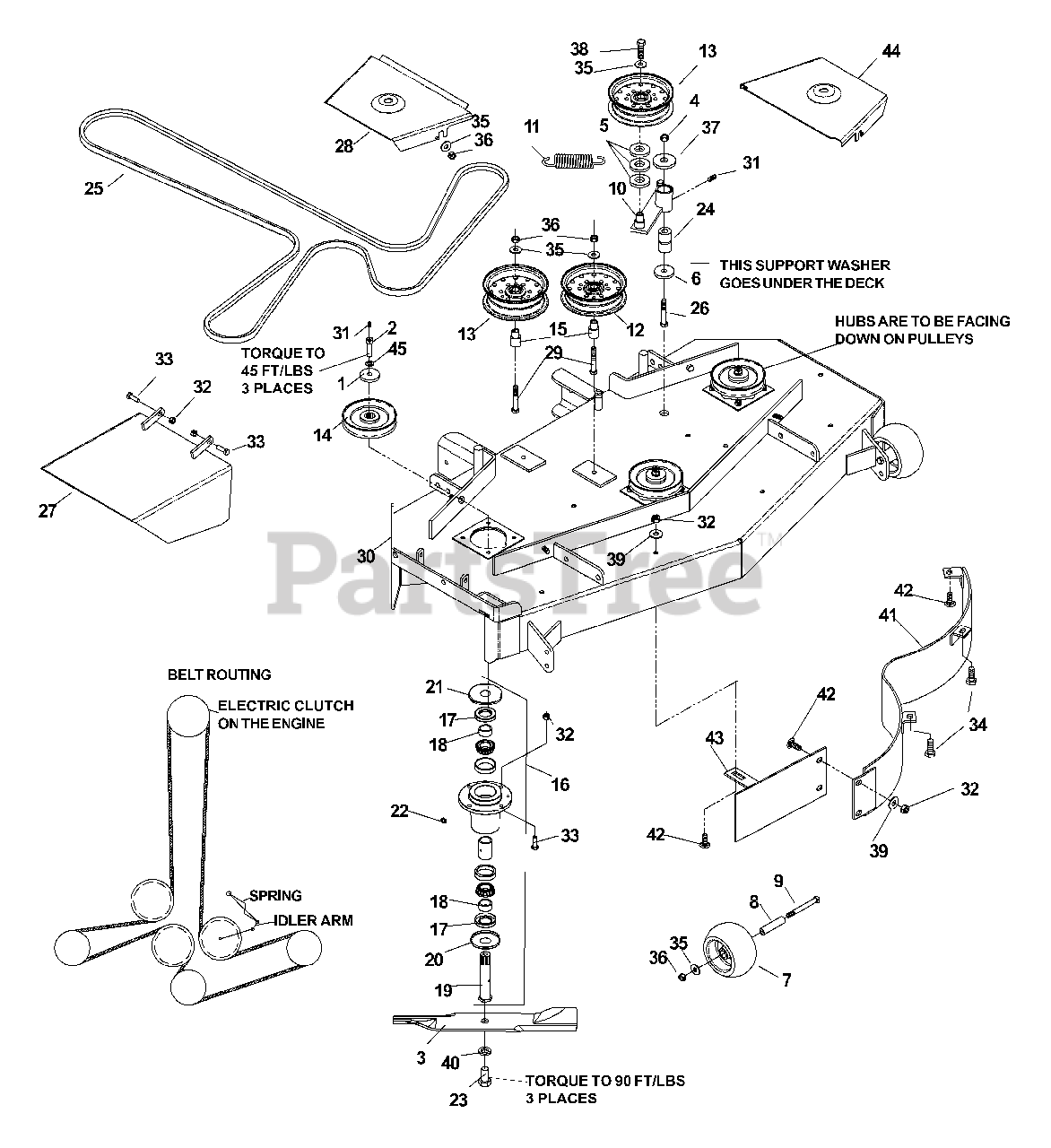

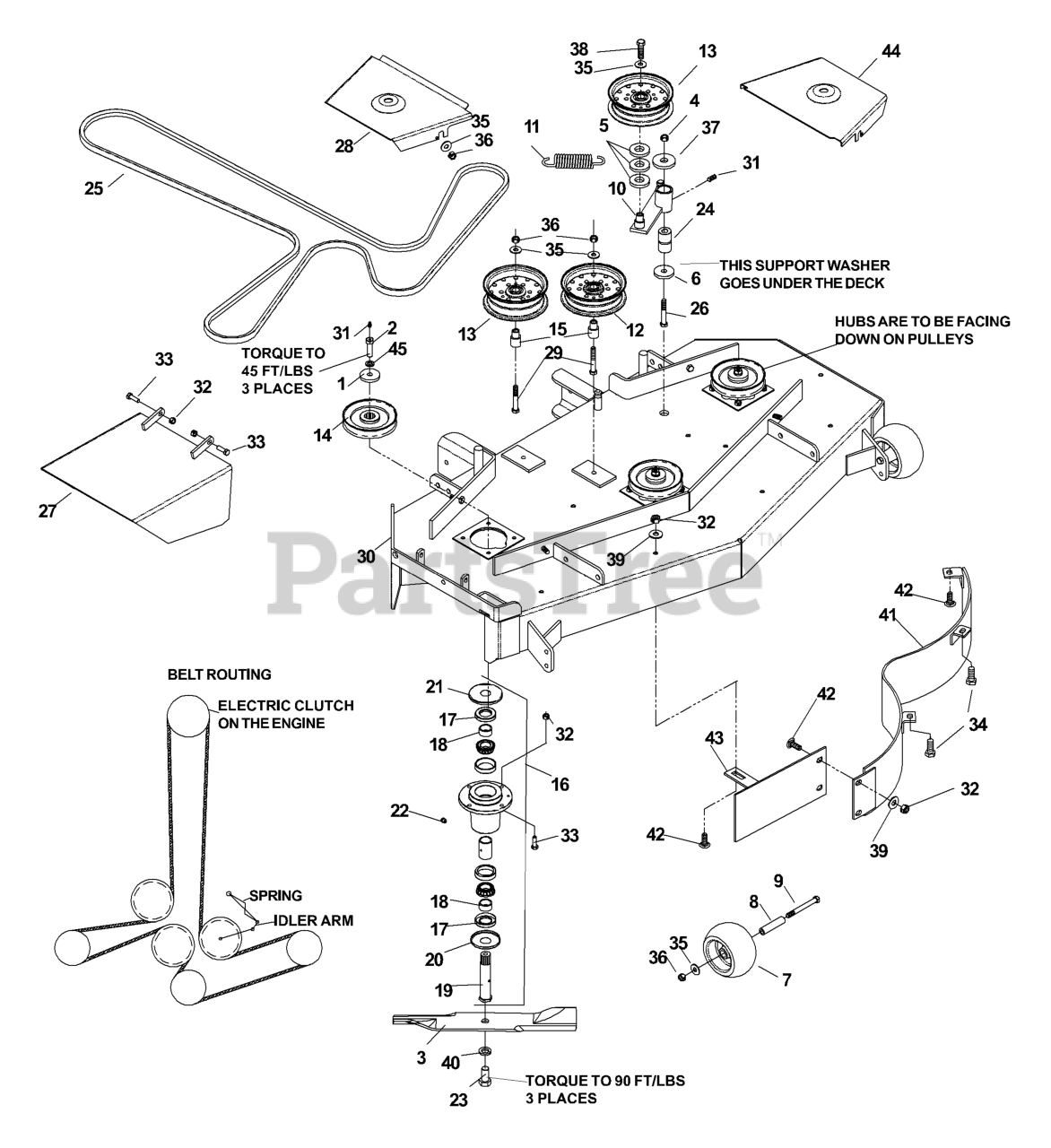

Deck 48" Parts Diagram

  • Title

1

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

2

Husqvarna 539112120

HCS 7/16-20 X 1 1/2, SPECIAL

$30.99

$

In Stock, only 1 left!

0

3

Husqvarna 539100340

BLADE 16 1/4"

$26.99

$

In Stock, only 3 left!

0

4

Husqvarna 539101331

NUT, 1/2-13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

5

Husqvarna 539991043

BUSHING, MACHINE

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

7

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

8

Husqvarna 539102698

BUSHING

$

$

Not available

9

Husqvarna 539102754

HCS, 3/8-16 X 3 1/2

$4.99

$

In Stock, Qty 13

0

10

Husqvarna 539103230

IDLER ARM

$

$

Not available

11

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

12

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

14

Husqvarna 539107276

PULLEY
(Superseded to 539112141)

$43.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

16

Husqvarna 539108773

SPINDLE ASSEMBLY (COMPLETE)
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

17

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 11

0

18

Husqvarna 539108758

SPACER

$

$

Not available

19

Husqvarna 539108760

SPINDLE
(Superseded to 539112122)

$

$

Not available

20

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

21

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

22

Husqvarna 539977326

GREASE POPET

$13.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539103299

HCS, 5/8-18 X 1 1/4

$

$

Not available

24

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

25

Husqvarna 539109243

BELT, 48"

$85.99

$

In Stock, only 2 left!

0

26

Husqvarna 539103433

HCS, 1/2-13 X 3 1/4

$6.99

$

In Stock, only 4 left!

0

27

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539108902

SHIELD, RIGHT

$

$

Not available

29

Husqvarna 539990637

HCS, 3/8-16 X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539106576

DECK W/DECALS

$755.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

32

Husqvarna 539990184

NUT, 5/16 CENTER LOCK

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS, 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539976934

HCS, 5/16-18 X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

35

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990546

NUT, 3/8-16, CENTER LOCK

$

$

Not available

37

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990582

HCS 3/8-16 X 1, SERR. HD.

$

$

Not available

39

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

40

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

41

Husqvarna 539105448

BAFFLE, MAIN

$364.99

$

In Stock, only 1 left!

0

42

Husqvarna 539990799

RHSNB 5/16-18 X 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

43

Husqvarna 539105444

BAFFLE, CENTER

$

$

Not available

44

Husqvarna 539108904

SHIELD, LEFT

$

$

Not available

45

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available
