WH 4817 E (968999238) - Husqvarna 48" Walk-Behind Mower (2005-08) Engine Parts Diagram

48" Walk-Behind Mower

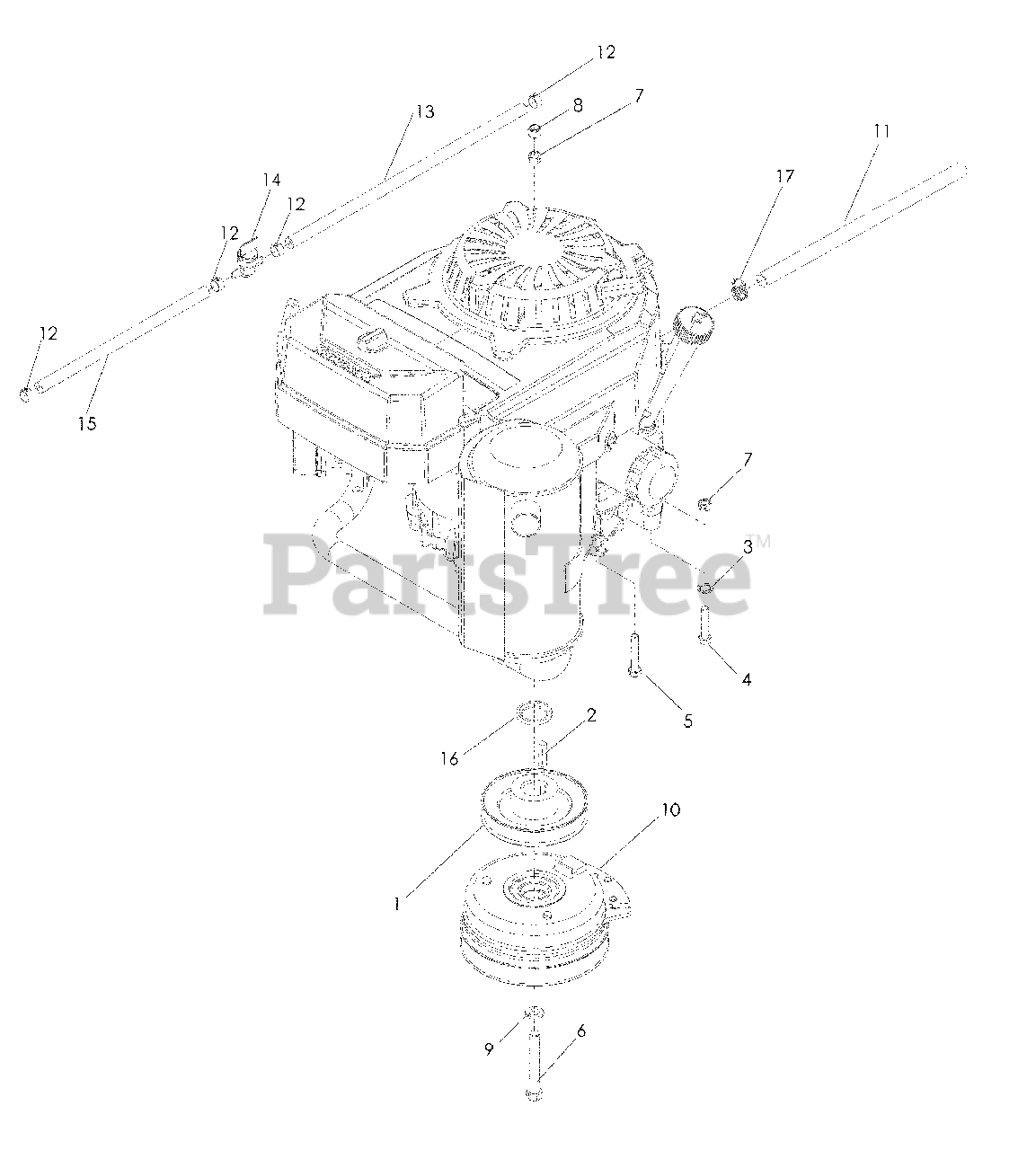

Engine Parts Diagram

  • Title

1

Husqvarna 539109639

PULLEY

$

$

Not available

2

Husqvarna 539101995

KEY, ¼" SQ. x 1 1/8"

$

$

Not available

3

Husqvarna 539990390

WASHER, 3/8 INTR TH

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539976935

HCS, 5/16-18 x 1½

$

$

Not available

5

Husqvarna 539990669

HCS, 5/16-18 x 1¾
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

6

Husqvarna 539923388

HCS, 7/16-20 x 3

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

10

Husqvarna 539109245

CLUTCH, 125 FT/LB

$364.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539107937

HOSE, OIL DRAIN

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539104993

FUEL LINE, 14"

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

15

Husqvarna 539932956

FUEL LINE, 10"

$

$

Not available

16

Husqvarna 539109759

SPACER

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539976966

CLAMP, HOSE, 5/16-7/8

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 539105637

CLUTCH HARNESS

Note: NOT SHOWN

$26.99

$

In Stock, Qty 6

0
