WH 4817 (968999238) - Husqvarna 48" Walk-Behind Mower (2005-08) HYDRAULIC FRAME Parts Diagram

48" Walk-Behind Mower

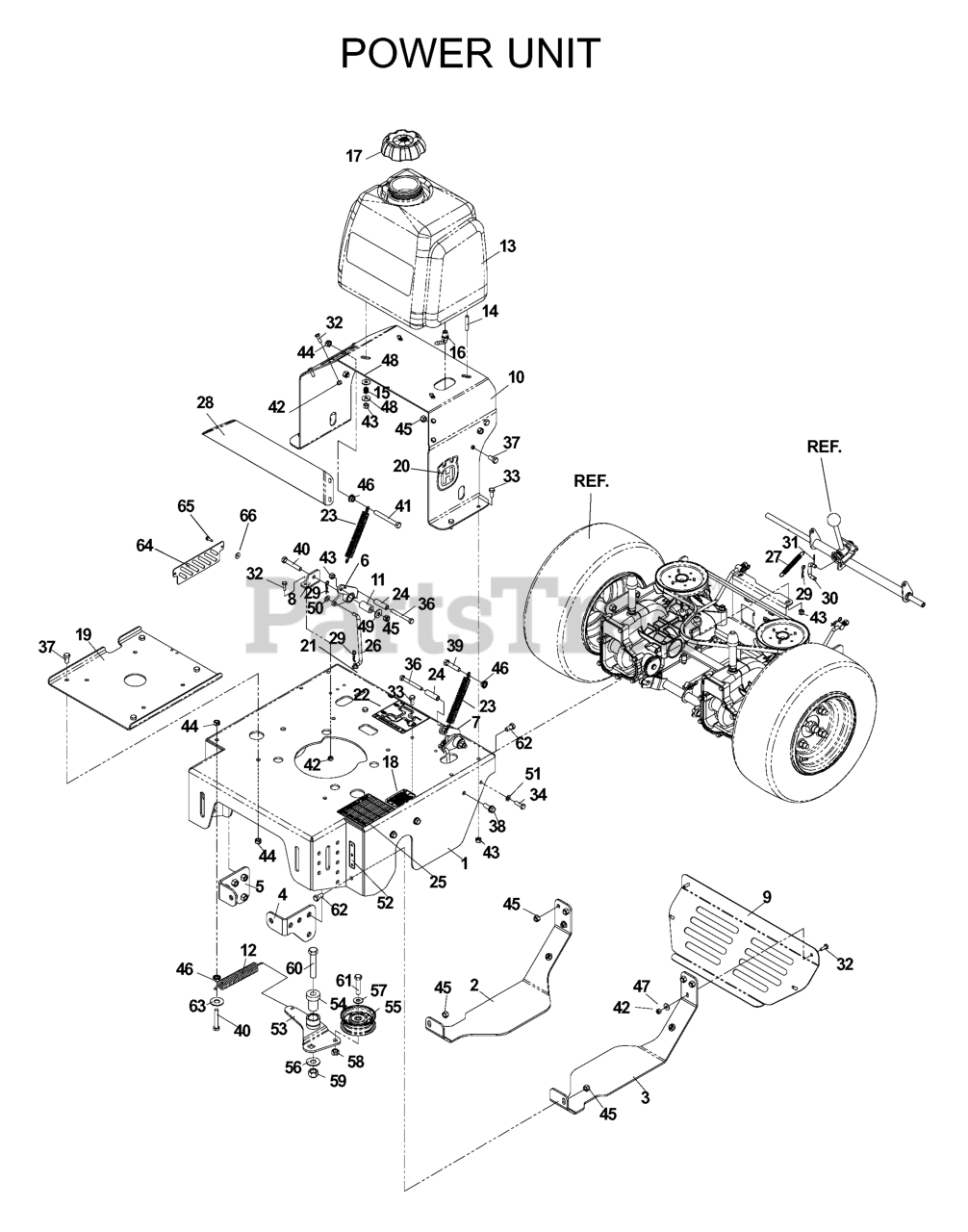

HYDRAULIC FRAME Parts Diagram

  • Title

37

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539109763

DECAL, BYPASS/BRAKE

$

$

Not available

11

Husqvarna 539101836

BUSHING, SLEEVE

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539109015

CONTROL LINKAGE

$12.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

59

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539104789

DECAL, CROWN H

$

$

Not available

62

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539110508

DECAL, POSITION

$

$

Not available

56

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539109867

Husqvarna 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

539109104

Husqvarna 539109104

LOWER HARNESS

$

$

Not available

23

Husqvarna 539916159

SPRING-TRANS

$7.49

$

In Stock, only 4 left!

0

64

Husqvarna 539111017

FAN GUARD

$18.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109033

BRAKE ENGAGE LINKAGE

$7.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109772

DECAL, HEIGHT

$

$

Not available

15

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

53

Husqvarna 539111449

IDLER ARM WELDMENT

$84.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539109039

CONTROL BRAKE

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

539976856

Husqvarna 539976856

TIE, PLASTIC

$5.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

27

Husqvarna 539977250

SPRING

$

$

Not available

33

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

50

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539109097

PANEL, ORANGE

$

$

Not available

32

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

24

Husqvarna 539109023

SPACER

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

43

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

40

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539109022

TANK SUPPORT

$133.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

61

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

18

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

21

Husqvarna 539105744

DECAL, BELT DRIVE

$6.99

$

In Stock, only 2 left!

0

36

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

60

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

2

Husqvarna 539109102

SKID PLATE, RT

$84.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539109122

BELLCRANK, LT, ETS

$47.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

1

Husqvarna 539110572

REAR DECK W/ DECALS

$

$

Not available

47

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

49

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

39

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539109101

SKID PLATE, LT

$133.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539109030

REAR GUARD

$14.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539919078

IDLER PULLEY

$37.99

$

In Stock, only 3 left!

0

4

Husqvarna 539109026

NUT PLATE, LT

$17.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

51

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

6

Husqvarna 539109135

BELLCRANK, RT, ETS

$37.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539109099

ENGINE PLATE, ORANGE

$

$

Not available

65

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539109028

NUT PLATE, RT

$17.99

$

Usually ships in 3-10 days

0
