WH 4817 (966947002) - Husqvarna 48" Walk-Behind Mower (2008-09) 48" Mower Rock Parts Diagram

48" Walk-Behind Mower

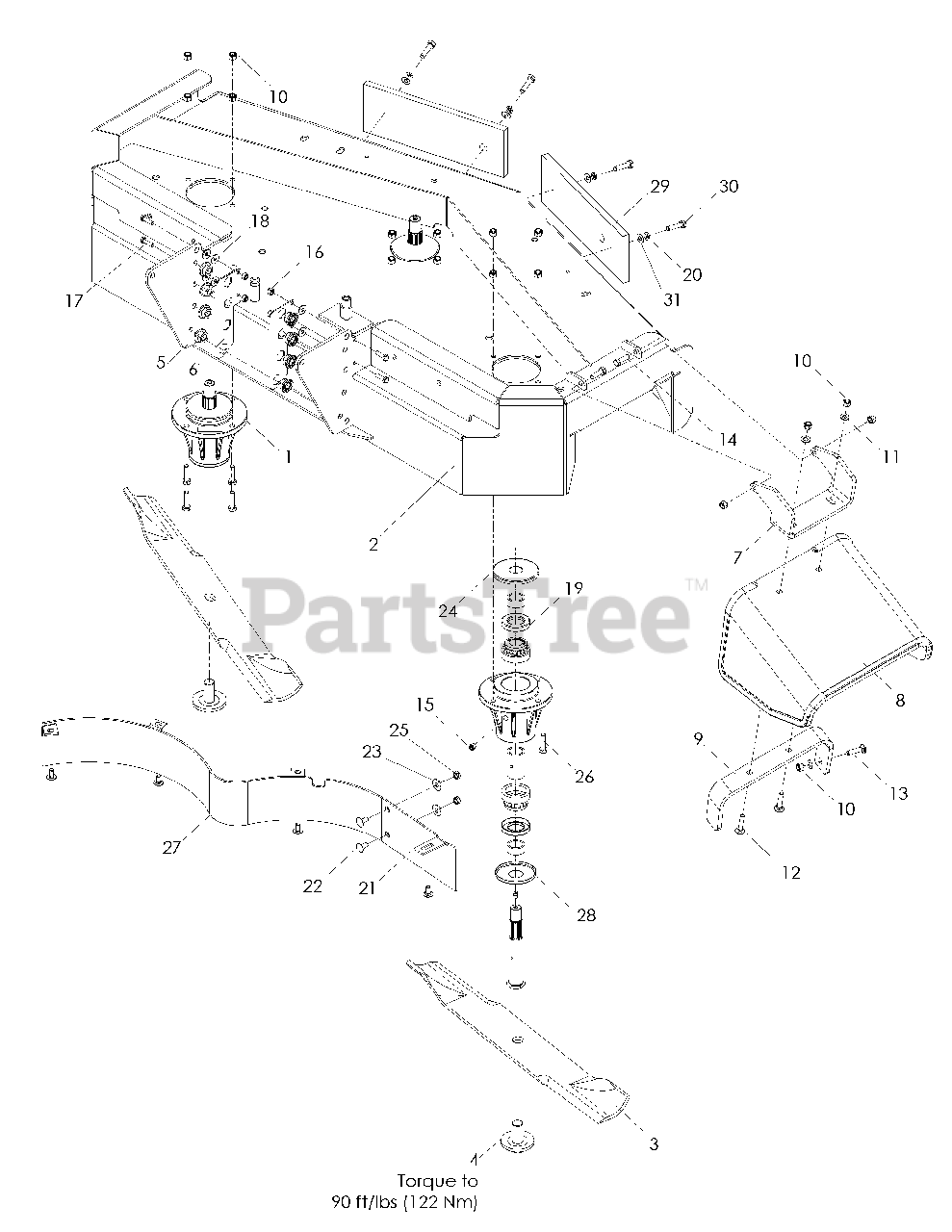

48" Mower Rock Parts Diagram

  • Title
1

Husqvarna 539131385

SPINDLE ASSEM
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

2

Husqvarna 522478301

DECK W DECALS, 48"

$

$

Not available

$26.99

$

In Stock, only 3 left!

0

4

Husqvarna 539119007

BOLT, BLADE

$10.99

$

In Stock, only 3 left!

0

5

Husqvarna 506113501

NUT, FLANGE, 1/2-13

$

$

Not available

6

Husqvarna 539132592

NUT, PLATE

$

$

Not available

7

Husqvarna 539132583

HINGE, CHUTE

$

$

Not available

8

Husqvarna 539130903

RUBBER CHUTE

$60.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539130922

REINFORCEMENT, BRKT

$

$

Not available

10

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

12

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

13

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

17

Husqvarna 539990643

HCS 1/4-20 x 7/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

19

Husqvarna 539108754

SEAL, SHAFT

$7.99

$

In Stock, Qty 7

0

20

Husqvarna 539990254

WASHER 1/2 SLW

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539105444

CENTER BAFFLE

$

$

Not available

22

Husqvarna 539990799

RHSNB 5/16-18 x 5/8
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

24

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

25

Husqvarna 539990184

NUT 5/16-18 HEX CTRLK

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

27

Husqvarna 510283202

MAIN BAFFLE

$

$

Not available

28

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

29

Husqvarna 522000502

WEIGHT, COUNTER

$

$

Not available

30

Husqvarna 539108374

HCS 1/2-13 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990250

WASHER 1/2 SAE FLAT

$1.99

$

In Stock, only 2 left!

0
