WH 3615 - Husqvarna 36" Walk-Behind Mower (2008-08) 36INCH CUTTING DECK-- UPPER Parts Diagram

36" Walk-Behind Mower

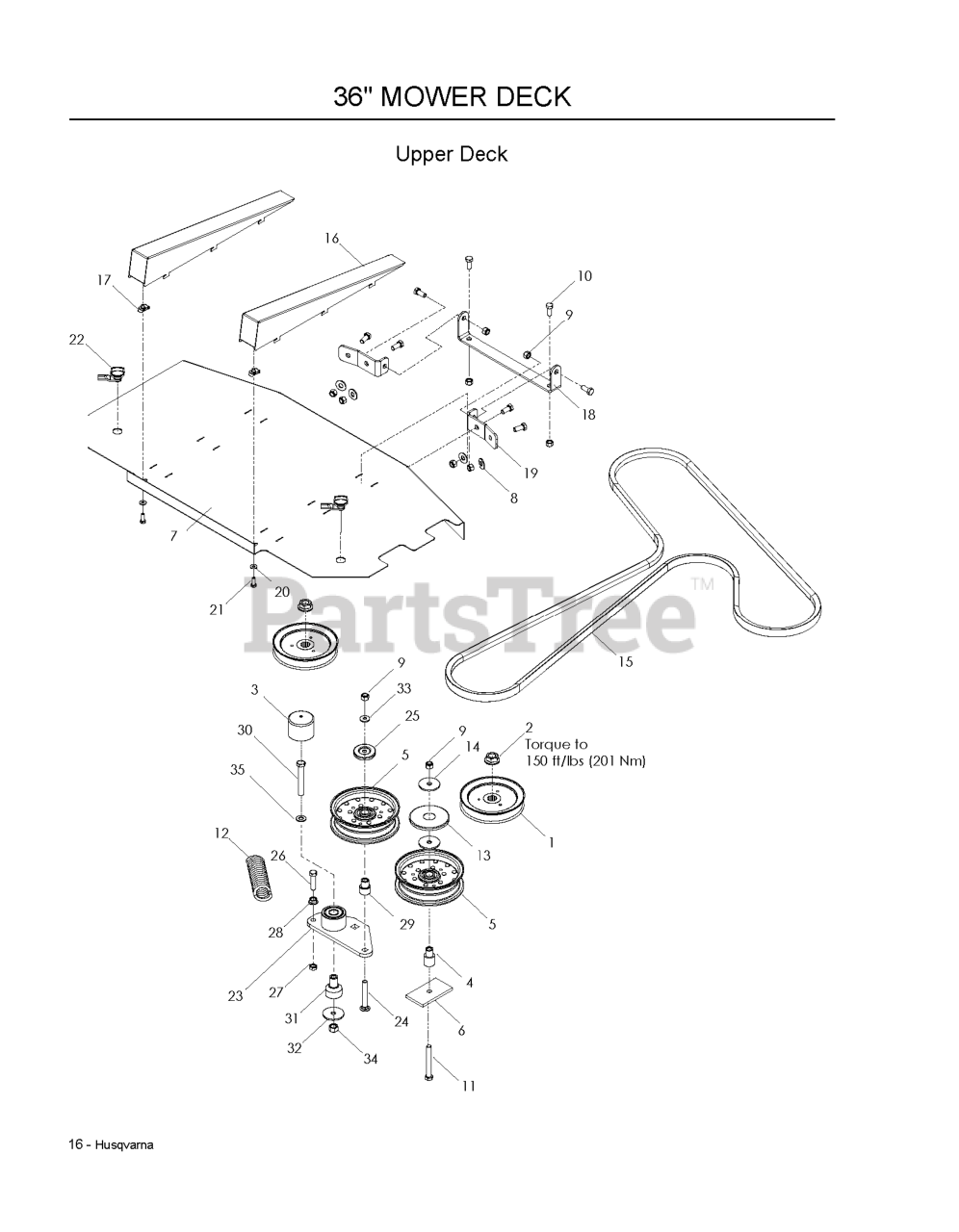

36INCH CUTTING DECK-- UPPER Parts Diagram

  • Title

16

Husqvarna 505290402

WEDGE - PAINTED

$

$

Not available

34

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

6

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

25

Husqvarna 510254501

DUST SHIELD

$

$

Not available

1

Husqvarna 522023801

PULLEY - 6.57

$

$

Not available

3

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

9

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539110655

SPRING

$14.99

$

Usually ships in 3-10 days

0

22

Husqvarna 510126701

LATCH, SHORT WING

$

$

Not available

29

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 5

0

17

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 539132581

HINGE, BIN

$

$

Not available

15

Husqvarna 505247401

BELT - DECK 36 (103 L)

$113.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539132579

BASE HINGE - PAINTED

$

$

Not available

2

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

8

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

35

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

21

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539108507

HCS 3/8-16 X 7/8 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

11

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 11

0

4

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

5

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

13

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

20

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

24

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

28

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 505290102

COVER - BELT, 36 PAINTED

$

$

Not available
