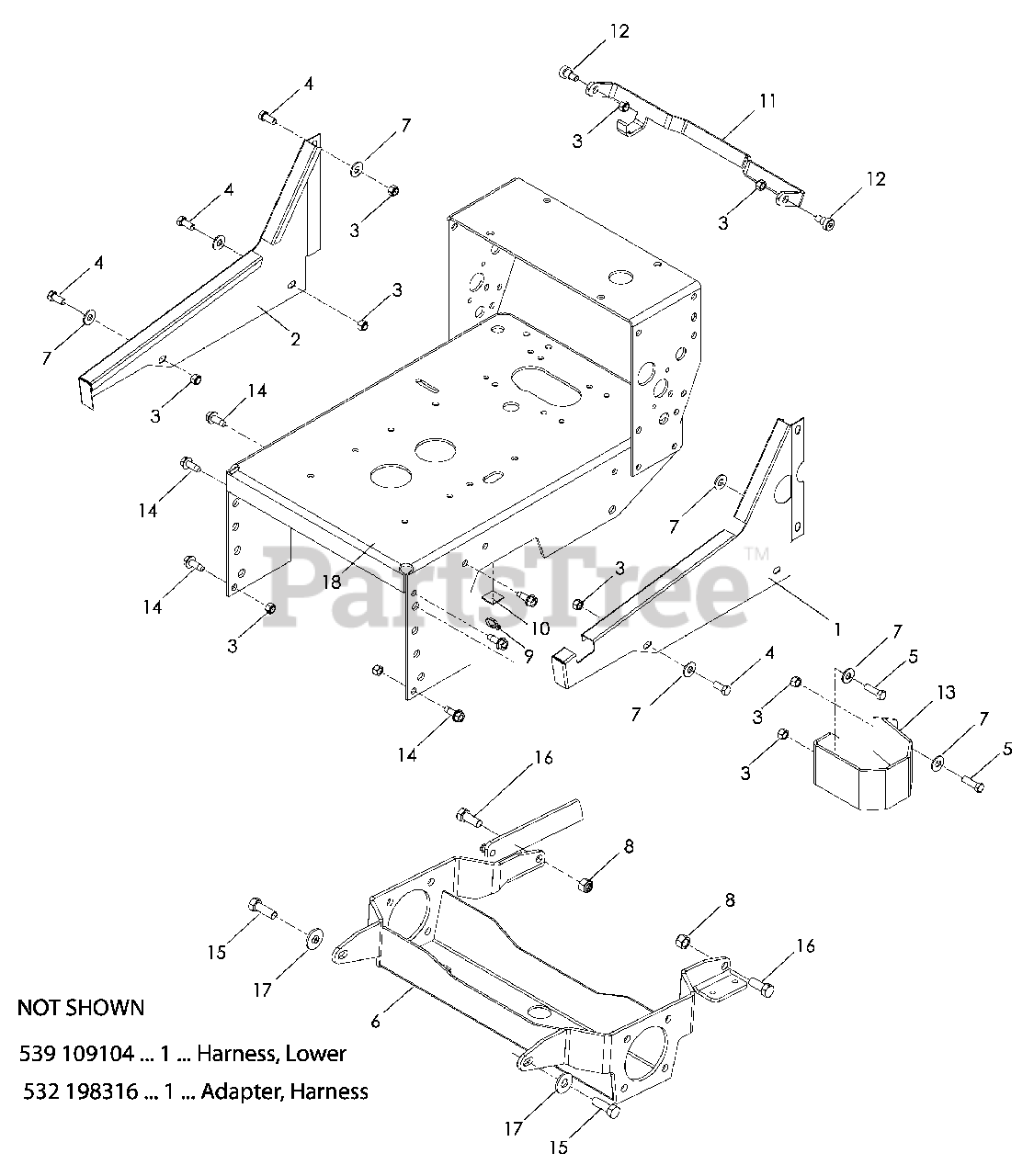

WH 3615 (966947001) - Husqvarna 36" Walk-Behind Mower (2008-10) Frame Parts Diagram

36" Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Husqvarna 539132558

PANEL, SIDE, RH

$

$

Not available

2

Husqvarna 539132560

PANEL, SIDE, LH

$

$

Not available

3

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 539108507

Hcs3/8-16 x 7/8

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132509

AXLE, HYDRO

$

$

Not available

7

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539101331

NUT ½ HEX NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539976856

WIRE TIE

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110863

MOUNTING BLOCK

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132556

BAR, THROW OUT

$

$

Not available

12

Husqvarna 539113621

SB 3/8-16 x 3/8 SKT HD
(Superseded to 596241101)

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 505189002

GUARD, FILTER

$

$

Not available

14

Husqvarna 539107476

BOLT 3/8-16 x 1 THD FRM

$6.49

$

In Stock, only 1 left!

0

15

Husqvarna 539108374

HCS ½-13 x 1½

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539108369

HCS ½-13 x 1¼

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

18

Husqvarna 522478001

ENGINE DECK W/DECAL

$

$

Not available

Husqvarna 539109104

HARNESS, LOWER

Note: NOT SHOWN

$

$

Not available

Husqvarna 532198316

ADAPTER, HARNESS

Note: NOT SHOWN

$10.99

$

In Stock, only 1 left!

0
