WH 25 CS (41ADW25C990) - White Outdoor String Trimmer Engine Assembly Parts Diagram

String Trimmer

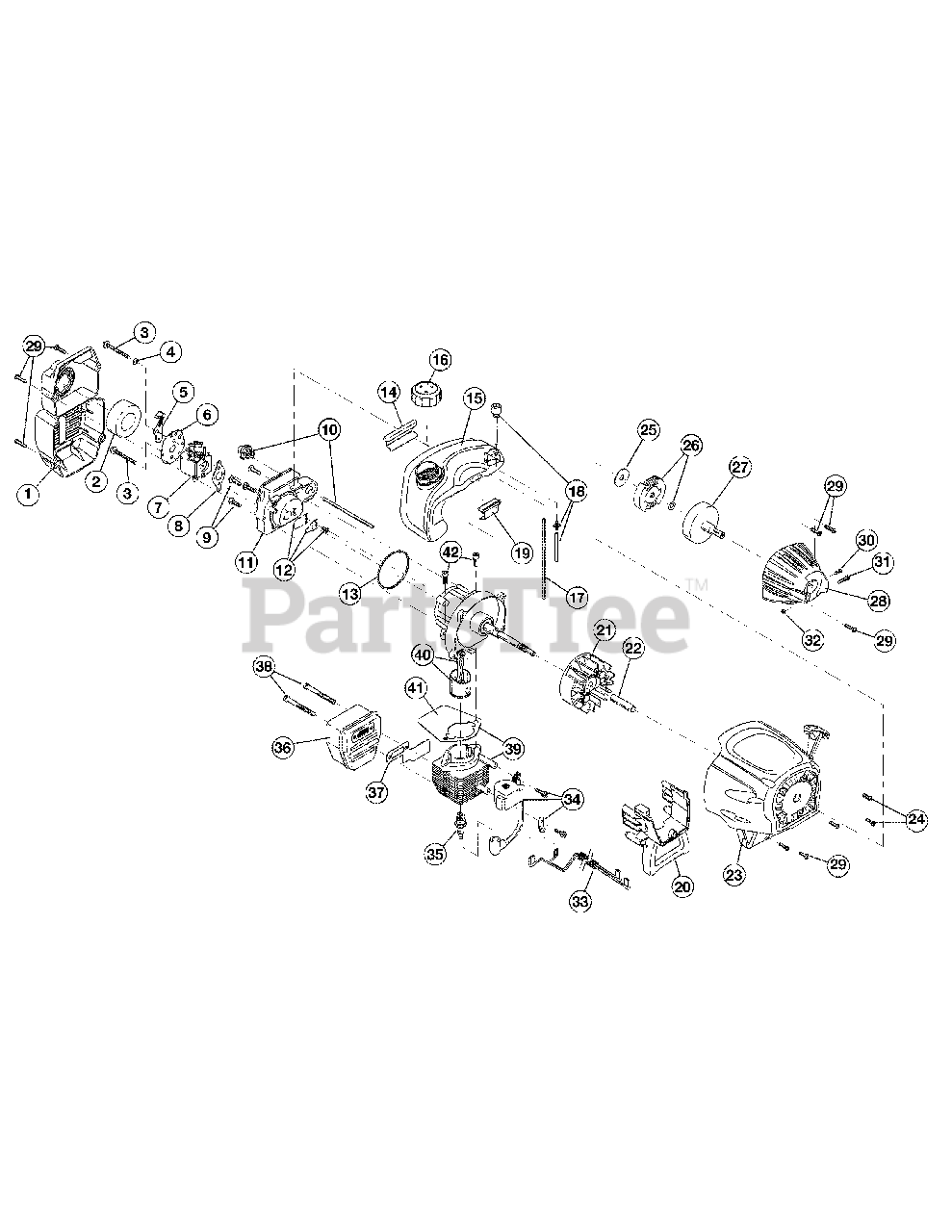

Engine Assembly Parts Diagram

  • Title

1

White Outdoor 753-04511

Air Cleaner Cover Assembly

Note: (includes 2 & 29)

$38.99

$

Usually ships in 3-6 days

0

2

White Outdoor 791-180350B

Air Cleaner Filter

$9.99

$

In Stock, only 1 left!

0

3

White Outdoor 791-180351

Carburetor Mounting Screw Assembly

$

$

Not available

4

White Outdoor 791-180226

Wavey Washer
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

5

White Outdoor 753-04418

Choke Lever Assembly

$

$

Not available

6

White Outdoor 753-04419

Choke Plate Assembly

Note: (includes 5)

$

$

Not available

7

White Outdoor 753-05133

Carburetor Assembly

Note: (includes 8 & 18)

$81.99

$

Usually ships in 3-6 days

0

8

White Outdoor 791-610675

Carburetor Gasket

$4.49

$

In Stock, Qty 18

0

9

White Outdoor 791-181860

Carb Mount Screw

$

$

Not available

10

White Outdoor 791-683974B

Primer & Hose Assembly

$22.99

$

In Stock, Qty 17

0

11

White Outdoor 753-1196

Carb Mount Assembly

Note: (includes 9, 12 & 13)

$

$

Not available

12

White Outdoor 791-684451

Reed Assembly

$

$

Not available

13

White Outdoor 753-05487

Carburetor O-Ring
(Superseded to 721-04163)

$3.99

$

In Stock, Qty 6

0

14

White Outdoor 791-612134

Rear Mounting Pad

$

$

Not available

15

White Outdoor 753-04307

Fuel Tank Assembly

Note: (includes 16-18)

$

$

Not available

16

White Outdoor 791-182529

Fuel Cap Assembly

$21.99

$

In Stock, only 3 left!

0

17

White Outdoor 791-181086

Fuel Return Line

$7.49

$

In Stock, Qty 19

0

18

White Outdoor 753-04233

Fuel Line Assembly

$19.99

$

In Stock, Qty 12

0

19

White Outdoor 791-145308

Front Mounting Pad

$

$

Not available

20

White Outdoor 753-05091

Shroud Extension & Stand

Note: (includes 29)

$19.99

$

Usually ships in 3-6 days

0

21

White Outdoor 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

22

White Outdoor 791-181525

Spacer

$22.99

$

Usually ships in 3-6 days

0

23

White Outdoor 753-05801

Starter Housing Assembly

Note: (includes 24 & 29)

$

$

Not available

24

White Outdoor 791-181862

Housing Screw
(Superseded to 1964)

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

26

White Outdoor 791-182369

Clutch Rotor Assembly
(Superseded to 753-05860)

$25.99

$

In Stock, Qty 6

0

27

White Outdoor 791-153592

Clutch Drum Assembly

$51.99

$

In Stock, Qty 12

0

28

White Outdoor 753-04403

Clutch Cover Assembly

Note: (includes 29-32)

$

$

Not available

29

White Outdoor 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

31

White Outdoor 753-04003

Clamping Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

32

White Outdoor 791-180217

Clamping Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 753-05025

Wire Leads and Sleeve

$13.99

$

Usually ships in 3-6 days

0

34

White Outdoor 753-04336

Module Assembly

$107.99

$

Usually ships in 3-6 days

0

35

White Outdoor 791-610311B

Spark Plug

$14.99

$

In Stock, only 2 left!

0

36

White Outdoor 753-05169

Muffler Assembly

Note: (includes 37, 38 & Spark Arrestor)

$112.99

$

Usually ships in 3-6 days

0

37

White Outdoor 753-04619

Exhaust Gasket

$9.49

$

In Stock, only 3 left!

0

38

White Outdoor 753-04620

Muffler Mounting Bolts
(Superseded to 710-04188A)

$4.49

$

Usually ships in 3-6 days

0

39

White Outdoor 753-04814

Cylinder Assembly

Note: (includes 41 & 42)

$83.99

$

In Stock, only 1 left!

0

40

White Outdoor 753-04367

Piston and Rod Assembly

$

$

Not available

41

White Outdoor 753-04182

Cylinder Gasket

$16.99

$

Usually ships in 3-6 days

0

42

White Outdoor 791-182723

Cylinder Bolt

$4.49

$

In Stock, Qty 13

0

White Outdoor 753-1209

Piston Ring Set

Note: Not shown

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 753-04812

Short Block Assembly

Note: (includes Crankcase, 9, 35 & 39-42) Not shown

$208.99

$

Usually ships in 3-6 days

0

White Outdoor 791-181599

Clutch Springs

Note: Not shown

$11.99

$

Usually ships in 3-6 days

0
