WGP 3616 (966638501) - Husqvarna 36" Walk-Behind Mower (2010-10) MOWER DECK / CUTTING DECK Parts Diagram

36" Walk-Behind Mower

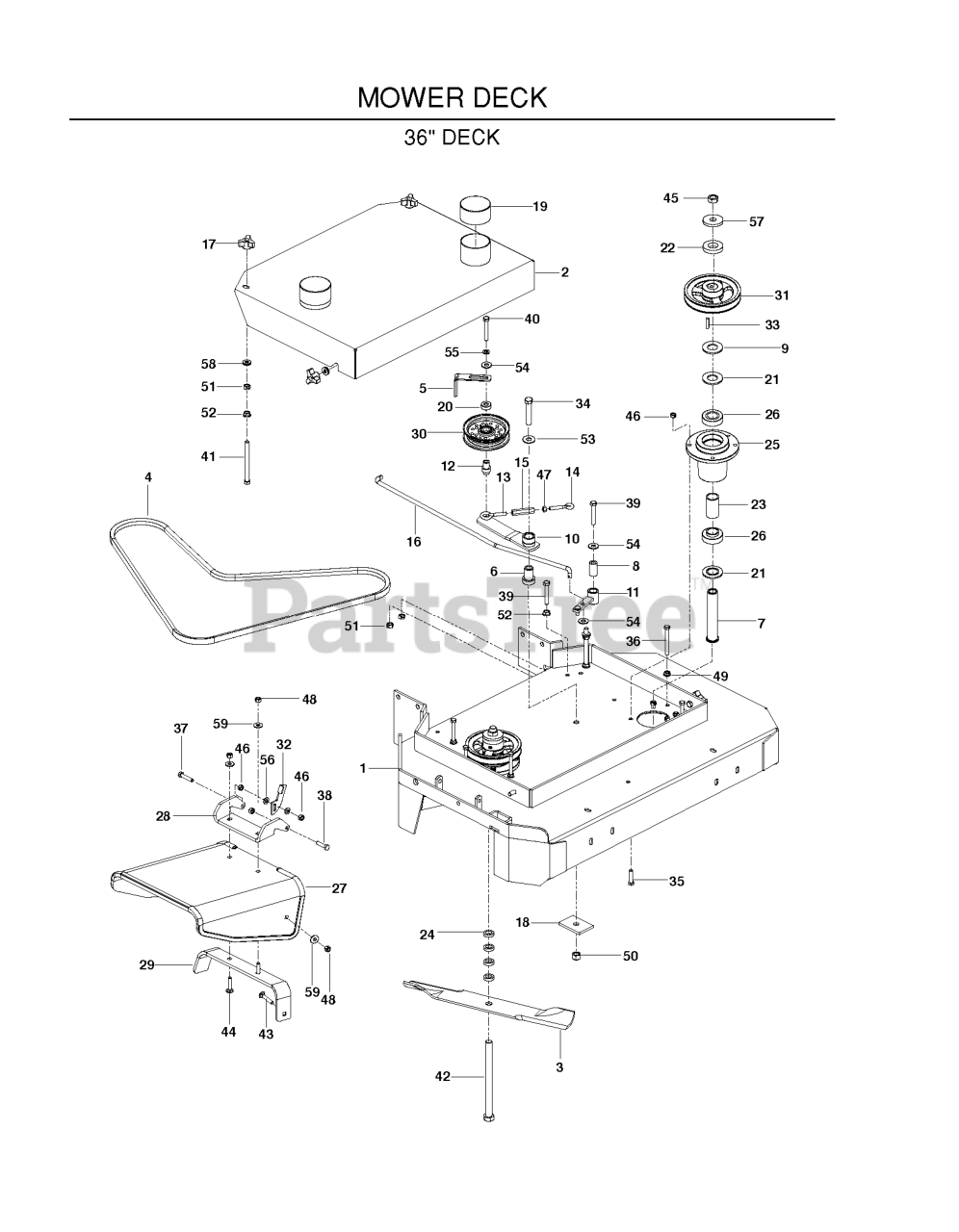

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

10

Husqvarna 539101978

ARM WELDMENT

$103.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102656

SPACER

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

2

Husqvarna 539104561

BELT SHIELD ORANGE 36"

$242.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539102334

TAPBOLT 3/8C X 4 1/2

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

25

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

38

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, Qty 9

0

1

Husqvarna 539104563

DECK W/DECALS 36"

$

$

Not available

56

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

46

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539101980

EYEBOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539102048

BLADE ROD 36"

$

$

Not available

27

Husqvarna 539130903

CHUTE, RUBBER DISCHARGE WB

$60.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

17

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0

11

Husqvarna 539101979

ENGAGEMENT ARM

$62.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539107272

COMBO SPACER

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102320

TUBE CAP

$7.99

$

In Stock, Qty 9

0

32

Husqvarna 522545501

STOP, CHUTE - BLACK

$

$

Not available

42

Husqvarna 539102332

HCS 5/8F X 8 1/2

$

$

Not available

26

Husqvarna 539115279

BEARING-ECC LOCK W/COLLAR

$37.99

$

In Stock, Qty 20+

0

5

Husqvarna 539100075

SNUBBER

$37.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102245

SPACER

$

$

Not available

18

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539101959

BELT, DECK, 36"

$68.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

31

Husqvarna 539976398

PULLEY W/SETSCREWS

$60.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539102676

SPACER

$13.99

$

In Stock, Qty 5

0

44

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

52

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539101836

BUSHING, SLEEVE

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539976980

NUT 5/8F HEX

$3.99

$

In Stock, only 3 left!

0

36

Husqvarna 539990553

HCS 5/16 X 3

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$10.99

$

In Stock, only 3 left!

0

7

Husqvarna 539102674

SPINDLE SHAFT

$

$

Not available

28

Husqvarna 539130916

PIVOT BRACKET - CHUTE

$36.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539102056

WASHER, 3/8 SEALING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

59

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD

$

$

Not available

35

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

29

Husqvarna 539130922

BRKT, REINF-CHUTE WB

$

$

Not available

34

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

13

Husqvarna 539101981

EYEBOLT, LH

$13.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539100341

BLADE OEM 18"

$

$

Not available
