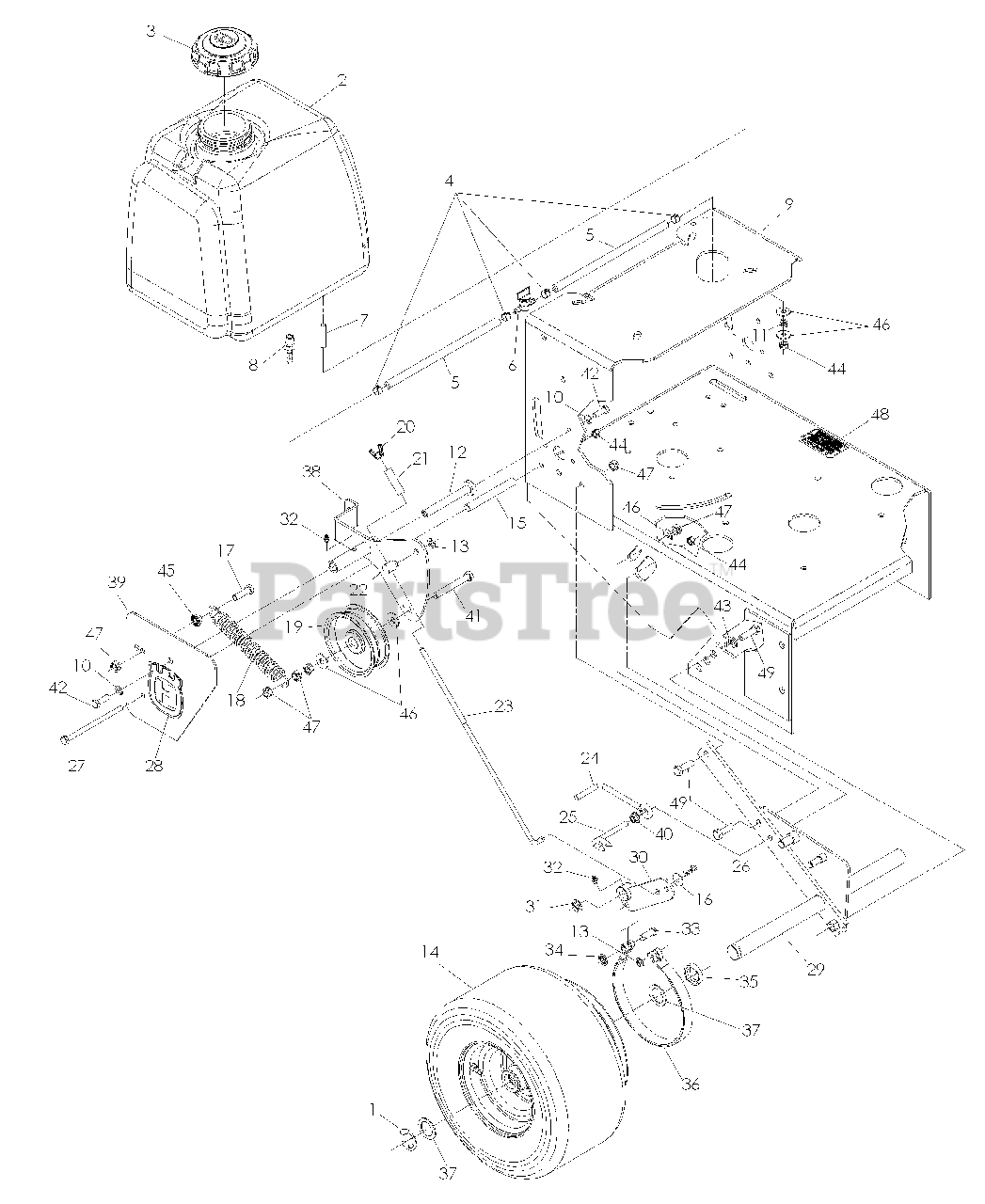

WG 4815 E (968999120) - Husqvarna 48" Walk-Behind Mower (2006-02) Drive Parts Diagram

48" Walk-Behind Mower

Drive Parts Diagram

  • Title

1

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106188

GAS CAP
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

4

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

5

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

6

Husqvarna 539916325

FUEL VALVE

$47.99

$

In Stock, only 1 left!

0

7

Husqvarna 539102502

STUD 5/16

$10.99

$

In Stock, only 4 left!

0

8

Husqvarna 539102650

HOSE BARB

$

$

Not available

9

Husqvarna 539106554

REAR DECK W/DECALS

$

$

Not available

10

Husqvarna 539990187

LOCKWASHER 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

11

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

12

Husqvarna 539102188

SHOULDER PIVOT TUBE

$19.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990870

RING, RETAINER

$6.49

$

In Stock, only 1 left!

0

14

Husqvarna 539104757

WHEEL ASSEMBLY W/DRUM, & PULLEYS

$400.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101992

LONG SPACER

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539976941

HCS 3/8 -16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

19

Husqvarna 539101955

IDLER PULLEY

$36.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539100276

WINGNUT 5/16 NYLOC

$

$

Not available

21

Husqvarna 539100097

SPACER

$7.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539101940

SWIVEL

$

$

Not available

23

Husqvarna 539101939

BRAKE ROD

$

$

Not available

24

Husqvarna 539101973

BELT GUIDE

$13.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539102035

SCRAPER

$31.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990145

HCS 5/16 -18 x 5

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539111054

DECAL, CROWN

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539101931

AXLE WELDMENT

$398.99

$

In Stock, only 1 left!

0

30

Husqvarna 539101934

BRAKE ARM, RT

$

$

Not available

31

Husqvarna 539101949

E-RING 1/2"

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

33

Husqvarna 539102049

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539913847

BOLT RET. 3/8

$4.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101945

BRAKE BAND

$44.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539916561

BUSHING

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106032

IDLER ARM, RT

$91.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106031

IDLER ARM, LT

$339.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101969

FENDER

$72.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990585

HFLN 5/16 -18

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101350

TAP BOLT 3/8-16 x 3

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990118

LOCK WASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 19

0

44

Husqvarna 539990184

NUT 5/16 -18 LOCK

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539990613

HFLN 3/8-16

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990546

NUT 3/8-16 LOCK

$

$

Not available

48

Husqvarna 539101881

DECAL, PROP 65
(Superseded to 596024201)

$2.49

$

In Stock, only 4 left!

0

49

Husqvarna 539990563

HCS 3/8 -16 x 1

$1.99

$

Usually ships in 3-10 days
