WG 4815 E (968999120) - Husqvarna 48" Walk-Behind Mower (2006-02) 48 Inch Cutting Deck Parts Diagram

48" Walk-Behind Mower

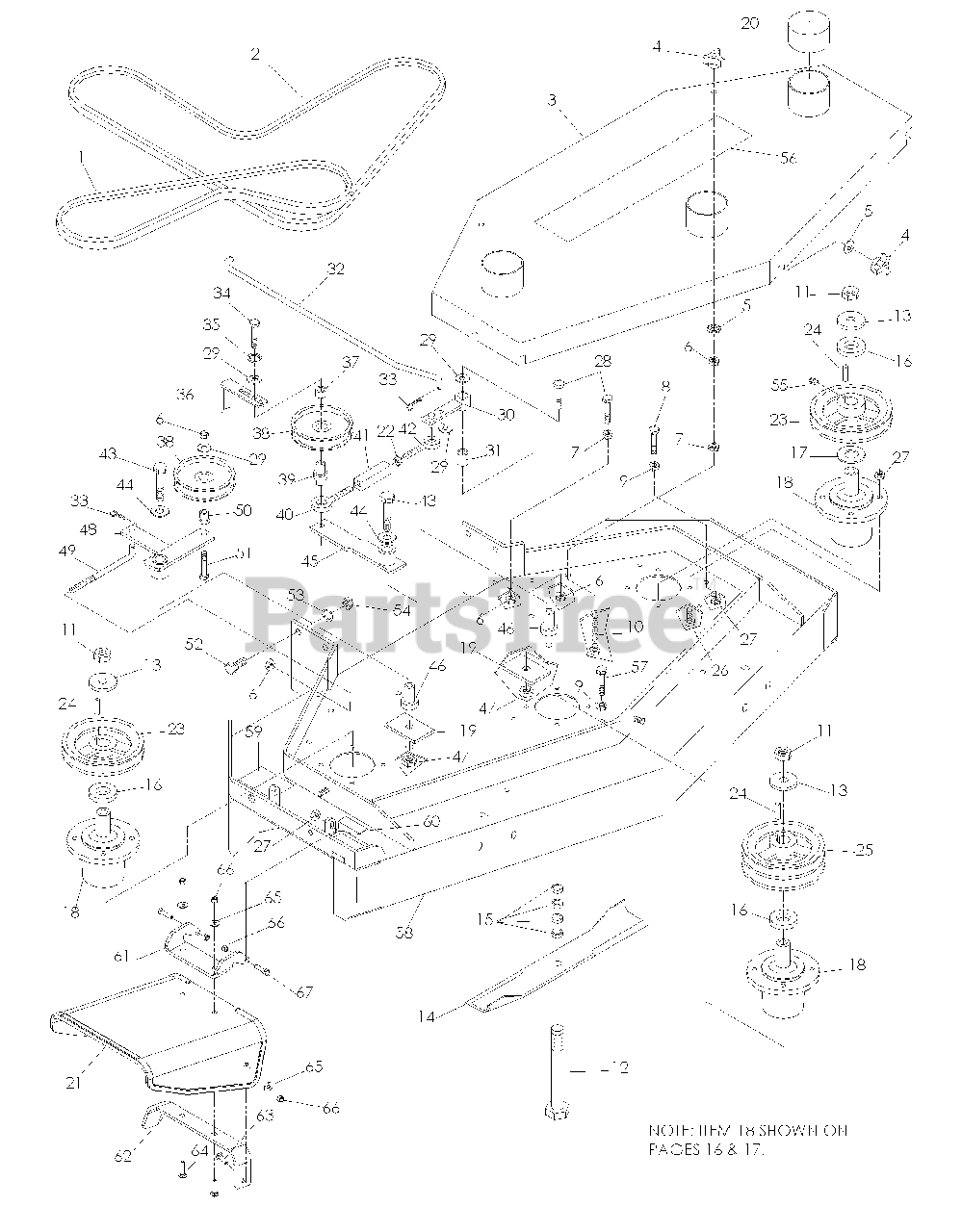

48 Inch Cutting Deck Parts Diagram

  • Title

1

Husqvarna 539100024

BLADE BELT

$60.99

$

In Stock, only 1 left!

0

2

Husqvarna 539101958

BLADE BELT 48"

$121.99

$

In Stock, only 1 left!

0

3

Husqvarna 539104562

BELT SHIELD 48"

$364.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 539102056

WASHER 3/8 SEALING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990546

HLN 3/8-16

$

$

Not available

7

Husqvarna 539990613

HFLN 3/8 -16

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539990553

HCS 5/16-18 x 3

$5.99

$

In Stock, Qty 20+

0

9

Husqvarna 539990585

HFLN 5/16-18

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539102334

TAPBOLT, 3/8 -16 x 4 1/2

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539976980

HN 5/8-18

$3.99

$

In Stock, only 3 left!

0

12

Husqvarna 539102332

HCS 5/8-18 x 8 1/2

$

$

Not available

Husqvarna 539101100

HCS 5/8-18 x 9

$20.99

$

In Stock, only 1 left!

0

13

Husqvarna 539106504

SUPPORT WASHER

$

$

Not available

14

Husqvarna 539100340

BLADE 16 1/4"

$26.99

$

In Stock, Qty 20+

0

15

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

16

Husqvarna 539102245

SPACER

$

$

Not available

17

Husqvarna 539102675

BUSHING 10 GA.

$10.99

$

In Stock, Qty 20+

0

18

Husqvarna 539102440

HOUSING, CUTTER
(Superseded to 539107418)

$

$

Not available

19

Husqvarna 539102236

PAD

$27.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539102320

TUBE CAP

$7.99

$

In Stock, Qty 9

0

21

Husqvarna 539130903

DEFLECTOR CHUTE

$60.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990196

NUT 1/16-18

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539976398

PULLEY W/SETSCREWS

$60.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539101995

KEY 1/4 SQ x 1 1/8

$

$

Not available

25

Husqvarna 539101819

DOUBLE PULLEY

$148.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990184

HLN 5/16-18

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101979

ENGAGEMENT ARM

$62.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539102031

BLADE ROD 48"

$

$

Not available

33

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990637

HCS 3/8 -16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990118

LOCKWASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 11

0

36

Husqvarna 539100075

SNUBBER

$37.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102656

SPACER

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

39

Husqvarna 539101980

EYEBOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539101981

EYEBOLT LH

$13.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101982

EYEBOLT RH

$43.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539101332

HCS 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 539990550

WASHER 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539101978

ARM WLDMT

$103.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539101331

NUT 1/2-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

48

Husqvarna 539102237

AUX. IDLER ARM

$96.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539102337

TENSION ROD

$13.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

51

Husqvarna 539990730

HCS 3/8 -16 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539101175

HCS 7/16-14 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

54

Husqvarna 539990449

NUT 7/16-14

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539976956

SETSCREW 5/16 NYLOC

$

$

Not available

56

Husqvarna 539104790

DECAL, HUSQVARNA

$

$

Not available

57

Husqvarna 539102335

HCS 5/16-18 x 4

$3.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539104564

48" DECK W/DECALS

$

$

Not available

59

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

60

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

61

Husqvarna 539130916

PIVOT BRACKET

$36.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539130922

BRACKET REINF

$

$

Not available

63

Husqvarna 539100472

RHSNB 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

64

Husqvarna 539102933

RHSNB 5/16-18 x 1 1/2

$

$

Not available

65

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

66

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

67

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

67

Husqvarna 539106599

DECAL, ETS

Note: NOT SHOWN

$

$

Not available
