WG 3613 E (968999365) - Husqvarna 36" Walk-Behind Mower (2006-02) TRANSMISSION Parts Diagram

36" Walk-Behind Mower

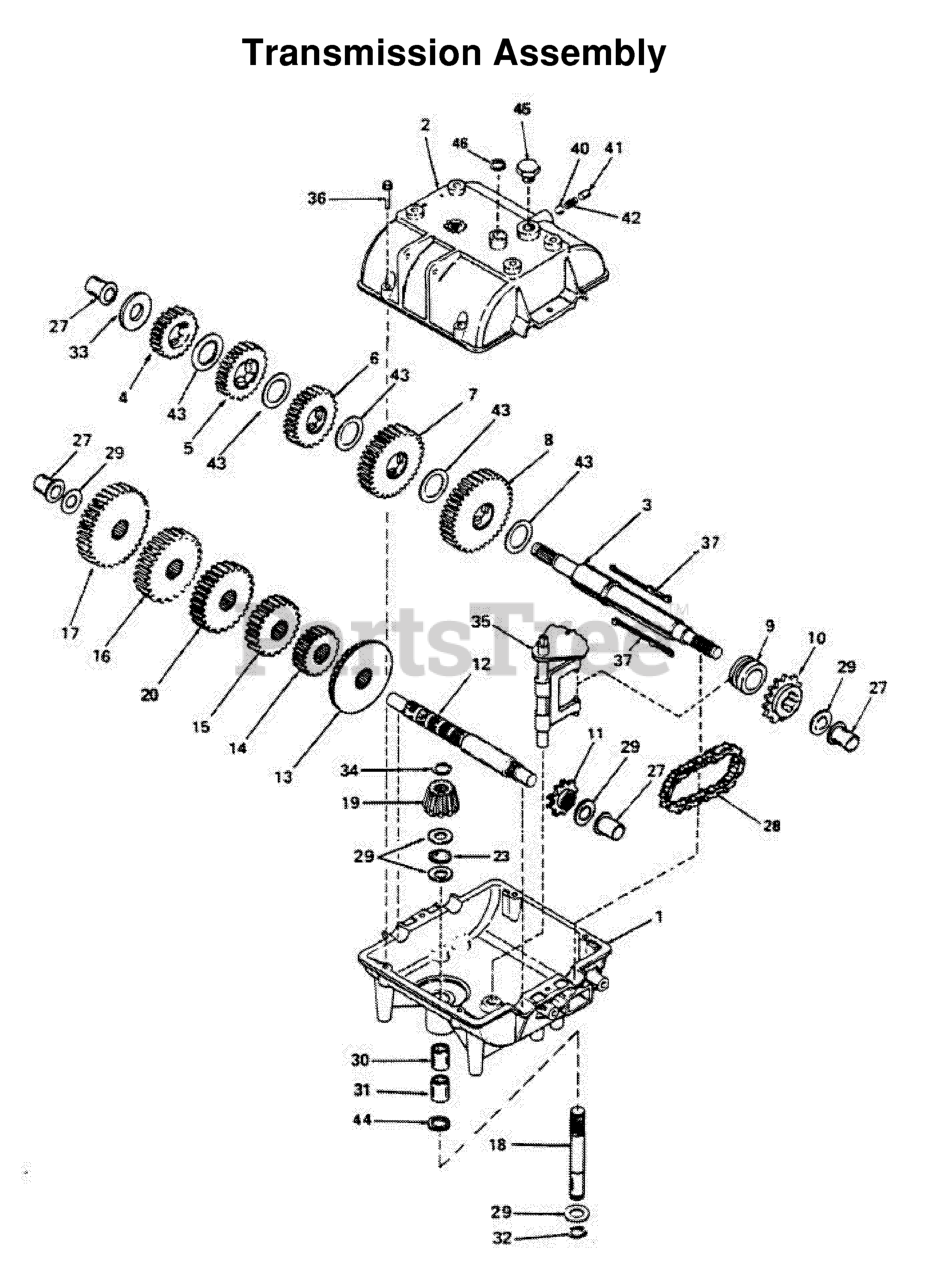

TRANSMISSION Parts Diagram

  • Title
23

Husqvarna 539100374

THRUST BEARING

$

$

Not available

9

Husqvarna 539977561

SHIFT COLLAR

$

$

Not available

41

Husqvarna 539977584

SET SCREW 3/8-16 X 3/8"

$

$

Not available

35

Husqvarna 539102180

SHIFT ROD & FORK

$

$

Not available

8

Husqvarna 539102079

SPUR GEAR (37 TEETH)

$

$

Not available

18

Husqvarna 539977571

INPUT SHAFT

$60.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539977574

CHAIN, ROLLER #41 24 LINK

$

$

Not available

$

$

Not available

13

Husqvarna 539977565

GEAR, BEVEL (42 TEETH)

$

$

Not available

47

Husqvarna 539102162

TRANSMISSION WB

$

$

Not available

2

Husqvarna 539100371

TRANSMISSION COVER

$

$

Not available

$

$

Not available

36

Husqvarna 539977581

W-FLANGED HEX HD THREADFOR

$

$

Not available

16

Husqvarna 539100382

SPUR GEAR (20 TEETH)

$

$

Not available

34

Husqvarna 539977579

RETAINING RING

$2.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102179

OUTPUT & BRAKE SHAFT

$

$

Not available

27

Husqvarna 539977573

BUSHING, FLANGED

$14.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539102080

SPUR GEAR (12 TEETH)

$

$

Not available

19

Husqvarna 539100372

INPUT BEVEL PINION

$50.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539977563

SPROCKET (9 TEETH)

$30.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539100377

SPUR GEAR (30 TEETH)

$

$

Not available

4

Husqvarna 539102077

SPUR GEAR (27 TEETH)

$

$

Not available

30

Husqvarna 539977592

NEEDLE BEARING

$84.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539102084

WASHER, THRUST

$

$

Not available

46

Husqvarna 539100388

SEAL, SQUARE CUT

$

$

Not available

7

Husqvarna 539100376

SPUR GEAR (35 TEETH)

$

$

Not available

29

Husqvarna 539977575

THRUST WASHER

$2.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102078

SPUR GEAR (32 TEETH)

$

$

Not available

20

Husqvarna 539102083

SPUR GEAR (18 TEETH)

$

$

Not available

31

Husqvarna 539977576

NEEDLE BEARING

$91.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539102075

TRANSMISSION CASE

$

$

Not available

40

Husqvarna 539977583

STEEL BALL 5/16"

$

$

Not available

43

Husqvarna 539977586

WASHER THRUST

$

$

Not available

15

Husqvarna 539102081

SPUR GEAR (15 TEETH)

$

$

Not available

$

$

Not available

12

Husqvarna 539977564

COUNTERSHAFT

$

$

Not available

32

Husqvarna 539977577

RETAINING RING

$

$

Not available

45

Husqvarna 539100148

SWITCH, TRANS

$39.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539977562

SPROCKET (18 TEETH)

$

$

Not available

17

Husqvarna 539102082

SPUR GEAR (23 TEETH)

$

$

Not available
