WG 3613 E (968999365) - Husqvarna 36" Walk-Behind Mower (2006-02) DRIVE Parts Diagram

36" Walk-Behind Mower

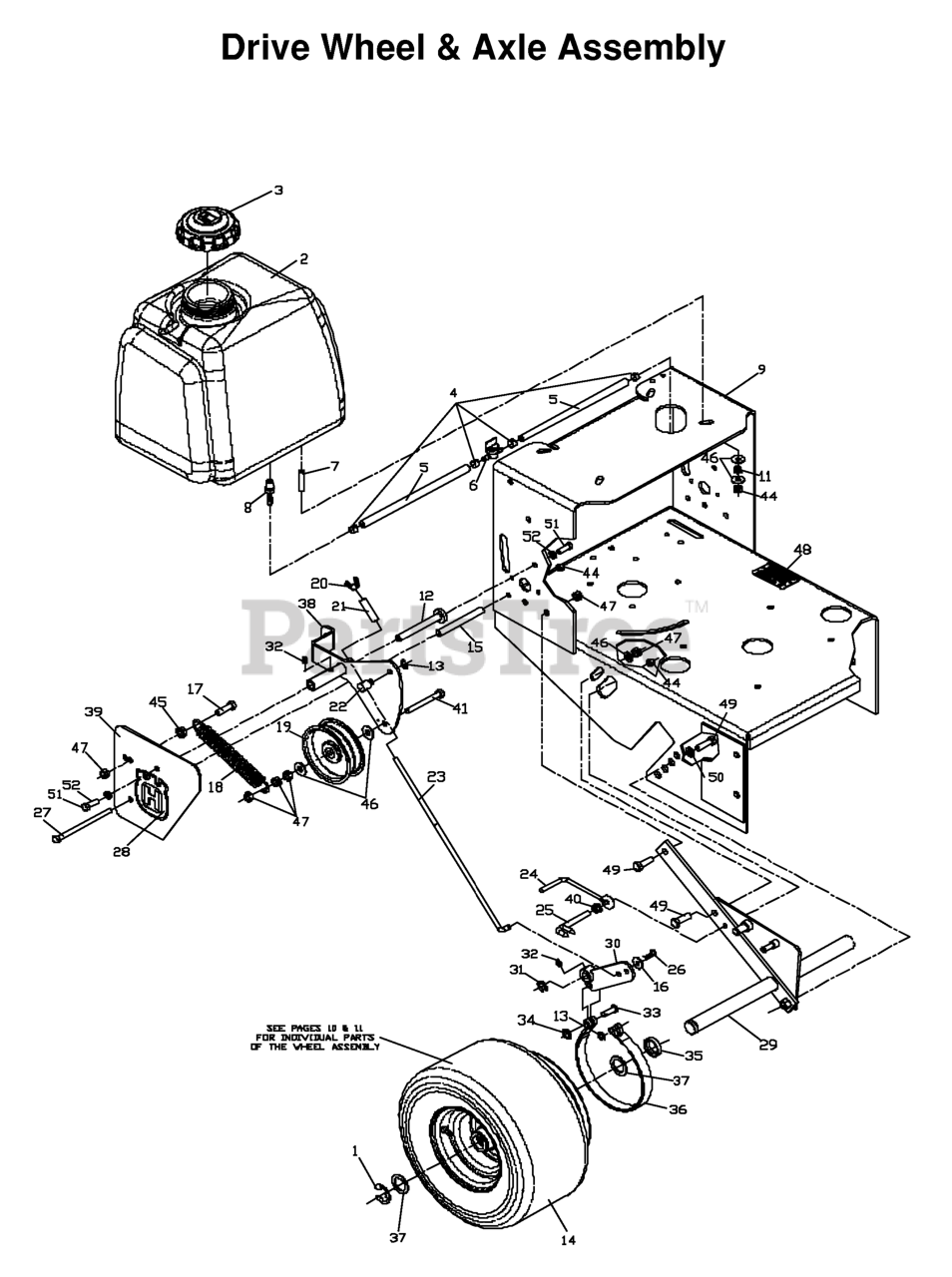

DRIVE Parts Diagram

  • Title

10

Husqvarna 539111057

DECAL, W3613

$

$

Not available

9

Husqvarna 539106554

REAR DECK W/DECALS

$

$

Not available

3

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539102035

SCRAPER (36 & 48)

$31.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101992

SPACER, LONG

$5.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539100097

SPACER

$7.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539990145

HCS 5/16C X 5

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539104757

WHEEL PARTS KIT

$400.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102188

SHOULDER PIVOT TUBE

$19.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539111066

Husqvarna 539111066

DECAL W4815

$

$

Not available

34

Husqvarna 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539106032

IDLER ARM - RH

$91.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

1

Husqvarna 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

In Stock, only 2 left!

0

52

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

19

Husqvarna 539101955

PULLEY, IDLER

$36.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539932956

GAS LINE 10"

$

$

Not available

28

Husqvarna 539111054

DECAL, CRN H 3-1/8 SILVER

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

2

Husqvarna 539105630

FUEL TANK

$207.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

4

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

39

Husqvarna 539101969

FENDER

$72.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539100276

WINGNUT, 5/16C NYLOC

$

$

Not available

539106031

Husqvarna 539106031

IDLER ARM LH

$339.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101934

BRAKE ARM, RIGHT

$

$

Not available

45

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539101881

DECAL, PROP. 65
(Superseded to 596024201)

$2.49

$

In Stock, Qty 5

0

43

Husqvarna 539977761

HCS 1/4C X 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539101940

SWIVEL

$

$

Not available

26

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539921960

SPACER

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

46

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539101350

TAPBOLT, 3/8C X 3

$6.49

$

In Stock, only 2 left!

0

44

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539101939

BRAKE ROD

$

$

Not available

18

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 10

0

7

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

6

Husqvarna 539916325

FUEL VALVE

$47.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539101945

BRAKE BAND

$44.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101939

BRAKE ROD

$

$

Not available

24

Husqvarna 539101973

BELT GUIDE

$13.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

17

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 539990118

SLW 3/8 STD
(Superseded to 596238701)

$4.99

$

In Stock, Qty 20+

0

31

Husqvarna 539101949

E-RING 1/2 (2 2)

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539102049

CLEVIS PIN

$3.99

$

Usually ships in 3-10 days

0
