WG 3613 E (968999117) - Husqvarna 36" Walk-Behind Mower (2006-02) 36 Inch Cutting Deck Parts Diagram

36" Walk-Behind Mower

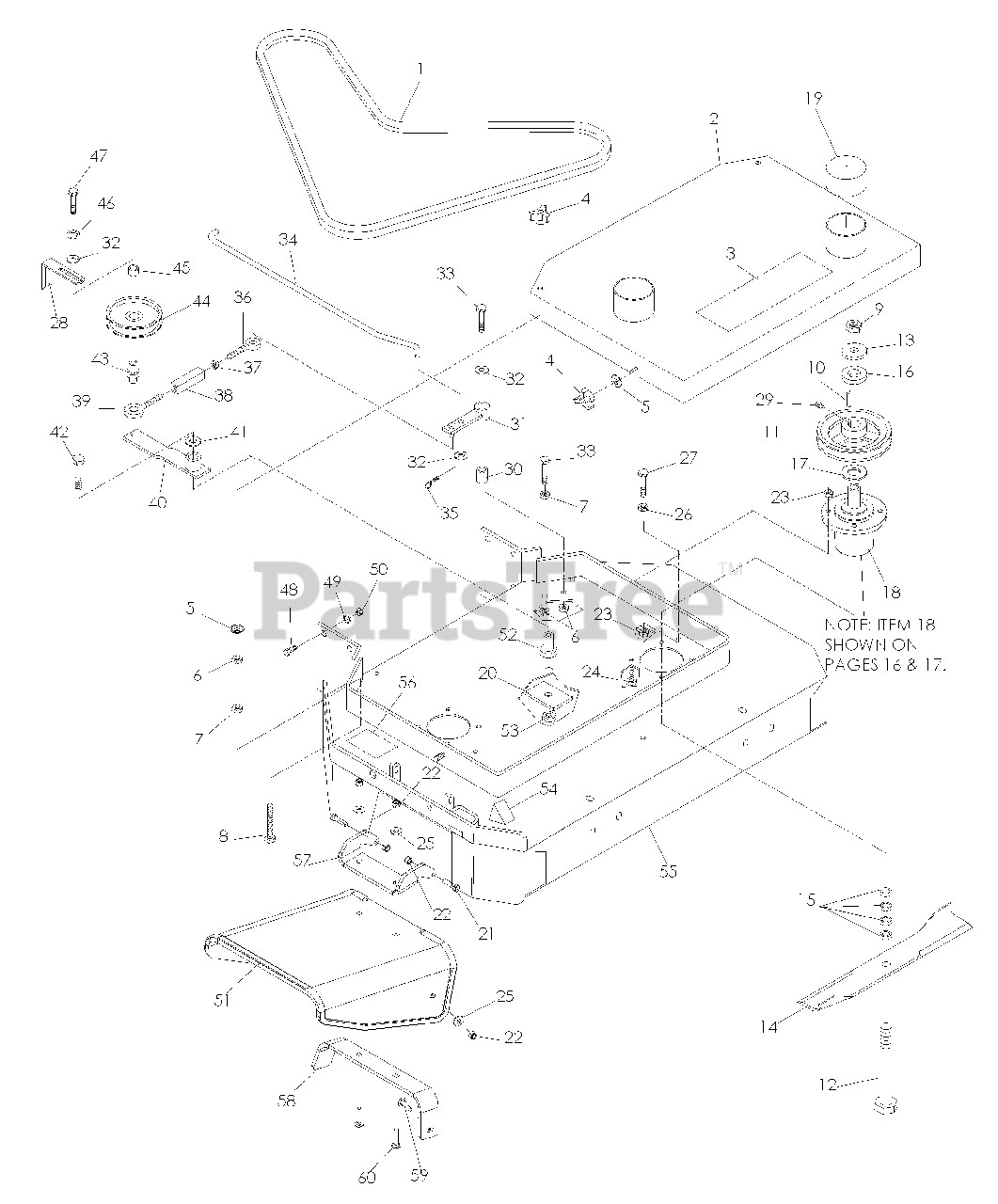

36 Inch Cutting Deck Parts Diagram

  • Title
1

Husqvarna 539101959

DECK BELT, 36"

$68.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539104561

BELT SHIELD, 36"

$242.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111047

DECAL, HUSQVARNA

$

$

Not available

4

Husqvarna 539102070

THREE PRONG KNOB

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 539102056

WASHER 3/8 SEALING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990546

HLN 3/8-16

$

$

Not available

7

Husqvarna 539990613

NUT 3/8-16 WHIZ

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102334

TAPBOLT 3/8-16 x 4 1/2

$3.99

$

Usually ships in 3-10 days

0

9

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539101995

KEY 1/4 SQ x 1 1/8

$

$

Not available

11

Husqvarna 539976398

PULLEY W/SETSCREWS

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102332

HCS 5/8-18 x 8 1/2

$

$

Not available

13

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

14

Husqvarna 539100341

BLADE 18" (36)

$

$

Not available

15

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

$

$

Not available

17

Husqvarna 539102675

BUSHING 10 GA

$10.99

$

In Stock, only 3 left!

0

18

Husqvarna 539102440

HOUSING, CUTTER
(Superseded to 539107418)

$

$

Not available

19

$7.99

$

In Stock, Qty 9

0

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990627

HCS, 5/16 -18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

22

Husqvarna 539990717

NUT, 5/16 -18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539990184

HLN 5/16-18

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539990585

HFLN 5/16-18

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990553

HCS 5/16-18 x 3

$5.99

$

In Stock, Qty 20+

0

28

$37.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539976956

SETSCREW 5/16 NYLOC

$

$

Not available

30

Husqvarna 539101836

SLEEVE BUSHING

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101979

ENGAGEMENT ARM

$62.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990517

FW 3/8 STD

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990629

HCS 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

34

$

$

Not available

35

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101982

EYEBOLT RH

$43.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990196

NUT 1/16-18

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101981

EYEBOLT LH

$13.99

$

Usually ships in 3-10 days

0

40

$103.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990550

FW 1/2 STD

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101332

HCS 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

43

Husqvarna 539101980

EYEBOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990118

LOCK WASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

47

Husqvarna 539990637

HCS 3/8-16 x 2 1/2

$1.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539101175

HCS 7/16-14 x 1 1/2

$3.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990247

LOCK WASHER 7/16

$

$

Not available

50

Husqvarna 539990449

NUT 7/16-14

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539130903

DEFLECTOR CHUTE

$60.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539101331

HLN 1/2-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

54

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 539104563

36" DECK W/DECALS

$

$

Not available

56

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

57

Husqvarna 539130916

PIVOT BRACKET

$36.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539130922

BRACKET, REINFORCE

$

$

Not available

59

Husqvarna 539100472

RHSNB, 5/16 -18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 539102933

RHSNB, 5/16 -18 x 1 1/2

$

$

Not available
