WG 3213 P (968999114) - Husqvarna 32" Walk-Behind Mower (2008-06) 32/36" Cutting Deck Parts Diagram

32" Walk-Behind Mower

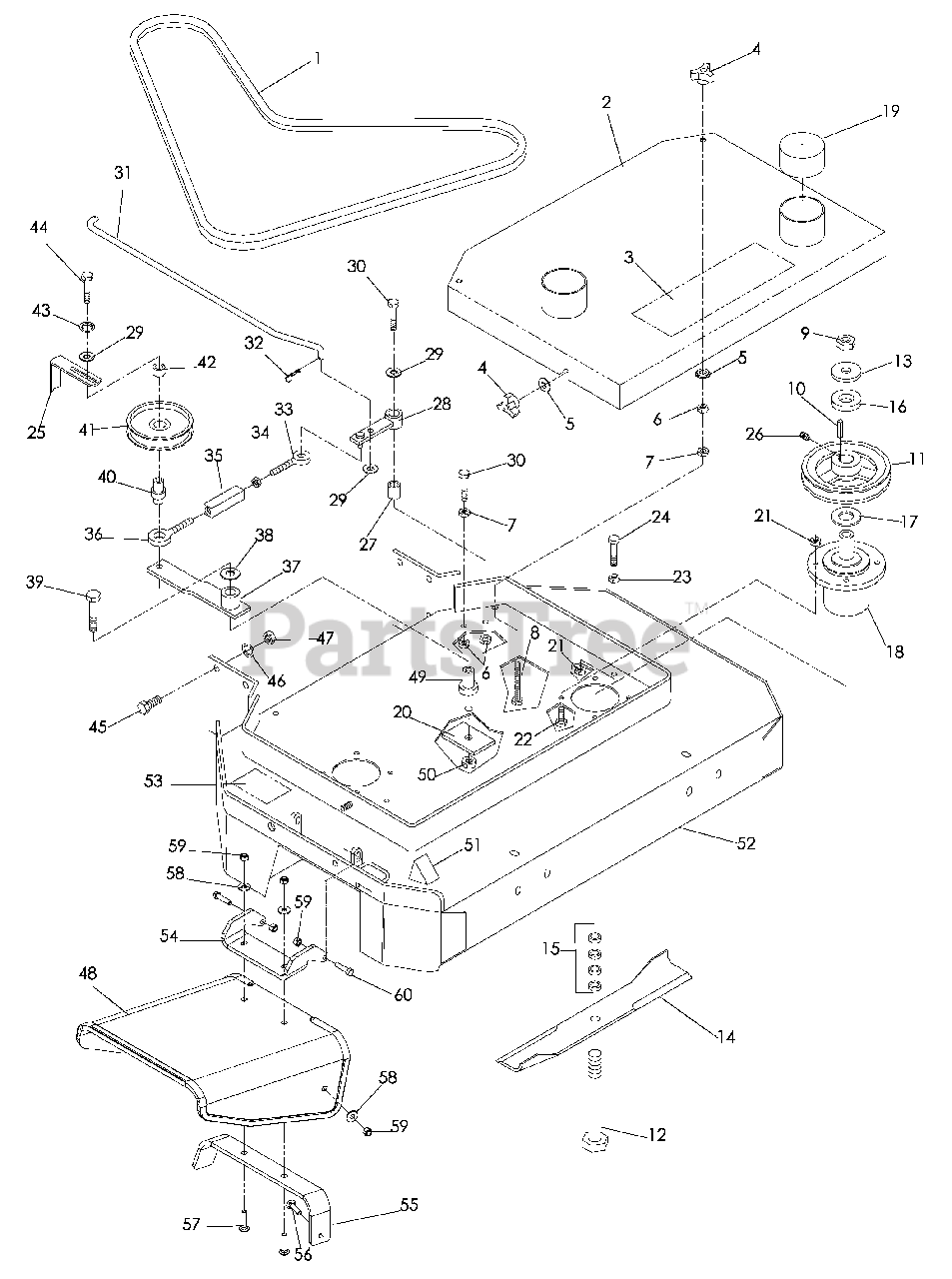

32/36" Cutting Deck Parts Diagram

  • Title
1

Husqvarna 539101959

36" DECK BELT

$68.99

$

Usually ships in 3-10 days

0

Husqvarna 539102148

32" DECK BELT

$

$

Not available

2

Husqvarna 539104561

36" BELT SHIELD

$242.99

$

Usually ships in 3-10 days

0

Husqvarna 539104650

32" BELT SHIELD

$169.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539111047

DECAL, HUSQVARNA

$

$

Not available

4

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0

5

Husqvarna 539102056

WASHER 3/8, SEALING

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990546

NUT 3/8-16 CENTERLOCK

$

$

Not available

7

Husqvarna 539990613

NUT 3/8 -16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102334

TAPBOLT 3/8 -16 x 4½

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976980

NUT 5/8-18

$3.99

$

In Stock, only 3 left!

0

10

Husqvarna 539101995

KEY ¼ SQ x 11/8

$

$

Not available

11

Husqvarna 539976398

PULLEY W/SETSCREWS

$60.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102332

HCS 5/8-18 x 8½

$

$

Not available

13

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available

14

Husqvarna 539100341

BLADE 18"(36)

$

$

Not available

Husqvarna 539100340

BLADE 16¼"(32)

$26.99

$

In Stock, only 3 left!

0

15

Husqvarna 539976436

BLADE SPACERS

$3.99

$

In Stock, Qty 16

0

$

$

Not available

17

Husqvarna 539102675

BUSHING 10 GA

$10.99

$

In Stock, only 3 left!

0

18

Husqvarna 539107418

HOUSING ASSM

$

$

Not available

19

Husqvarna 539102320

TUBE CAP PAD (NOT USED 32")

$7.99

$

In Stock, Qty 9

0

20

Husqvarna 539102236

NUT 5/16-18

$27.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990184

HCS 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990209

NUT 5/16-18 WHIZLK

$1.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539990585

HCS 5/16-18 x 3

$3.99

$

Usually ships in 3-10 days

0

24

$5.99

$

In Stock, Qty 20+

0

25

Husqvarna 539100075

SETSCREW 5/16 NYLOC

$37.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539976956

SLEEVE BUSHING

$

$

Not available

27

Husqvarna 539101836

ENGAGEMENT ARM

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539101979

WASHER 3/8

$62.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990629

HCS 3/8 -16 x 2¼
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102048

BLADE ROD 32 & 36

$

$

Not available

32

Husqvarna 539976988

COTTER HAIRPIN, #2

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990196

NUT 5/16-18

$1.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539101983

TURNBUCKLE

$14.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539101981

EYEBOLT, LH

$13.99

$

Usually ships in 3-10 days

0

37

$103.99

$

Usually ships in 3-10 days

0

38

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101332

HCS ½-13 x 2¾

$5.99

$

In Stock, only 3 left!

0

40

Husqvarna 539101980

EYEBOLT PIVOT

$17.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539990118

LOCKWASHER 3/8
(Superseded to 596238701)

$4.99

$

In Stock, Qty 15

0

44

Husqvarna 539990637

HCS 3/8 -16 x 2½

$1.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539101175

HCS 7/16-14 x 1½

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

47

Husqvarna 539990449

NUT 7/16-14

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539130903

CHUTE, RUBBER

$60.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539101231

IDLER SPINDLE

$13.99

$

Usually ships in 3-10 days

0

50

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

52

Husqvarna 539104563

DECK, 36" W/DECALS

$

$

Not available

Husqvarna 539104620

DECK, 32" W/DECALS

$

$

Not available

53

Husqvarna 539105746

DECAL, DANGER

$3.99

$

In Stock, only 3 left!

0

54

Husqvarna 539130916

PIVOT BRACKET

$36.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539130922

REINFORCE BRACKET

$

$

Not available

56

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

58

Husqvarna 539990692

WASHER 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

59

Husqvarna 539990717

NUT 5/16-18 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

60

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0
