WEY 12542 A - Weed Eater Lawn Tractor (1993) 12.5HP 42" TRACTOR-TRANSAXLE Parts Diagram

Lawn Tractor

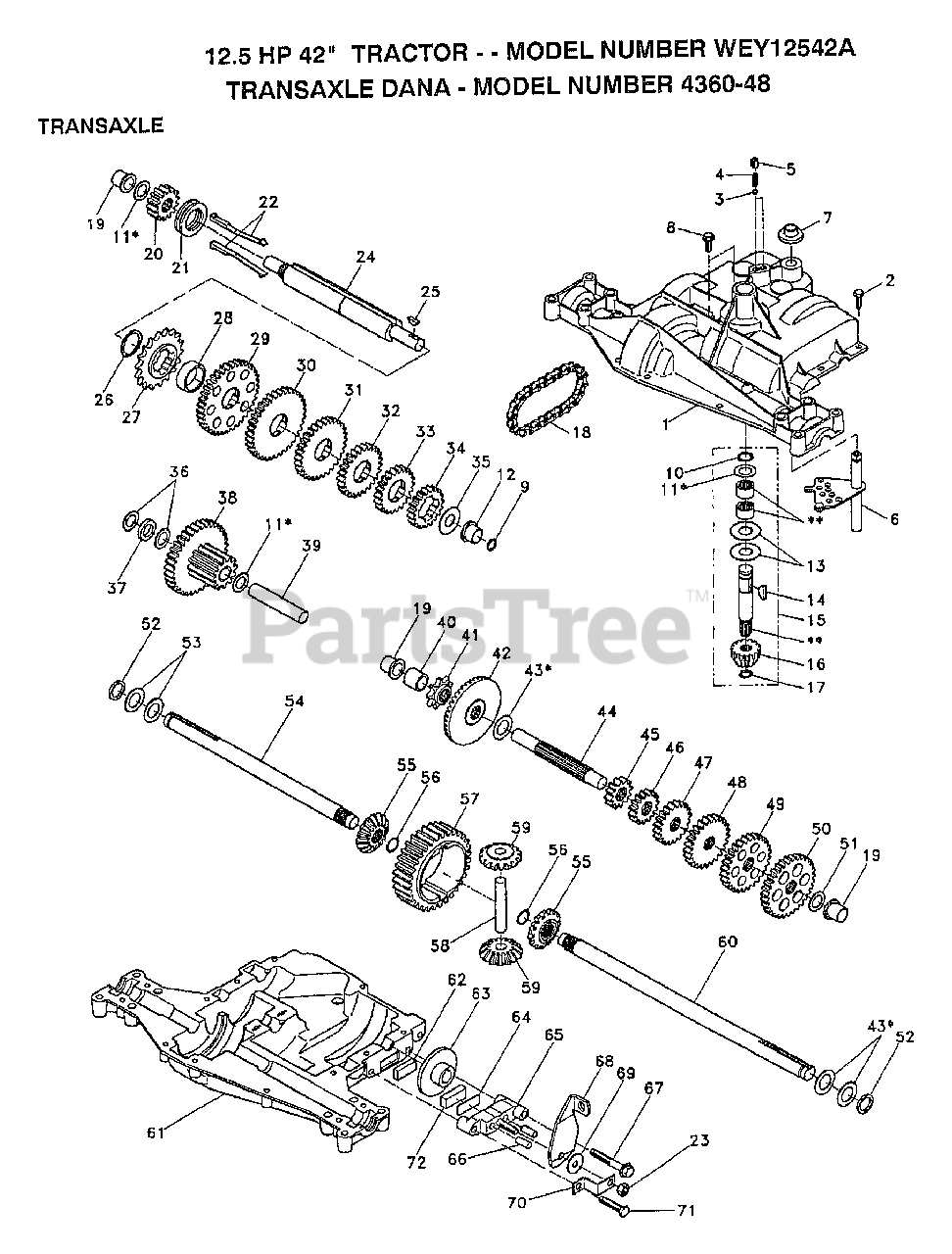

12.5HP 42" TRACTOR-TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 138248

SUB= 160951
(Superseded to 582997301)

$236.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 2274J

SUB= 74760412

$

$

Not available

3

$

$

Not available

4

Electrolux/AYP 105904X

"SPRING, DETENT LT"
(Superseded to 583647001)

$

$

Not available

5

Electrolux/AYP 105905X

"SCREW, SET LT"
(Superseded to 583647101)

$

$

Not available

6

Electrolux/AYP 138235

KIT SHIFTER ASM
(Superseded to 532134788)

$

$

Not available

7

Electrolux/AYP 134399

SHIFTER BOOT

$

$

Not available

8

Electrolux/AYP 134791

SCREW TAP W/SEAL

$

$

Not available

9

Electrolux/AYP 138241

SQUARE RING
(Superseded to 582972401)

$

$

Not available

10

Electrolux/AYP 2267J

RETAINING RING LT
(Superseded to 812000028)

$7.49

$

In Stock, Qty 8

0

11

Electrolux/AYP 134793

ASM KIT SHIM 4689
(Superseded to 532134793)

$

$

Not available

12

Electrolux/AYP 138240

"FLANGE, BEARING"
(Superseded to 148268)

$

$

Not available

13

Electrolux/AYP 120415X

WASHER T
(Superseded to 532120415)

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 2257J

WOODRUFF KEY

$

$

Not available

15

Electrolux/AYP 138234

AS KIT INPUT SHFT
(Superseded to 167148)

$

$

Not available

16

Electrolux/AYP 110078X

PINION 14T T
(Superseded to 167148)

$

$

Not available

17

Electrolux/AYP 105909X

"RING,RETAINING LT"
(Superseded to 583647301)

$5.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 105910X

"CHAIN,24 PTCH LT"
(Superseded to 532105910)

$

$

Not available

19

Electrolux/AYP 105911X

BEARING.FLNG.5510
(Superseded to 532105911)

$

$

Not available

20

Electrolux/AYP 138242

GEAR SPUR 14T
(Superseded to 582954001)

$

$

Not available

21

Electrolux/AYP 138246

COLLAR CLUTCH
(Superseded to 582954101)

$36.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 138236

ASM KIT CLTCH KEY
(Superseded to 532138236)

$

$

Not available

23

Electrolux/AYP 73810500

NUT.LOCK.5/16-24
(Superseded to 873810500)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 138243

SHAFT INTERM

$

$

Not available

25

Electrolux/AYP 2244J

WOODRUFF KEY

$

$

Not available

26

Electrolux/AYP 105916X

"RING,RETAINING LT"
(Superseded to 532105916)

$2.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 120470X

SPROCKET 18T T
(Superseded to 532120470)

$

$

Not available

28

Electrolux/AYP 110070X

SPACER YT
(Superseded to 583658801)

$7.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 108977X

KIT.GEAR.12/37TH
(Superseded to 583656701)

$51.99

$

Usually ships in 3-10 days

0

30

$

$

Not available

31

Electrolux/AYP 120405X

SUB= 124644X

$

$

Not available

32

Electrolux/AYP 108980X

GEAR 25T LT
(Superseded to 583656801)

$46.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 120406X

GEAR SPUR 22 TT
(Superseded to 583662001)

$26.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 134796

SPUR GEAR 19T
(Superseded to 584444901)

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 105925X

"WASHER, PLAIN LT"
(Superseded to 583647501)

$

$

Not available

36

Electrolux/AYP 2232J

WASHER 025
(Superseded to 532002232)

$

$

Not available

37

Electrolux/AYP 108978X

SPACER
(Superseded to 532108978)

$

$

Not available

38

Electrolux/AYP 110079X

ASSM GEAR COMB
(Superseded to 532110079)

$

$

Not available

39

Electrolux/AYP 124639X

SHAFT IDLER
(Superseded to 532124639)

$36.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 120472X

SPACER T
(Superseded to 583663001)

$6.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 105928X

SPROCKET 9T LT
(Superseded to 532105928)

$

$

Not available

42

Electrolux/AYP 110084X

SUB= 167148
(Superseded to 167148)

$

$

Not available

43

Electrolux/AYP 134394

ASM KIT SHIM
(Superseded to 532134394)

$

$

Not available

44

Electrolux/AYP 120473X

SHAFT T
(Superseded to 583663101)

$

$

Not available

45

Electrolux/AYP 105933X

SUB= 108977X

$

$

Not available

46

$

$

Not available

47

Electrolux/AYP 120407X

SUB= 124641X

$

$

Not available

48

Electrolux/AYP 106589X

"GEAR, SPUR 25T LT"
(Superseded to 583651701)

$33.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 120408X

GEAR 28T T
(Superseded to 583662101)

$47.99

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 105937X

"GEAR, SPUR 31T LT"

$38.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 2226J

WASHER 060
(Superseded to 583728901)

$

$

Not available

52

Electrolux/AYP 134401

NEOPRENE WASHER
(Superseded to 532134401)

$

$

Not available

53

Electrolux/AYP 2264J

WASHER 031
(Superseded to 583729701)

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 120474X

SUB= 154658
(Superseded to 532154658)

$132.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 110081X

GEAR 15T T
(Superseded to 532169651)

$

$

Not available

56

Electrolux/AYP 105941X

"RING,RETAINING LT"
(Superseded to 583647801)

$

$

Not available

57

Electrolux/AYP 110071X

SUB= 120478X

$

$

Not available

58

Electrolux/AYP 120952X

SHAFT T
(Superseded to 583663901)

$17.99

$

Usually ships in 3-10 days

0

59

Electrolux/AYP 110082X

GEAR 1ST T
(Superseded to 532169651)

$

$

Not available

60

Electrolux/AYP 120475X

SUB= 154659
(Superseded to 582982401)

$265.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 138247

SUB= 160951
(Superseded to 582997301)

$236.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 120961X

PUCK T
(Superseded to 532120961)

$

$

Not available

63

Electrolux/AYP 7294J

BRAKE DISC. T
(Superseded to 532007294)

$

$

Not available

64

Electrolux/AYP 108989X

SPACER LT
(Superseded to 532108989)

$

$

Not available

65

Electrolux/AYP 120953X

SUB= 918120953X
(Superseded to 532164670)

$

$

Not available

66

Electrolux/AYP 120954X

PIN T
(Superseded to 532120954)

$

$

Not available

67

$4.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 138244

SUB= 108992X
(Superseded to 532108992)

$

$

Not available

69

Electrolux/AYP 108996X

WASHER LT
(Superseded to 583657101)

$6.99

$

In Stock, Qty 9

0

$2.49

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 106596X

"SCREW, TAPPING LT"

$

$

Not available

72

Electrolux/AYP 120951X

PUCK T
(Superseded to 532120951)

$

$

Not available

73

Electrolux/AYP 120416X

SUB= 126976X

$

$

Not available
