WEY 12542 A - Weed Eater Lawn Tractor (1993) 12.5HP 42" TRACTOR-42" MOWER DECK Parts Diagram

Lawn Tractor

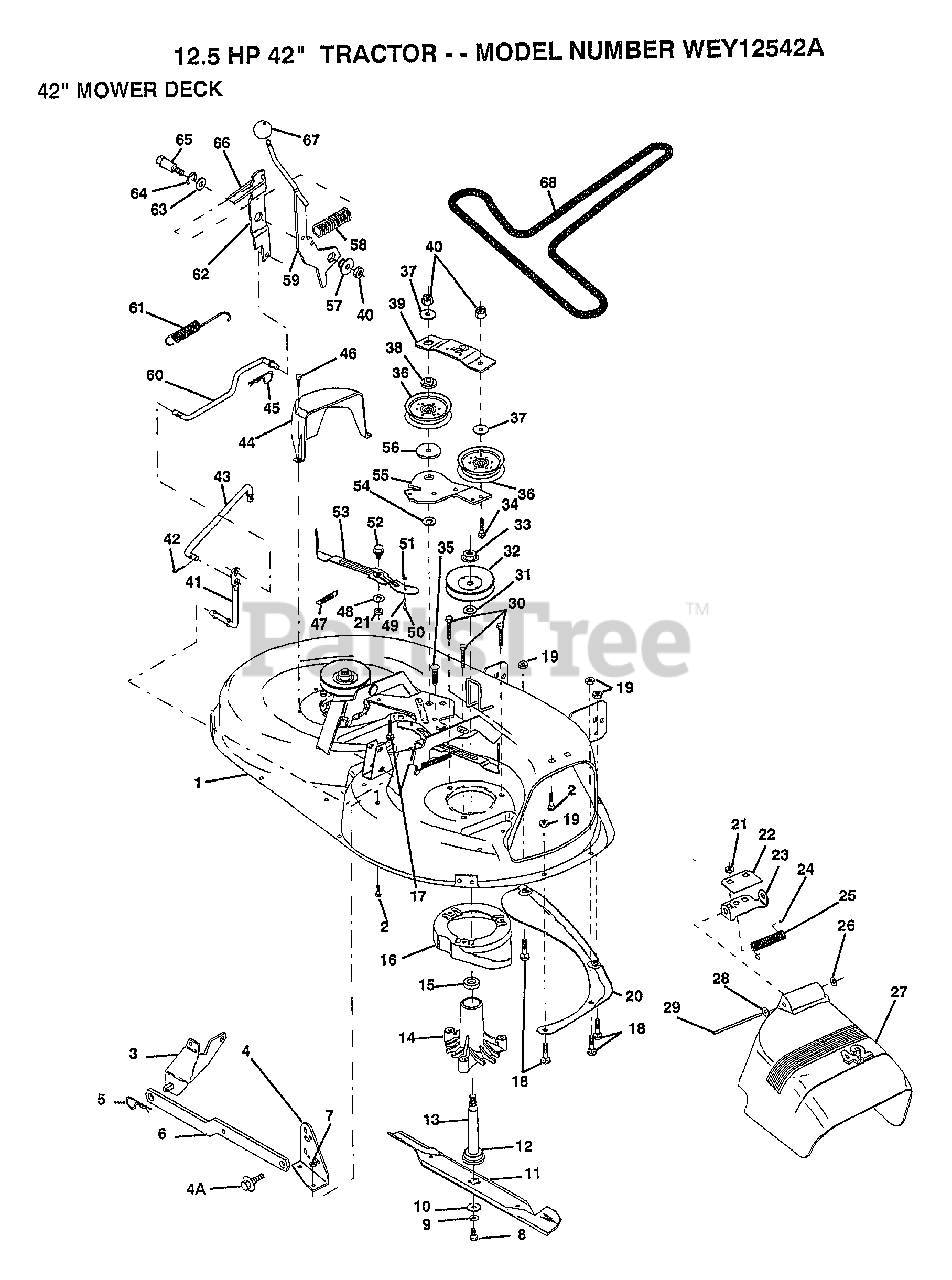

12.5HP 42" TRACTOR-42" MOWER DECK Parts Diagram

  • Title
1

Electrolux/AYP 138024

SUB= 145338

$

$

Not available

2

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 138017

BRKT ASM SWAY BAR
(Superseded to 532138017)

$12.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 138440

BRKT DECK SW BAR
(Superseded to 532138440)

$6.49

$

Usually ships in 3-10 days

0

4A

Electrolux/AYP 132827

BOLT SHD 5/16-18
(Superseded to 532132827)

$

$

Not available

5

Murray 4939M

SUB= 85902

$

$

Not available

6

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

7

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 850857

BLADE BOLT
(Superseded to 532850857)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 10030600

SUB= 10040600
(Superseded to 810030600)

$

$

Not available

10

Electrolux/AYP 129962

WASHER BLADE
(Superseded to 532140296)

$6.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 138498

"BLADE.42"" HIPERF"
(Superseded to 532138971)

$20.99

$

In Stock, Qty 20+

0

12

Electrolux/AYP 129895

BEARING.BALL
(Superseded to 532129895)

$17.99

$

In Stock, only 2 left!

0

13

Electrolux/AYP 137645

SUB= 137646
(Superseded to 532137645)

$34.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 128774

HSG ASM MANDREL
(Superseded to 532128774)

$34.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 110485X

BEARING
(Superseded to 532110485)

$13.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 136929

SUB= 140329

$

$

Not available

17

Electrolux/AYP 72110618

BOLT CARRIAGE
(Superseded to 872110618)

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 72140505

BOLT
(Superseded to 872140505)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

20

Electrolux/AYP 136888

SUB= 918136888
(Superseded to 532159770)

$

$

Not available

21

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 134753

STIFFENER BRKT
(Superseded to 532177563)

$

$

Not available

23

Electrolux/AYP 131267

DEFLECTOR BRKT
(Superseded to 532177563)

$

$

Not available

24

Electrolux/AYP 105304X

CAP-SLEEVE LT
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 123713X

SPRING TORSION
(Superseded to 532123713)

$7.99

$

In Stock, only 3 left!

0

26

Electrolux/AYP 110452X

NUT PUSH M
(Superseded to 532110452)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 130968

DEFLECTOR.SHIELD
(Superseded to 532130968)

$39.99

$

In Stock, Qty 12

0

28

Electrolux/AYP 19111016

WASHER
(Superseded to 819111016)

$3.99

$

In Stock, Qty 18

0

29

Electrolux/AYP 131491

HINGE ROD
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 78158

SUB= 17580520

$

$

Not available

31

Electrolux/AYP 129963

WASHER
(Superseded to 532187690)

$4.99

$

In Stock, only 2 left!

0

32

Electrolux/AYP 129861

SUB= 153535
(Superseded to 532129861)

$

$

Not available

33

Electrolux/AYP 137266

SUB= 139729
(Superseded to 532139729)

$9.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 72110614

BOLT
(Superseded to 872110614)

$4.99

$

In Stock, only 1 left!

0

35

Electrolux/AYP 133835

XMAS TREE FASTNER
(Superseded to 532133835)

$7.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 7

0

37

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 133502

RETAINER SPACER
(Superseded to 532133502)

$6.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 133503

IDLER ARM STIFF
(Superseded to 532133503)

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 133551

PIVOT ROD
(Superseded to 532133551)

$8.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 76020312

SUB= 3145
(Superseded to 539003145)

$133.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 133504

CLUTCH ROD SECOND
(Superseded to 532133504)

$

$

Not available

44

Electrolux/AYP 134236

SUB= 140088

$

$

Not available

45

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 137729

SCREW.1/4-20X5/8
(Superseded to 532137729)

$4.99

$

In Stock, Qty 20+

0

47

Electrolux/AYP 131335

SPRING EXTENSION
(Superseded to 532179748)

$5.99

$

In Stock, Qty 11

0

48

Electrolux/AYP 133944

HARD SMALL WASHER
(Superseded to 532133944)

$6.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 133940

SUB= 151785
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 131340

SHOULDER BOLT
(Superseded to 532131340)

$

$

Not available

51

Electrolux/AYP 69180

LOCKNUT
(Superseded to 532069180)

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 131845

BRAKE PAD ARM ASM
(Superseded to 532184907)

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 133943

HARDENED WASHER
(Superseded to 532178515)

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 133844

IDLER ARM
(Superseded to 532151785)

$40.99

$

In Stock, only 1 left!

0

56

Electrolux/AYP 122052X

SPACER RETAINER
(Superseded to 532165723)

$6.99

$

In Stock, only 2 left!

0

57

Electrolux/AYP 127498

BUSHING
(Superseded to 532127498)

$

$

Not available

58

Electrolux/AYP 128759

SUB= 918128759
(Superseded to 532153701)

$

$

Not available

59

Electrolux/AYP 138003

LEVER.ASM.CLUTCH

$

$

Not available

60

Electrolux/AYP 134666

"ROD, CLUTCH PRIM"

$

$

Not available

61

Electrolux/AYP 131870

RETURN SPRING
(Superseded to 532131870)

$18.99

$

In Stock, only 1 left!

0

62

Electrolux/AYP 127847

CLUTCH ARM SECOND
(Superseded to 532127847)

$2.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 121748X

WASHER
(Superseded to 532121748)

$4.99

$

In Stock, Qty 10

0

64

Electrolux/AYP 12000029

RING
(Superseded to 812000029)

$4.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 128903

SHOULDER BOLT
(Superseded to 532128903)

$6.99

$

In Stock, only 2 left!

0

66

Electrolux/AYP 127845

SPRING KEEPER
(Superseded to 532127845)

$

$

Not available

67

Electrolux/AYP 132044

SUB= 532132044

$

$

Not available

68

Electrolux/AYP 130969

BELT-V.92.4.MWR
(Superseded to 532130969)

$30.99

$

Usually ships in 3-10 days

0

Electrolux/AYP 130794

MANDREL ASM
(Superseded to 532130794)

$56.99

$

In Stock, Qty 7

0

Electrolux/AYP 138358

SUB= 145411

$

$

Not available
