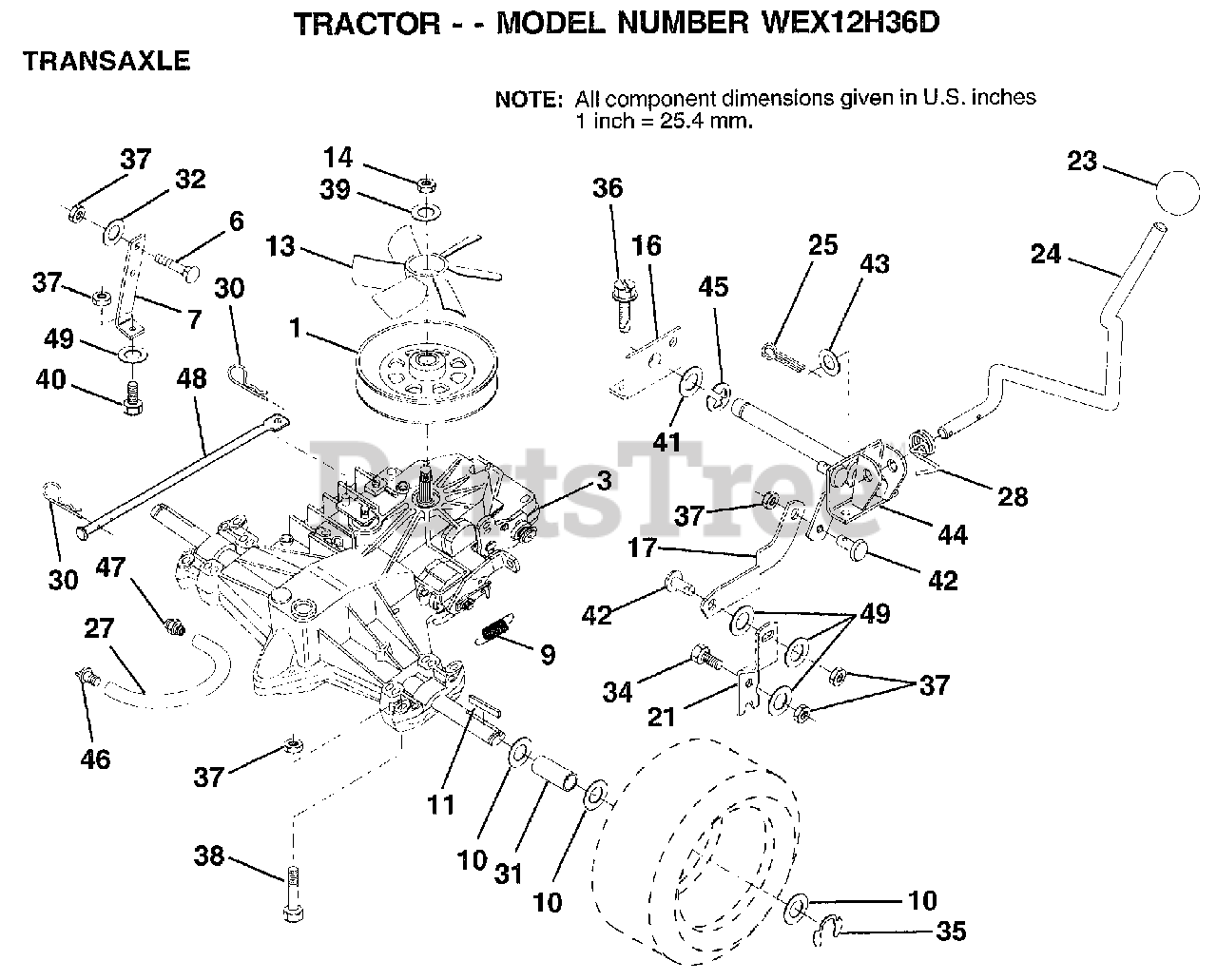

WEX 12H36 D - Weed Eater Lawn Tractor TRANSAXLE Parts Diagram

Lawn Tractor

TRANSAXLE Parts Diagram

  • Title
1

Electrolux/AYP 140779

PULLEY.V-GROOVE
(Superseded to 532140779)

$23.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

6

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 140774

STRAP.TORQUE.HYD
(Superseded to 532140774)

$

$

Not available

9

Electrolux/AYP 146682

SPRING.BRAKE.RETU
(Superseded to 532146682)

$8.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 121749X

WASHER
(Superseded to 532121749)

$3.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 123583X

SQUARE KEY
(Superseded to 532123583)

$4.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 140778

FAN.HYDRO.6FANS
(Superseded to 532140778)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 73750800

"LOCKNUT,1/2-20UNF"
(Superseded to 583612501)

$2.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 140763

SUPPORT.HDLE.SHFT
(Superseded to 532140763)

$

$

Not available

17

Electrolux/AYP 140767

LINK.SHIFT.HYD.LR
(Superseded to 532140767)

$

$

Not available

21

Electrolux/AYP 140773

LEVER.SHIFT.TRANS
(Superseded to 532140773)

$

$

Not available

23

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 140765

ROD.SHIFTER.HYD.
(Superseded to 532140765)

$26.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 142564

"LINE FUEL HYD 4"""
(Superseded to 532142564)

$6.49

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 140772

SPRING.TORSION.LR
(Superseded to 532140772)

$24.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

31

Electrolux/AYP 121199X

SPACER SPLIT
(Superseded to 532121199)

$

$

Not available

32

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 18

0

34

$

$

Not available

35

Electrolux/AYP 12000001

E-RING LT
(Superseded to 812000001)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

38

Electrolux/AYP 74490540

BOLT.HEX.FLGHD
(Superseded to 874490540)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

40

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 19212013

WASHER
(Superseded to 583609801)

$

$

Not available

42

Electrolux/AYP 140769

PIN.PIVOT.SHIFT.
(Superseded to 532140769)

$

$

Not available

43

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

44

Electrolux/AYP 156047

SHAFT.PIVOT.LR.

$10.99

$

Usually ships in 3-10 days

0

45

$

$

Not available

46-47

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

48

Electrolux/AYP 140912

ACTUATOR.BYPASS
(Superseded to 532140912)

$

$

Not available

49

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0
