WEX 12H36 D - Weed Eater Lawn Tractor GROUND DRIVE Parts Diagram

Lawn Tractor

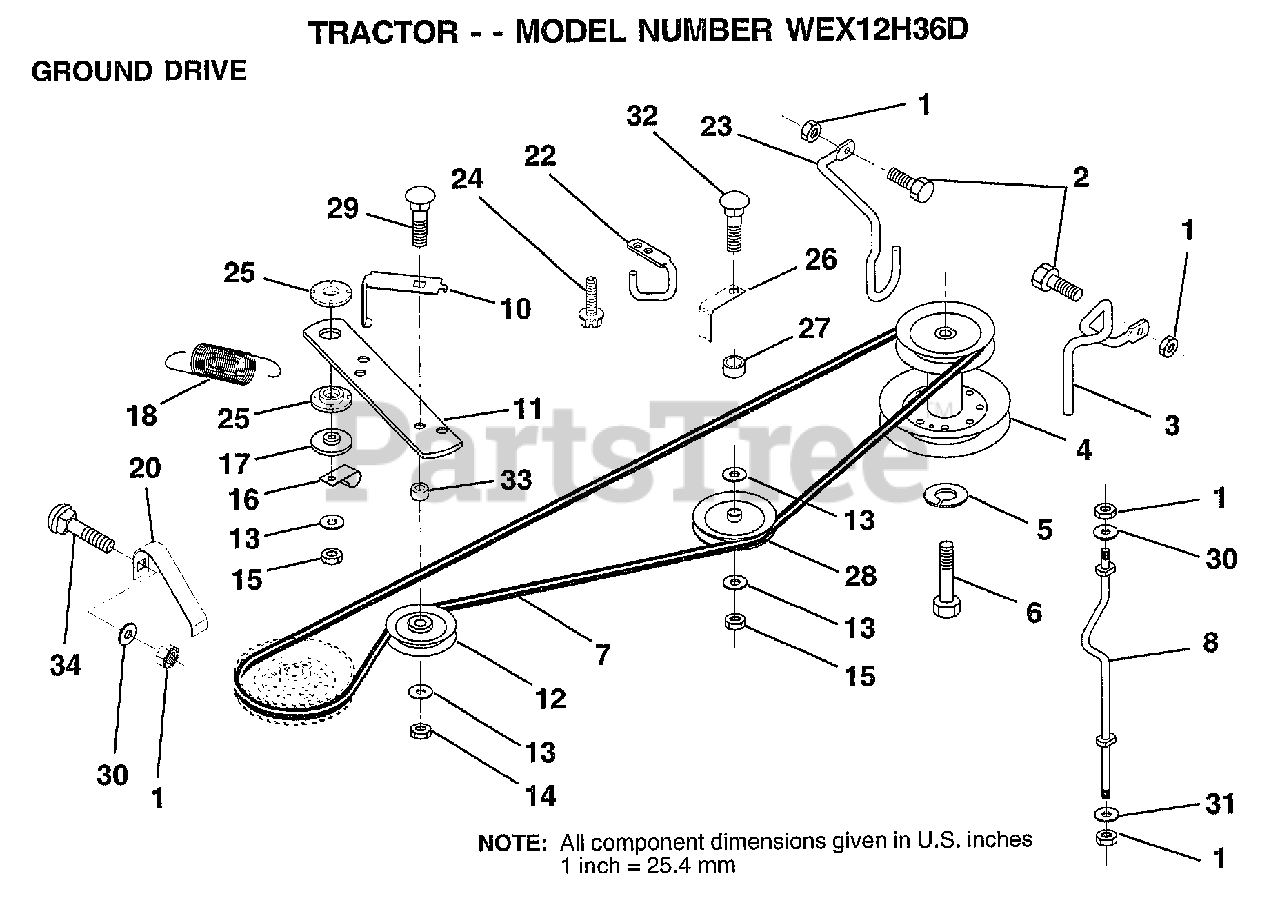

GROUND DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 73800500

NUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 141297

KEEPER.BELT.FRT.

$

$

Not available

4

Electrolux/AYP 138029

PULLEY.ENGINE.LR

$38.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 71170744

HEX BOLT
(Superseded to 871170744)

$2.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 140910

BELT-V.DRV.77.75
(Superseded to 532140910)

$72.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 140785

KEEPER.BELT.HYDRO
(Superseded to 532140785)

$

$

Not available

10

Electrolux/AYP 140780

KEEPER.BELT.GRD.
(Superseded to 532140780)

$

$

Not available

11

Electrolux/AYP 150926

ARM-IDLER.DR.GRND

$

$

Not available

12

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 73930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 126471X

"CLIP,INSULATOR"
(Superseded to 532126471)

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 150932

SPACER
(Superseded to 532150932)

$

$

Not available

18

Electrolux/AYP 131459

SUB= 532131459

$

$

Not available

20

Electrolux/AYP 140909

KEEPER.BELT.LH
(Superseded to 532140909)

$

$

Not available

22

Electrolux/AYP 123404X

"KEEPER,FRA DR BEL"
(Superseded to 532123404)

$

$

Not available

23

Electrolux/AYP 140916

KEEPER MOWER LH
(Superseded to 532140916)

$5.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 17720408

SCREW
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 150935

BUSHING.NYLON
(Superseded to 532150935)

$

$

Not available

26

Electrolux/AYP 140913

KEEPER.BELT.IDLER
(Superseded to 532140913)

$5.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 140914

SPACER.625X.843
(Superseded to 532140914)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 139123

PULLEY.IDLER.V.GR
(Superseded to 532139123)

$37.99

$

In Stock, only 1 left!

0

29

Electrolux/AYP 72140618

BOLT RDHD 3/8-16
(Superseded to 872110618)

$6.49

$

In Stock, only 2 left!

0

30

Electrolux/AYP 19111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

31

Electrolux/AYP 19111216

WASHER M
(Superseded to 819111216)

$0.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 72140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

33

Electrolux/AYP 160J

NLA
(Superseded to 532000160)

$

$

Not available

34

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0
