WELRVBA30 (960260001-01) - Weed Eater Lawn Tractor (2011-10) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

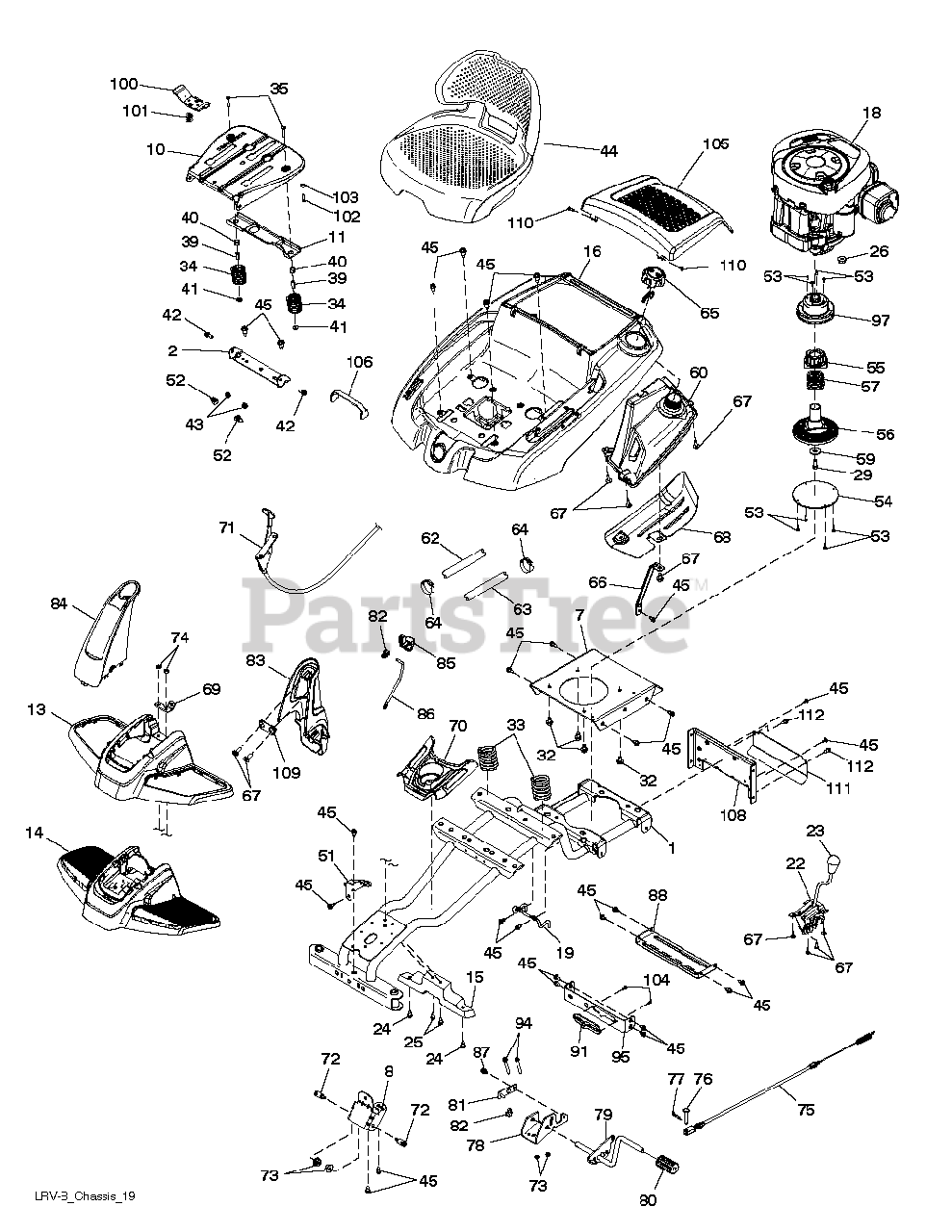

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Poulan 532436176

(Superseded to 583508401)

$250.99

$

Usually ships in 3-10 days

0

2

Poulan 532180166

BRKT.PIVOT.FENDER

$13.99

$

In Stock, only 1 left!

0

7

Poulan 532436177

(Superseded to 583508501)

$62.99

$

Usually ships in 3-10 days

0

8

Poulan 532436860

BRACKET.SUSP.CHAS.FR.LRV

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 532441805

PAN.ASM.SEAT.SHORT.SLD.ADJ.TEX

$56.99

$

Usually ships in 3-10 days

0

11

Poulan 532199370

BRKT.MNT.OPC.SW.SEAT.

$11.99

$

Usually ships in 3-10 days

0

13

Poulan 532442137

$

$

Not available

14

Poulan 532442075

FOOTREST.STRUCTURAL.

$109.99

$

Usually ships in 3-10 days

0

15

Poulan 532442069

SUPPORT. FOOTREST.LRV.MS428

$

$

Not available

16

Poulan 532439394

$

$

Not available

18

Poulan 000000000

Note: ENGINE BRIGGS MODEL 215807-1529-G1 (439273)

$

$

Not available

19

Poulan 532436861

$

$

Not available

22

Poulan 532442130

$

$

Not available

23

Poulan 532149846

KNOB.OVAL.CUSTOM.BLACK

$13.99

$

In Stock, only 1 left!

0

25

Poulan 872140424

BOLT.CARRIAGE

$5.99

$

Usually ships in 3-10 days

0

24

Poulan 532416358

SCREW.#10 X 0.750.BOS (2 2)
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

26

Poulan 873510400

NUT
(Superseded to 873640400)

$

$

Not available

29

Poulan 532438921

$

$

Not available

32

Poulan 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

33

Poulan 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

34

Poulan 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

35

Poulan 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

39

Poulan 532134300

SPACER SPLIT 28X.96

$7.49

$

Usually ships in 3-10 days

0

40

Poulan 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

41

Poulan 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

42

Poulan 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

43

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

44

Poulan 532436612

COMFORT.SEAT.ASSEMBLY

$206.99

$

Usually ships in 3-10 days

0

45

Poulan 817060512

SCREW 5/16"
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

51

Poulan 532428856

BRACKET, STEERING SUPPORT

$7.49

$

Usually ships in 3-10 days

0

52

Poulan 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

53

Poulan 532438562

SCREW.#10X.750 *SUBS/2*
(Superseded to 583533301)

$3.99

$

Usually ships in 3-10 days

0

54

Poulan 532436473

DISC.FRICTION.LRVB

$20.99

$

Usually ships in 3-10 days

0

55

Poulan 532435808

TORSION.BODY.UPPER

$

$

Not available

56

Poulan 532441925

TORQUE ASM.CONTROL.LOWER

$28.99

$

In Stock, only 1 left!

0

57

Poulan 532436479

SPRING.HELIX

$5.99

$

In Stock, Qty 9

0

59

Poulan 532199162

WASHER.1.5X.505X.118

$6.49

$

In Stock, only 2 left!

0

60

Poulan 532437856

LRVB.FUEL.TANK.ASSEMBLY.EPA
(Superseded to 532437801)

$121.99

$

Usually ships in 3-10 days

0

62

Poulan 532400414

(Superseded to 532401135)

$27.99

$

Usually ships in 3-10 days

0

63

Poulan 532414119

RP PURGE LINE
(Superseded to 587044580)

$11.99

$

In Stock, only 1 left!

0

64

Poulan 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

65

Poulan 532438596

CAP.2.25'.VENTED.RATCHET.EPA
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

66

Poulan 532436606

NO LONGER AVAILABLE
(Superseded to 583509701)

$6.99

$

Usually ships in 3-10 days

0

67

Poulan 532421756

SCREW.#10 X 0.500
(Superseded to 596434001)

$3.99

$

Usually ships in 3-10 days

0

68

Poulan 532439851

$22.99

$

Usually ships in 3-10 days

0

69

Poulan 532437427

(Superseded to 583519101)

$5.99

$

Usually ships in 3-10 days

0

70

Poulan 532442068

CONSOLE.CENTER.CUPHOLDER

$13.99

$

Usually ships in 3-10 days

0

71

Poulan 532437857

(Superseded to 583524501)

$62.99

$

Usually ships in 3-10 days

0

72

Poulan 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

73

Poulan 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

74

Poulan 873900400

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

75

Poulan 532436959

CABLE,BRAKE.LRVB

$

$

Not available

76

Poulan 877100812

PIN.CLEVIS

$6.49

$

In Stock, only 1 left!

0

77

Poulan 876020208

COTTER PIN

$

$

Not available

78

Poulan 532437056

(Superseded to 583515701)

$22.99

$

Usually ships in 3-10 days

0

79

Poulan 532437057

(Superseded to 583515801)

$11.99

$

Usually ships in 3-10 days

0

80

Poulan 532429693

COVER.PEDAL.BRAKE.LRV

$8.99

$

In Stock, only 1 left!

0

81

Poulan 532437374

(Superseded to 583518001)

$6.49

$

Usually ships in 3-10 days

0

82

Poulan 532169484

RETAINER CLIP
(Superseded to 596029401)

$4.99

$

In Stock, only 1 left!

0

83

Poulan 532439368

(Superseded to 583541801)

$

$

Not available

84

Poulan 532439291

$

$

Not available

85

Poulan 532437660

(Superseded to 583521701)

$6.49

$

Usually ships in 3-10 days

0

86

Poulan 532438762

(Superseded to 583534101)

$

$

Not available

87

Poulan 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

88

Poulan 532428110

STRAP.CROSS.FRICTION.DRIVE

$13.99

$

In Stock, only 1 left!

0

91

Poulan 532437401

(Superseded to 583518101)

$

$

Not available

94

Poulan 874490548

BOLT HEX FLGHD 5/16-18X3 GR. 5

$6.49

$

In Stock, only 1 left!

0

95

Poulan 532444271

(Superseded to 583574201)

$5.99

$

Usually ships in 3-10 days

0

97

Poulan 532436472

(Superseded to 583509201)

$42.99

$

Usually ships in 3-10 days

0

100

Poulan 532197661

HANDLE.SLIDE.SEAT.TEX.BLACK
(Superseded to 595088102)

$5.99

$

In Stock, Qty 7

0

101

Poulan 532198200

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 3-10 days

0

102

Poulan 874760612

BOLT

$4.99

$

In Stock, only 3 left!

0

103

Poulan 819133812

WASHER 13/32 X 2-3/8 X 12GA
(Superseded to 583789501)

$

$

Not available

104

Poulan 818101008

SCREW.TORX.#10-14X1/2

$4.99

$

Usually ships in 3-10 days

0

105

Poulan 532442134

MCCULLOCH.LRVB.ENGINE COVER

$

$

Not available

106

Poulan 532436834

STRAP.BATTERY.LRVB

$8.99

$

Usually ships in 3-10 days

0

108

Poulan 532437168

(Superseded to 583517101)

$39.99

$

Usually ships in 3-10 days

0

109

Poulan 532439008

(Superseded to 583537101)

$2.99

$

Usually ships in 3-10 days

0

110

Poulan 532422145

(Superseded to 583759801)

$

$

Not available

111

Poulan 532438171

(Superseded to 583527701)

$7.99

$

Usually ships in 3-10 days

0

112

Poulan 817720408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0
