WELRV1 (960260002-01) - Weed Eater Lawn Tractor (2011-01) STEERING Parts Diagram

Lawn Tractor

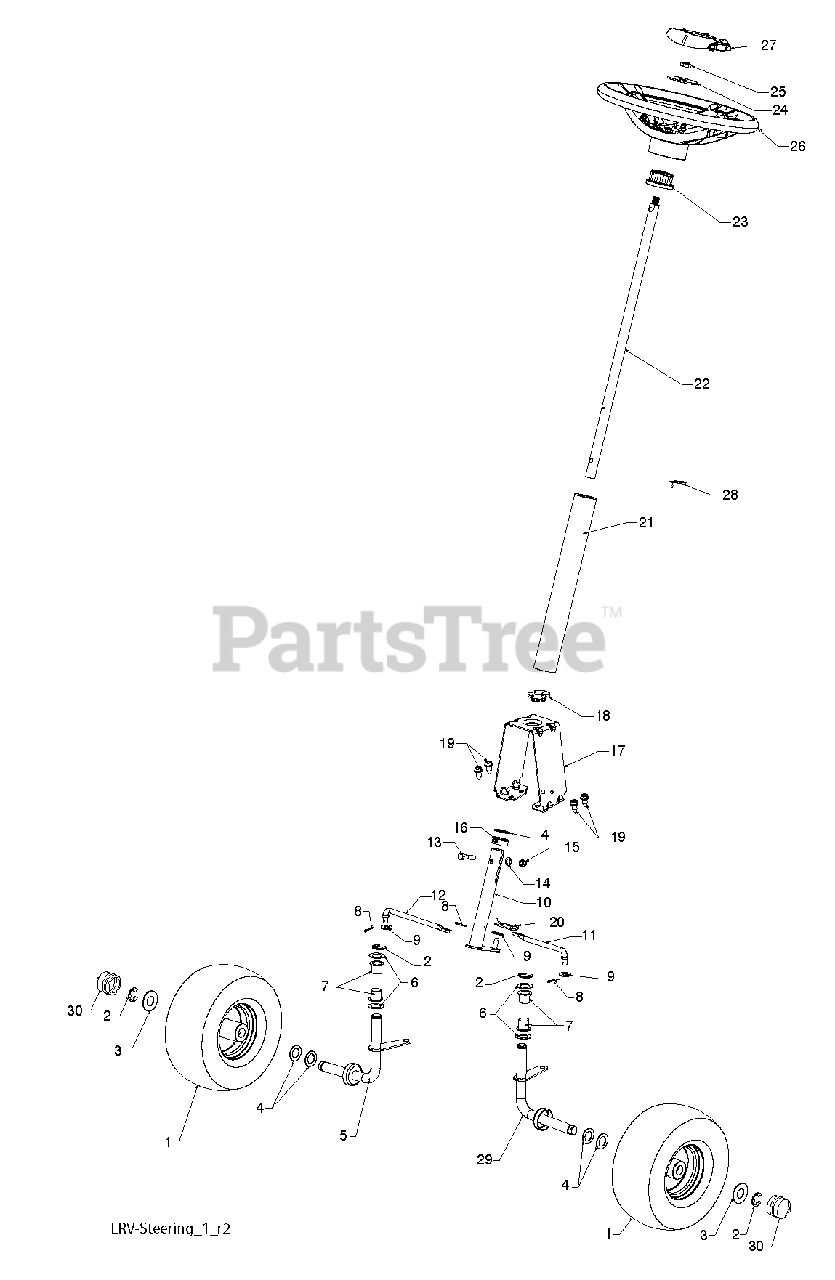

STEERING Parts Diagram

  • Title
1

Poulan 532436500

WHEEL.ASM.FRONT.LRV.10" GRAY
(Superseded to 581420601)

$

$

Not available

2

Poulan 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 532188967

WASHER.HARDENED

$4.99

$

In Stock, Qty 20+

0

4

$3.49

$

Usually ships in 3-10 days

0

5

Poulan 532435324

SPINDLE.STEERING.RH.LRVA

$31.99

$

Usually ships in 3-10 days

0

6

Poulan 532124931

(Superseded to 532006266)

$7.49

$

In Stock, Qty 8

0

7

Poulan 532124937

Steering Column Bearing
(Superseded to 532003366)

$4.99

$

In Stock, Qty 19

0

9

$6.49

$

In Stock, only 2 left!

0

10

Poulan 532428057

WELDMENT, LWR STRG SHAFT

$34.99

$

Usually ships in 3-10 days

0

11

Poulan 532428035

LINK, STRNG LH LRV

$

$

Not available

12

Poulan 532428036

LINK.STEERING.RH.LRV

$

$

Not available

13

Poulan 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

14

$6.49

$

In Stock, Qty 5

0

15

Poulan 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

16

Poulan 532428044

BUSHING, STEERING SNAP

$4.99

$

In Stock, only 1 left!

0

17

Poulan 532428252

SUPPORT, UPPER STEERING

$14.99

$

Usually ships in 3-10 days

0

18

Poulan 532195227

BUSHING,STEERING

$6.99

$

In Stock, Qty 11

0

19

Poulan 817000512

SCREW
(Superseded to 532428867)

$6.49

$

In Stock, Qty 6

0

20

Poulan 532428045

CLIP.SPRING.STEERINGG

$

$

Not available

21

Poulan 532428347

FOAM.SHAFT.STEERING

$20.99

$

Usually ships in 3-10 days

0

22

Poulan 532428213

SHAFT, STEERING

$

$

Not available

23

Poulan 532437747

STEERING.WHEEL.ADAPTER
(Superseded to 587738905)

$9.49

$

In Stock, Qty 6

0

24

Poulan 819183812

WASHER 9/16"ID, 2 3/8""OD

$9.49

$

Usually ships in 3-10 days

0

25

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

26

Poulan 532414851

RP WHEEL.STEER.STDSRXX.GRAY
(Superseded to 532441614)

$36.99

$

Usually ships in 3-10 days

0

27

Poulan 532414852

CAP, STEERING WHEEL
(Superseded to 532436502)

$341.99

$

Usually ships in 3-10 days

0

28

Poulan 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 8

0

29

Poulan 532435323

WELDMENT.SPINDLE.LH.LR

$27.99

$

Usually ships in 3-10 days

0

30

Poulan 532436499

CAP.HUB.AXLE.LRVA/B

$7.49

$

Usually ships in 3-10 days

0

31

$4.99

$

In Stock, only 4 left!

0
